Detector User Interface

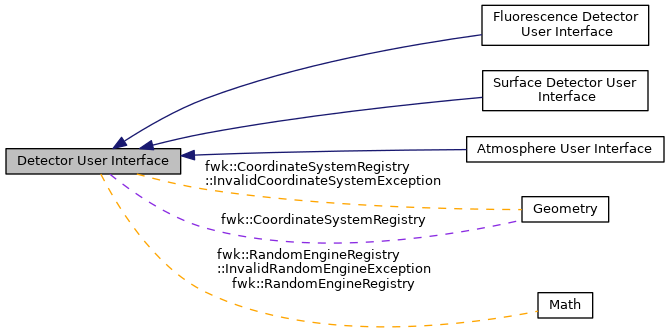

Collaboration diagram for Detector User Interface:

Classes
class	det::ComponentGroup< P, C, Creator, ManagerProvider >
	Base class for group of detector components. More...

class	det::Detector
	Top of the hierarchy of the detector description interface. More...

class	det::DetectorComponent< C, ManagerProvider >
	Base class for detector components. More...

class	fwk::CoordinateSystemRegistry::InvalidCoordinateSystemException
	Base class for exceptions in the CoordinateSystemRegistry. More...

class	fwk::RandomEngineRegistry::InvalidRandomEngineException
	Base class for exceptions in the RandomEngineRegistry. More...

class	det::MPositionable< Config >
	Mixin class to be inherited from objects that have a position. More...

class	fwk::RandomEngineRegistry
	Collection of pre-defined random engines. More...

class	sdet::StationTriggerAlgorithm
	Local station hardware (PLD) and software (T2) trigger algorithm. More...

Namespaces
	fwk::CoordinateSystemRegistry
	Collection of useful pre-defined coordinate systems.

Modules
	Fluorescence Detector User Interface

	Surface Detector User Interface

	Atmosphere User Interface

Detailed Description

Introduction

The Detector User Interface allows you to request information about the configuration and performance of the detector at a particular time.This interface is designed to:

Provide a single, convenient to use interface to access non-event data such as detector configuration, calibration parameters, detector performance, and atmospheric properties.
Support retrieving data which may be stored in various formats via a single unified interface.
Consolidate detector information in one place. This is meant to strongly discourage hardwiring numbers in the code, or keeping detector data in private configuration files. It is much easier to compare physics modules when they are taking information from the same data sources.
Provide a reasonable level of efficiency and speed of data access by employing various caching strategies.

Basics of using the detector interface

The Detector interface is a collection of classes organized with the hierarchy one normally associates with the Auger detector instruments. To retrieve information from the detector, you first get an instance of the det::Detector object, which sits at the top of the detector hierarchy:

const det::Detector& detector = det::Detector::GetInstance();

You may wonder why this is done using a static method (called GetInstance()), rather than by simply creating a Detector object on the heap or stack in the usual way. The reason is that the Detector is implemented as a utl::Singleton, which is simply a trick to ensure that only one instance of it ever exists. The GetInstance() method then takes care of creating the det::Detector if it does not exist yet, or just returning a reference to it in case it has already exists.From the det::Detector, you can then navigate to the detector component you are interested in. For example:

const sdet::Station& station221 = detector.GetSDetector().GetStation(221);

It is important to notice that on the left-hand side of the expression, station221 is retrieved as a const reference. This is done to guarantee that only one instance of this detector component exists, and that you cannot alter it. A detector component is always created by its parent component, not by the user. In this way, each component is automatically created with all of the information needed to uniquely identify it so that it can locate the correct detector description data pertaining to it. In fact, the detector interface is implemented in such a way that you cannot violate these rules, even if you want to. For instance, the following code won't compile:

// The left-hand side of this expression attempts to create a copy of the sdet::Station. It won't compile.

sdet::Station station221 = detector.GetSDetector().GetStation(221);

Once you have the component of interest, you can retrieve information about it from its accessors (or 'getters'):

// Get the position of station 221
utl::Point = station221.GetPosition();
// Get the water absorption length (eg. for simulation) vs wavelength
utl::TabulatedFunction w = station221.GetWaterAbsorptionLength();
// Get a pointer to the station's local coordinate system
utl::CoordinateSystemPtr stationCS = station221.GetLocalCoordinateSystem();

Note that the left-hand sides of the expressions using these data accessors need not be references, as in the previous example. You are allowed to make copies of the actual detector data, just not the detector components which are responsible for retrieving that data.There are some shortcuts built into the detector interface to make it easier to get the detector components you want. For instance, if you have an sevt::Station, you can use it to get the corresponding sdet::Station:

sevt::SEvent& sevent = theEvent.GetSEvent();  // theEvent is an evt::Event
for (SEvent::ConstStationIterator sIt = sevent.StationsBegin();
     sIt != sevent.StationsEnd() ; ++sIt) {
  const sdet::Station& detStation =
        det::Detector::GetInstance().GetSDetector().GetStation(*sIt);
  // do something with the detector station
}

Upating the Detector time

The Detector interface is designed to retrieve time-dependent information about the detector configuration and performance. There is a method det::Detector::Update for setting the time:

det::Detector::Update(utl::TimeStamp time);

Of course, someone has to invoke this Update method. When reading real data, the detector time is normally set for you by the EventFileReaderOG::EventFileReader module. When running simulations, the EventGeneratorOG::EventGenerator module sets the detector time according to instructions in its configuration file. If you try to run an application in which for some reason the time is not set, it will default to 0. In such a case, you may see an error message like this when trying to retrieve data:

SDetector::SDetector.cc::111: GetStation: Station with Id = 221 is not commissioned at
detector time = 00:00:00 06 Jan 1980 (UTC), 0 (GPS sec), 0 (GPS nsec)

6 January 1980 is just the beginning of the GPS epoch, or GPS second = 0.

How data are stored and retrieved

In the section above, you will see from the examples that when retrieving information from the detector interface, you do not have to worry about where or how the data are stored. The detector interface takes care of this by relaying requests to a collection of so-called managers, which know how to retrieve the requested data. See the documentation on managers for more details.Generally detector data are stored either in XML files or in MySQL databases. The XML files with detector data are located in:

path-to-offline-install/share/auger-offline/config

For information on Offline databases, see the Non-event database pages.

Atmosphere data

The atm::Atmosphere part of the det::Detector implements some functionality not found in other parts of the detector description like sdet::SDetector and fdet::FDetector. For more information on the atmosphere, see the Atmosphere User Interface.
