Collaboration diagram for Atmosphere User Interface:
|
Classes | |
| class | atm::AerosolDB |
| Class for loading and storing a collection of aerosol data. More... | |
| class | atm::AerosolZone |
| Class for storing an hour's worth of aerosol data. More... | |
| class | atm::Atmosphere |
| Top of the interface to Atmosphere information. More... | |
| class | atm::AttenuationResult |
| Class describing the Atmospheric attenuation. More... | |
| class | atm::AttSlice |
| Attenuation data in a zone slice. More... | |
| class | atm::CloudResult |
| Store the obscuration of an FD pixel by a cloud in the field of view. More... | |
| class | atm::GOESDB |
| Detector description interface for GOES cloud data. More... | |
| class | atm::InclinedAtmosphericProfile |
| Provides translational services for inclined profile. More... | |
| class | atm::LidarDB |
| Detector description interface for LidarDB-realted data. More... | |
| class | atm::LidarZone |
| Cloud data for a Lidar zone. More... | |
| class | atm::MolecularDB |
| Detector description interface for data in the Atm_Molecular database. More... | |
| class | atm::MolecularLayer |
| Molecular data for a zone slice. More... | |
| class | atm::MolecularZone |
| class describing a molecular zone. More... | |
| class | atm::OverallQualityDB |
| Access to database describing overall atmospheric quality. More... | |
| class | atm::PFSlice |
| phase function data in a zone slice. More... | |
| class | atm::ProfileResult |
| Class describing the Atmospheric profile. More... | |
| class | atm::Quality |
| General information of atmosphere quality at a given time. More... | |
| class | atm::ScatteringResult |
| Class holding the output of the ScatteringResult function. More... | |
| class | atm::VAODSlice |
| VAOD data in a lidar zone slice. More... | |
| class | atm::VZone |
| Base class for Aerosol, Molecula, Overall Quality and Lidar atmosphere zones. More... | |
| class | atm::VZoneSlice |
| Base class for AttSlice and PFSlice. More... | |
Detailed Description

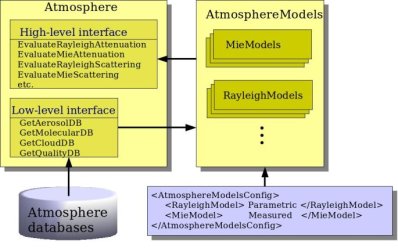

The detector interface provides access to data describing the atmosphere via the atm::Atmosphere class. The atm::Atmosphere provides two levels of access to atmosphere data, illustrated in the picture below:
The low-level interface provides direct access to quantities residing in the atmospheric monitoring databases. The high-level interface offers a collection of methods which can use data residing in various sources, including the atmospheric monitoring databases, to compute things like scattering and attenuation between points in the sky. The computations are carried out by atmosphere models, which are concrete implementations of the atm::VModel class. There may be several models available to calculate a particular quantity, using either different data sources or different techniques for doing the calculation. The particular model used to carry out a calculation is selectable via the atmosphere interface's configuration file, depicted in the figure in the gray box. Mode details on selecting atmosphere models can be found in the documentation describing atmosphere models.Examples of using both the high- and low-level atmosphere interfaces are available in the Tutorials area.
