atm::VModel Class Reference

Base class of atmospheric functions. More...

#include <VModel.h>

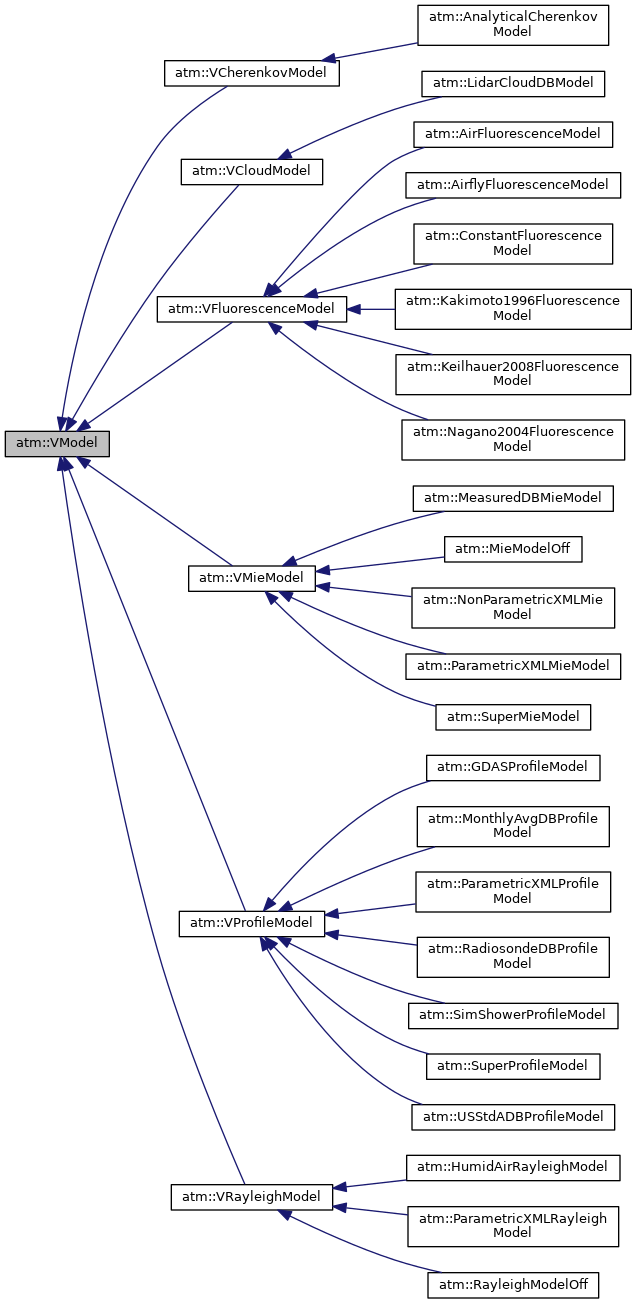

Inheritance diagram for atm::VModel:

Public Member Functions
virtual bool	HasData () const =0
	True if a data source is for the given model. More...
virtual void	Init ()=0
virtual void	SetUncertaintyBound (const double nSigma) const
	alter Model by nSigma standard deviations More...
virtual	~VModel ()

Protected Member Functions
	VModel ()

Private Attributes
unsigned int	fNSigmaCounter = 0

Detailed Description

Base class of atmospheric functions.

Author

Stefano Argiro'

Date

18 Jun 2003

Definition at line 35 of file VModel.h.

Constructor & Destructor Documentation

virtual atm::VModel::~VModel ( )

inlinevirtual

Definition at line 38 of file VModel.h.

atm::VModel::VModel ( )

inlineprotected

Definition at line 55 of file VModel.h.

Member Function Documentation

virtual bool atm::VModel::HasData ( ) const

pure virtual

True if a data source is for the given model.

This method is meant to be checked to determine whether the given model is able to find valid data to evaluate. Typically it will always be true for parametric models which rely on an XML file, and will be true or false for database-based models, depending on whether or not relevant data are found in the DB for the current detector time

Implemented in atm::SuperMieModel, atm::MeasuredDBMieModel, atm::MieModelOff, atm::RayleighModelOff, atm::LidarCloudDBModel, atm::ParametricXMLMieModel, atm::ParametricXMLRayleighModel, atm::HumidAirRayleighModel, atm::AnalyticalCherenkovModel, atm::SimShowerProfileModel, atm::NonParametricXMLMieModel, atm::GDASProfileModel, atm::RadiosondeDBProfileModel, atm::SuperProfileModel, atm::ParametricXMLProfileModel, atm::MonthlyAvgDBProfileModel, atm::AirflyFluorescenceModel, atm::Kakimoto1996FluorescenceModel, atm::Nagano2004FluorescenceModel, atm::USStdADBProfileModel, atm::ConstantFluorescenceModel, atm::Keilhauer2008FluorescenceModel, and atm::AirFluorescenceModel.

virtual void atm::VModel::Init ( )

pure virtual

Implemented in atm::MeasuredDBMieModel, atm::SuperMieModel, atm::MieModelOff, atm::RayleighModelOff, atm::LidarCloudDBModel, atm::HumidAirRayleighModel, atm::ParametricXMLRayleighModel, atm::ParametricXMLMieModel, atm::NonParametricXMLMieModel, atm::SimShowerProfileModel, atm::Kakimoto1996FluorescenceModel, atm::Nagano2004FluorescenceModel, atm::AirflyFluorescenceModel, atm::AnalyticalCherenkovModel, atm::GDASProfileModel, atm::RadiosondeDBProfileModel, atm::ConstantFluorescenceModel, atm::SuperProfileModel, atm::Keilhauer2008FluorescenceModel, atm::ParametricXMLProfileModel, atm::MonthlyAvgDBProfileModel, atm::AirFluorescenceModel, and atm::USStdADBProfileModel.

void VModel::SetUncertaintyBound ( const double  nSigma ) const

virtual

alter Model by nSigma standard deviations

Reimplemented in atm::MeasuredDBMieModel, and atm::SuperMieModel.

Definition at line 11 of file VModel.cc.

References ERROR.

Member Data Documentation

unsigned int atm::VModel::fNSigmaCounter = 0

mutableprivate

Definition at line 59 of file VModel.h.

---

The documentation for this class was generated from the following files:

• VModel.h
• VModel.cc
