det::DetectorComponent< C, ManagerProvider > Class Template Reference

Base class for detector components. More...

#include "det/DetectorComponent.h"

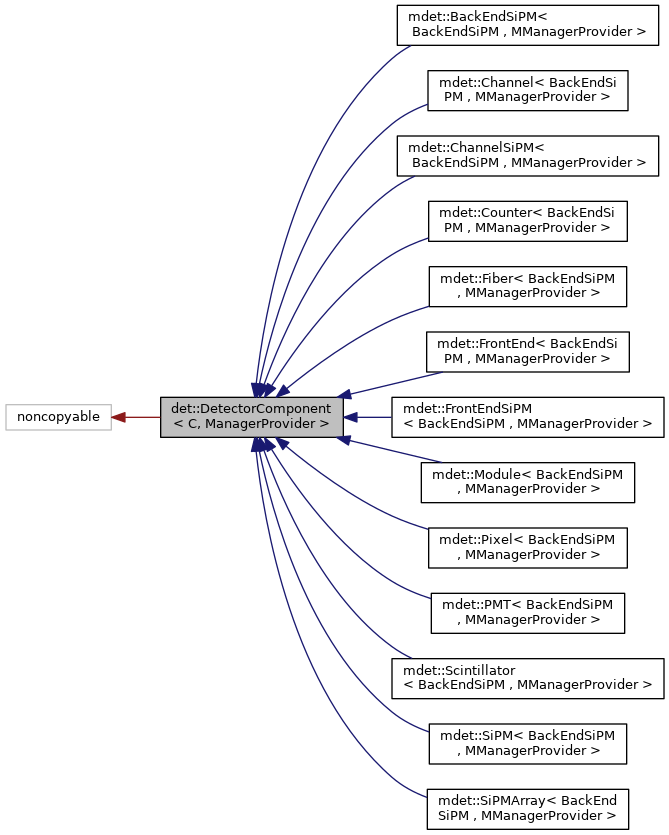

Inheritance diagram for det::DetectorComponent< C, ManagerProvider >:

Public Member Functions
	AddIdMessage (o)
int	GetId () const
	The id of this component. More...
const VManager::IndexMap &	GetIdsMap () const
	The id identifying this component within its detector hierarhy. More...
return o	str ()

Public Attributes
std::string	const
	Returns the message that identifies this component. More...
const DetectorUserData< C > &	const
	Retrieve the user custom data. More...

Protected Member Functions
template<typename T , template< typename > class P>
T &	GetData (P< T > &d, const std::string &p) const
	Common utility function for configuration. More...
template<typename T >
T &	GetData (T &d, const std::string &p) const
	Common utility function for configuration. More...
void	Register (utl::VValidated &v)
	Register the field so as to allow handling it. More...
s<< " ]";}DetectorComponent(int i, const VManager::IndexMap &parentMap):fId(i), fIdsMap(parentMap){Init();}DetectorComponent(const int i):fId(i){Init();}virtual ~DetectorComponent(){}virtual void Update(const bool invalidateData, const bool){for(FieldsContainer::iterator i=fFields.begin(), e=fFields.end();i!=e;++i)(*i) ->	SetValid (false)

Protected Attributes
template<typename T1 , typename T2 , template< typename, typename > class P>
T1 &	const
	Doubly-templated variation of common utility. More...
template<typename T >
T &	const
	Specialization for utl::Validated. More...
void	const
	Message that identifies the component. More...
s<< "id="<< GetId()<< " [";for(It i=GetIdsMap().begin(), e=GetIdsMap().end();i!=e;++i) s<< " "<< i-> first<< "="<< i->	second

Private Types
typedef std::vector < utl::VValidated * >	FieldsContainer
	Container for those fields (from the deriving classes) meant to be managed by this object. More...

Private Member Functions
template<typename T >
std::string	BuildLogMessage (const T &d, const std::string &p, const std::string &c)
	All the requested info in a line. More...
template<typename T >
std::string	BuildLogMessage (const std::list< T > &d, const std::string &p, const std::string &c)
	Overload for list: don't show the list. More...
	if (f==VManager::eNotFound)
void	Init ()
	Common object initialization method. More...

Private Attributes
template<typename R , typename T >
R &	const
	Common handler of the case of template-template parameters. More...
return	d
const VManager::Status	f = mngr.GetData(d, p, C::kComponentName, fIdsMap)
FieldsContainer	fFields
	Keep pointers to the detector-date fields of the particular (deriving) instance. More...
int	fId
	Id of the component. More...
VManager::IndexMap	fIdsMap
	Identifies this component within its hierarchy. More...
utl::ShadowPtr < DetectorUserData< C > >	fUserData
	User customized detector component level data. More...

Detailed Description

template<class C, class ManagerProvider>
class det::DetectorComponent< C, ManagerProvider >

Base class for detector components.

This class provides the common base for detector components, handling identification within the hierarchy and also detector configuration.

Parameters

C	The actual class of the detector component.
ManagerProvider	A policy method to resolve the actual manager of this component.

In C two fields are expected

• kComponentName The name of the component that will derive from this class.
• kComponentId The name of the keys for the ids of the actual components that will derive from this class.

In ManagerProvider an static function with the following signature is expected

• const VManager& mngr GetInstance();

Invariant

This object's id has to be in the map (fIdsMap[ C::kComponentId ] == fId).

Author

Rodolfo Federico Gamarra

Date

09 Jan 2009

Definition at line 83 of file DetectorComponent.h.

Member Typedef Documentation

template<class C , class ManagerProvider >

typedef std::vector<utl::VValidated*> det::DetectorComponent< C, ManagerProvider >::FieldsContainer

private

Container for those fields (from the deriving classes) meant to be managed by this object.

The pointers are not owned by this container, are just a reference through which access the fields.

Despite this container is meant to be used in a context where there's no a-priori knowledge of the final size of the container we use a vector (instead of, say, a list). Typically the size will be in the order of 10s, so there's nothing to worry about; and then favor the simpler (and more space eficient) vector.

Definition at line 99 of file DetectorComponent.h.

Member Function Documentation

template<class C , class ManagerProvider >

det::DetectorComponent< C, ManagerProvider >::AddIdMessage

(

o

)

Referenced by mdet::PMT::GetCrossTalk(), mdet::SiPMArray::GetRows(), mdet::PMT::GetRows(), mdet::PMT::InitPixels(), mdet::SiPMArray::InitSiPMs(), and mdet::Module::Module().

template<class C , class ManagerProvider >

template<typename T >

std::string det::DetectorComponent< C, ManagerProvider >::BuildLogMessage ( const T &  d, const std::string &  p, const std::string &  c  )

inlineprivate

All the requested info in a line.

Definition at line 360 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::d, and utl::s.

Referenced by det::DetectorComponent< C, ManagerProvider >::BuildLogMessage().

template<class C , class ManagerProvider >

template<typename T >

std::string det::DetectorComponent< C, ManagerProvider >::BuildLogMessage ( const std::list< T > &  d, const std::string &  p, const std::string &  c  )

inlineprivate

Overload for list: don't show the list.

Definition at line 373 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::BuildLogMessage(), G4StationSimulatorOG::p, and utl::s.

template<class C , class ManagerProvider >

template<typename T , template< typename > class P>

T& det::DetectorComponent< C, ManagerProvider >::GetData ( P< T > &  d, const std::string &  p  ) const

inlineprotected

Common utility function for configuration.

Retrieves data from the provided (via this class' template parameter) Manager instance and goes on with initialization.

Parameters

d	An object of type P<T> wrapping the real of type T.
p	Property name. The template class P must provide: A bool-like interface (operator ! and a conversion (possibly implicit to bool) to query initialization. An T& operator*() to retrieve the actual data. P& operator=(T* const ptr) for proper initialization. As of the wrapped class T, it must be default constructible.

This is fullfilled by, for instance, utl::ShadowPtr as P and built-in types for T.

Definition at line 191 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::d, and G4StationSimulatorOG::p.

Referenced by mdet::Channel::GetAbsoluteError(), mdet::BackEndSiPM::GetADCOffset(), mdet::BackEndSiPM::GetADCPar1(), mdet::BackEndSiPM::GetADCPar2(), mdet::BackEndSiPM::GetADCPar3(), mdet::BackEndSiPM::GetADCPar4(), mdet::BackEndSiPM::GetADCPar5(), mdet::BackEndSiPM::GetADCPar6(), mdet::BackEndSiPM::GetADCSaturationDown(), mdet::BackEndSiPM::GetADCSaturationUp(), mdet::Module::GetAreaKind(), mdet::Counter::GetAssociatedTankId(), mdet::Fiber::GetAttenuationAmplitudeA(), mdet::Fiber::GetAttenuationAmplitudeASiPM(), mdet::Fiber::GetAttenuationAmplitudeB(), mdet::Fiber::GetAttenuationAmplitudeBSiPM(), mdet::Fiber::GetAttenuationLengthA(), mdet::Fiber::GetAttenuationLengthASiPM(), mdet::Fiber::GetAttenuationLengthB(), mdet::Fiber::GetAttenuationLengthBSiPM(), mdet::Fiber::GetAttenuationReference(), mdet::Fiber::GetAttenuationReferenceEnergy(), mdet::Fiber::GetAttenuationReferenceThickness(), mdet::Module::GetBackgroundMuonsFlux(), mdet::FrontEndSiPM::GetBaseLineFluctuationHG(), mdet::FrontEndSiPM::GetBaseLineFluctuationLG(), mdet::Channel::GetDCGain(), mdet::Fiber::GetDecayTime(), mdet::Scintillator::GetDecayTime(), mdet::FrontEndSiPM::GetDelayBinaryADCMean(), mdet::FrontEndSiPM::GetDelayBinaryADCSigma(), mdet::FrontEndSiPM::GetDigitalBackGroundProbability(), mdet::FrontEndSiPM::GetDigitalBackGroundWidthMean(), mdet::FrontEndSiPM::GetDigitalBackGroundWidthStdDev(), mdet::ChannelSiPM::GetDiscriminatorGain(), mdet::ChannelSiPM::GetDiscriminatorHiLevel(), mdet::Channel::GetDiscriminatorHiLevel(), mdet::ChannelSiPM::GetDiscriminatorLowLevel(), mdet::Channel::GetDiscriminatorLowLevel(), mdet::ChannelSiPM::GetDiscriminatorThreshold(), mdet::ChannelSiPM::GetDiscriminatorTransitionTime(), mdet::Scintillator::GetEpsilon(), mdet::FrontEnd::GetFalseRangeHiThreshold(), mdet::FrontEndSiPM::GetFalseRangeHiThreshold(), mdet::ChannelSiPM::GetFastShaperGain(), mdet::ChannelSiPM::GetFastShaperTime(), mdet::Channel::GetFeedbackResistance(), mdet::BackEndSiPM::GetFirstAdderOffset(), mdet::BackEndSiPM::GetFirstAdderPar1(), mdet::BackEndSiPM::GetFirstAdderPar2(), mdet::BackEndSiPM::GetFirstAdderPar3(), mdet::BackEndSiPM::GetFirstAdderPar4(), mdet::BackEndSiPM::GetFirstAdderPar5(), mdet::BackEndSiPM::GetFirstAdderSaturationDown(), mdet::BackEndSiPM::GetFirstAdderSaturationUp(), mdet::Scintillator::GetHeight(), mdet::Channel::GetHighCutoffFrequency(), mdet::BackEndSiPM::GetHighGainAmplifierAdjustmentFactor(), mdet::BackEndSiPM::GetHighGainAmplifierOffset(), mdet::BackEndSiPM::GetHighGainAmplifierPar1(), mdet::BackEndSiPM::GetHighGainAmplifierPar2(), mdet::BackEndSiPM::GetHighGainAmplifierPar3(), mdet::BackEndSiPM::GetHighGainAmplifierPar4(), mdet::BackEndSiPM::GetHighGainAmplifierPar5(), mdet::BackEndSiPM::GetHighGainAmplifierPar6(), mdet::BackEndSiPM::GetHighGainAmplifierPar7(), mdet::BackEndSiPM::GetHighGainAmplifierPar8(), mdet::BackEndSiPM::GetHighGainAmplifierPar9(), mdet::BackEndSiPM::GetHighGainAmplifierSaturationDown(), mdet::BackEndSiPM::GetHighGainAmplifierSaturationUp(), mdet::Channel::GetInitialIntervalLength(), mdet::Channel::GetInvertingInputResistance(), mdet::Channel::GetIterationsNumber(), mdet::Scintillator::GetLength(), mdet::Scintillator::GetLocalSoilDensity(), mdet::Channel::GetLowCutoffFrequency(), mdet::BackEndSiPM::GetLowGainAmplifierAdjustmentFactor(), mdet::BackEndSiPM::GetLowGainAmplifierOffset(), mdet::BackEndSiPM::GetLowGainAmplifierPar1(), mdet::BackEndSiPM::GetLowGainAmplifierPar2(), mdet::BackEndSiPM::GetLowGainAmplifierPar3(), mdet::BackEndSiPM::GetLowGainAmplifierPar4(), mdet::BackEndSiPM::GetLowGainAmplifierPar5(), mdet::BackEndSiPM::GetLowGainAmplifierPar6(), mdet::BackEndSiPM::GetLowGainAmplifierPar7(), mdet::BackEndSiPM::GetLowGainAmplifierPar8(), mdet::BackEndSiPM::GetLowGainAmplifierPar9(), mdet::BackEndSiPM::GetLowGainAmplifierSaturationDown(), mdet::BackEndSiPM::GetLowGainAmplifierSaturationUp(), mdet::Channel::GetMaxNumberOfErrors(), mdet::FrontEnd::GetMeanSampleRatePeriod(), mdet::FrontEndSiPM::GetMeanSampleRatePeriod(), mdet::BackEndSiPM::GetNumberOfChannelsToGroup(), mdet::Fiber::GetNumericalAperture(), mdet::Fiber::GetOnManifoldLength(), mdet::Module::GetPhotoDetector(), mdet::FrontEndSiPM::GetPostT1BufferLength(), mdet::FrontEnd::GetPostT1BufferLength(), mdet::ChannelSiPM::GetPreAmplifierGain(), mdet::ChannelSiPM::GetPreAmplifierTime(), mdet::FrontEndSiPM::GetPreT1BufferLength(), mdet::FrontEnd::GetPreT1BufferLength(), mdet::SiPM::GetPulseAmplitude1Mean(), mdet::SiPM::GetPulseAmplitude1StdDev(), mdet::SiPM::GetPulseAmplitude2Mean(), mdet::SiPM::GetPulseAmplitude2StdDev(), mdet::SiPM::GetPulseAmplitude3Mean(), mdet::SiPM::GetPulseAmplitude3StdDev(), mdet::Pixel::GetPulseAmplitudeMean(), mdet::Pixel::GetPulseAmplitudeStdDev(), mdet::Pixel::GetPulseChargeMean(), mdet::Pixel::GetPulseChargeStdDev(), mdet::Pixel::GetPulseParametersCorrelation(), mdet::Pixel::GetPulseParametrization(), mdet::SiPM::GetPulseRelevantWidth(), mdet::Pixel::GetPulseRelevantWidth(), mdet::Pixel::GetPulseStdDevMean(), mdet::Pixel::GetPulseStdDevStdDev(), mdet::SiPM::GetPulseTime1Mean(), mdet::SiPM::GetPulseTime1StdDev(), mdet::SiPM::GetPulseTime2Mean(), mdet::SiPM::GetPulseTime2StdDev(), mdet::SiPM::GetPulseTime3Mean(), mdet::SiPM::GetPulseTime3StdDev(), mdet::SiPM::GetPulseTime4Mean(), mdet::SiPM::GetPulseTime4StdDev(), mdet::Fiber::GetRadius(), mdet::Fiber::GetRefractionIndex(), mdet::Channel::GetResponseTime(), mdet::FrontEnd::GetSampleRatePeriodJitter(), mdet::FrontEndSiPM::GetSampleTimeADC(), mdet::BackEndSiPM::GetSecondAdderOffset(), mdet::BackEndSiPM::GetSecondAdderPar1(), mdet::BackEndSiPM::GetSecondAdderPar2(), mdet::BackEndSiPM::GetSecondAdderPar3(), mdet::BackEndSiPM::GetSecondAdderPar4(), mdet::BackEndSiPM::GetSecondAdderPar5(), mdet::BackEndSiPM::GetSecondAdderSaturationDown(), mdet::BackEndSiPM::GetSecondAdderSaturationUp(), mdet::Channel::GetSignalShiftMean(), mdet::Channel::GetSignalShiftStdDev(), mdet::BackEndSiPM::GetSimplifiedGainHG(), mdet::BackEndSiPM::GetSimplifiedGainLG(), mdet::BackEndSiPM::GetSimplifiedTime(), mdet::Channel::GetSlewRate(), mdet::FrontEndSiPM::GetStepADC(), mdet::Channel::GetThreshold(), mdet::FrontEnd::GetTrueRangeLowThreshold(), mdet::FrontEndSiPM::GetTrueRangeLowThreshold(), and mdet::Scintillator::GetWidth().

template<class C , class ManagerProvider >

template<typename T >

T& det::DetectorComponent< C, ManagerProvider >::GetData ( T &  d, const std::string &  p  ) const

inlineprotected

Common utility function for configuration.

Overload without wrapping parameter: directly gets the datum as parameter. Typically invoked with T equal to a primitive type (int, double, so on).

Definition at line 232 of file DetectorComponent.h.

template<class C , class ManagerProvider >

int det::DetectorComponent< C, ManagerProvider >::GetId ( ) const

inline

The id of this component.

Definition at line 105 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::fId.

Referenced by G4StationSimulatorOG::G4StationConstruction::AssembleUMD(), MuonCounterViewerAG::ScintBuilder::Box(), MdLDFFinderAG::Likelihood2::CalculateCandidateLikelihood(), MdLDFFinderAG::Likelihood3::CalculateCandidateLikelihood(), MdLDFFinderAG::Likelihood::CalculateCandidateLikelihood(), MdLDFFinderAG::MdLDFFinder::CalculateChi2(), MdLDFFinderAG::MdLDFFinder::FillModulesShowerPlaneDistances(), EdepSimulatorAG::PrimaryGenerator::GeneratePrimaries(), mdet::PMT::GetCrossTalk(), det::DetectorComponent< C, ManagerProvider >::Init(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::OptoElectronics(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::PlotChannel(), MdCounterSimulatorAG::MdCounterSimulator::PlotChannel(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::PlotIntegrator(), MdCounterSimulatorAG::MdCounterSimulator::PlotIntegrator(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::ProcessPulses(), MdCounterSimulatorAG::MdCounterSimulator::ProcessPulses(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::ProcessPulsesIntegrator(), MdCounterSimulatorAG::MdCounterSimulator::ProcessPulsesIntegrator(), MdEventSelectorAG::MdEventSelector::RejectTimeOutliers(), EdepSimulatorAG::EdepSimulator::Run(), MuonCounterViewerAG::MuonCounterViewer::Run(), MdCounterSimulatorAG::MdCounterSimulator::RunFromMEventScintillatorSimulated(), MdLDFFinderAG::MdLDFFinder::SetLdfResiduals(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::SimulateElectronics(), MdCounterSimulatorAG::MdCounterSimulator::SimulateElectronics(), and MdCounterSimulatorAG::MdCounterSimulator::SimulatePulses().

template<class C , class ManagerProvider >

const VManager::IndexMap& det::DetectorComponent< C, ManagerProvider >::GetIdsMap ( ) const

inline

The id identifying this component within its detector hierarhy.

Definition at line 111 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::fIdsMap.

Referenced by mdet::Counter::GetModules(), mdet::Module::Module(), mdet::PMT::PMT(), mdet::SiPMArray::Update(), mdet::FrontEnd::Update(), mdet::FrontEndSiPM::Update(), mdet::PMT::Update(), and mdet::Module::Update().

template<class C , class ManagerProvider >

det::DetectorComponent< C, ManagerProvider >::if ( f  = = VManager::eNotFound )

inlineprivate

Definition at line 320 of file DetectorComponent.h.

References ERROR.

template<class C , class ManagerProvider >

void det::DetectorComponent< C, ManagerProvider >::Init ( void  )

inlineprivate

Common object initialization method.

Adds the id of this component to the attribute map, using as key the value specified via the template argument.

Definition at line 392 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::fIdsMap, and det::DetectorComponent< C, ManagerProvider >::GetId().

template<class C , class ManagerProvider >

void det::DetectorComponent< C, ManagerProvider >::Register ( utl::VValidated &  v )

inlineprotected

Register the field so as to allow handling it.

Definition at line 298 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::fFields.

Referenced by mdet::ChannelSiPM::ChannelSiPM(), mdet::Counter::Counter(), mdet::Module::Module(), and mdet::Scintillator::Scintillator().

template<class C , class ManagerProvider >

s<< " ]"; } DetectorComponent(int i, const VManager::IndexMap& parentMap) : fId(i), fIdsMap(parentMap) { Init(); } DetectorComponent(const int i) : fId(i) { Init(); } virtual ~DetectorComponent() { } virtual void Update(const bool invalidateData, const bool ) { for (FieldsContainer::iterator i = fFields.begin(), e = fFields.end(); i != e; ++i) (*i)-> det::DetectorComponent< C, ManagerProvider >::SetValid ( false  )

protected

template<class C , class ManagerProvider >

return o det::DetectorComponent< C, ManagerProvider >::str

(

)

Referenced by MdCornerClippingCorrecterAG::MdCornerClippingCorrecter::Run(), MdBiasCorrecterAG::MdBiasCorrecter::Run(), MdPileUpCorrecterAG::MdPileUpCorrecter::Run(), MdPatternFinderAG::MdPatternFinder::Run(), MdMuonEstimatorAG::MdMuonEstimator::Run(), and MdMuonCounterAG::MdMuonCounter::Run().

Member Data Documentation

template<class C , class ManagerProvider >

T & det::DetectorComponent< T >::const

Initial value:

{
      std::ostringstream o

Returns the message that identifies this component.

To make unambiguous the call in the wrapped version.

This method is just a convenience informative method, not meant to be used for control-flow logic (please do not parse this!).

See Also

AddIdMessage(std::ostringstream& s) const.

In the wrapped version, when wrapped type is itself a wrapping template, the compiler has a hard time to decide what to do. So this function was created with the logic formerly contained in the non-wrapped version.

Related to this, see http://www.gotw.ca/publications/mill17.htm.

Definition at line 125 of file DetectorComponent.h.

template<class C , class ManagerProvider >

const DetectorUserData<C>& det::DetectorComponent< C, ManagerProvider >::const

Initial value:

{
      if (!fUserData) {



        std::string dataMngr;

        GetDataNoWrap(dataMngr, "userData");

        DetectorUserData<C>* const t = new DetectorUserData<C>();


        DetectorUserData<C>::Load(t, dataMngr);

        fUserData = t;
      }
      return *fUserData

Retrieve the user custom data.

Definition at line 137 of file DetectorComponent.h.

template<class C , class ManagerProvider >

template<typename T1 , typename T2 , template< typename, typename > class P>

T1& det::DetectorComponent< C, ManagerProvider >::const

protected

Initial value:

{


      return GetDataUnwrap<T1>(d, p)

Doubly-templated variation of common utility.

Needed to be added in response to the addition of a 2nd policy parameter to utl::ShadowPtr.

Definition at line 203 of file DetectorComponent.h.

template<class C , class ManagerProvider >

template<typename T >

T& det::DetectorComponent< C, ManagerProvider >::const

protected

Initial value:

{
      if (! d.IsValid()) {
        GetDataNoWrap(d.Get(), p);
        d.SetValid();
      }
      return d.Get()

Specialization for utl::Validated.

To make unambiguous the call in the wrapped version.

In the wrapped version, when wrapped type is itself a wrapping template, the compiler has a hard time to decide what to do. So this function was created with the logic formerly contained in the non-wrapped version.

Related to this, see http://www.gotw.ca/publications/mill17.htm.

Definition at line 216 of file DetectorComponent.h.

template<class C , class ManagerProvider >

void det::DetectorComponent< C, ManagerProvider >::const

protected

Initial value:

{
      typedef det::VManager::IndexMap::const_iterator It

Message that identifies the component.

Streams-out a (human-readeable) message identifying the component in the hierarchy. It's meant to be used only in messages sent to the user as a way to identify the component that isssues the message (be it an information, warning or error one).

Maybe it'd have been more idiomatic to overload operator<< but I feel that it would be misleading to "stream out" a DetectorComponent.

Definition at line 250 of file DetectorComponent.h.

template<class C , class ManagerProvider >

template<typename R , typename T >

R& det::DetectorComponent< C, ManagerProvider >::const

private

Initial value:

{
      if (!d) {

        R* const t = new R();

        d = t;


        return GetDataNoWrap(*t, p);
      }
      return *d

Common handler of the case of template-template parameters.

The typename R is the return type, that's the wrapped data-type. The typename T is the wrapper type.

Definition at line 341 of file DetectorComponent.h.

template<class C , class ManagerProvider >

return det::DetectorComponent< C, ManagerProvider >::d

private

Definition at line 328 of file DetectorComponent.h.

Referenced by det::DetectorComponent< C, ManagerProvider >::BuildLogMessage(), mdet::Scintillator::ComputeIntersectionWith(), det::DetectorComponent< C, ManagerProvider >::GetData(), and mdet::Scintillator::Intersects().

template<class C , class ManagerProvider >

const VManager::Status det::DetectorComponent< C, ManagerProvider >::f = mngr.GetData(d, p, C::kComponentName, fIdsMap)

private

Definition at line 319 of file DetectorComponent.h.

Referenced by mdet::Channel::Discriminator::Init().

template<class C , class ManagerProvider >

FieldsContainer det::DetectorComponent< C, ManagerProvider >::fFields

private

Keep pointers to the detector-date fields of the particular (deriving) instance.

Definition at line 419 of file DetectorComponent.h.

Referenced by det::DetectorComponent< C, ManagerProvider >::Register().

template<class C , class ManagerProvider >

int det::DetectorComponent< C, ManagerProvider >::fId

private

Id of the component.

Definition at line 405 of file DetectorComponent.h.

Referenced by det::DetectorComponent< C, ManagerProvider >::GetId().

template<class C , class ManagerProvider >

VManager::IndexMap det::DetectorComponent< C, ManagerProvider >::fIdsMap

private

Identifies this component within its hierarchy.

Contains the id of this component and also those of its parents.

Definition at line 414 of file DetectorComponent.h.

Referenced by det::DetectorComponent< C, ManagerProvider >::GetIdsMap(), and det::DetectorComponent< C, ManagerProvider >::Init().

template<class C , class ManagerProvider >

utl::ShadowPtr<DetectorUserData<C> > det::DetectorComponent< C, ManagerProvider >::fUserData

mutableprivate

User customized detector component level data.

It's contained in a pointer so as to have, precisely, a pointer which doesn't need the full definition of the data (for instance the sizeof of the objects of this class doesn't depend on the sizeof of this user data).

Definition at line 429 of file DetectorComponent.h.

template<class C , class ManagerProvider >

s<< "id=" << GetId() << " ["; for (It i = GetIdsMap().begin(), e = GetIdsMap().end(); i != e; ++i) s << " " << i-> first<< "=" << i-> det::DetectorComponent< C, ManagerProvider >::second

protected

Definition at line 257 of file DetectorComponent.h.

Referenced by MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::SimulateElectronics(), and MdCounterSimulatorAG::MdCounterSimulator::SimulateElectronics().

---

The documentation for this class was generated from the following file:

• DetectorComponent.h
