Actual muon-sensitive objects. More...

#include "mdet/Scintillator.h"

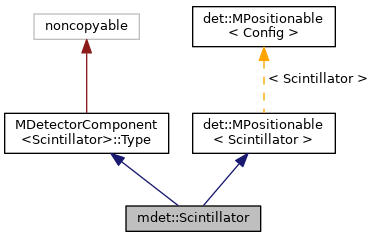

Inheritance diagram for mdet::Scintillator:

Public Member Functions
	AddIdMessage (o)

double	ComputeDecayDelay () const
	Computes a delay due to decay process. More...

double	GetDecayDelayMean () const
	The mean value of the delay time. More...

double	GetDecayDelayStdDev () const
	The standard deviation fo the delay time. More...

int	GetId () const
	The id of this component. More...

const VManager::IndexMap &	GetIdsMap () const
	The id identifying this component within its detector hierarhy. More...

utl::CoordinateSystemPtr	GetLocalCoordinateSystem () const
	Local system based on position and configured rotations. More...

const Module &	GetModule () const
	Retrieve the parent mdet::Module. More...

utl::Point	GetPosition () const

return o	str ()

Geometrical body-like interface.
The intention of these methods is to hide to the clients the actual shape of the Scintillator, while providing the necessary functions to query the geometrical characteristics of the Scintillator. For example, it was discussed to have composite scintillators, built from multiple strips. These composite ones would make a single unit as a detecting device. On the other hand the principal quantities that may be used are shape independent, like the lenght of the path of a particle on the scint manterial: it seems better, so, to hide the actual shape. In fact, the current box-shaped Scintillators aren't actually exactly box-shaped because the Scinttillators have a wedge were the mdet::Fiber is buried into. So precisely the shape of the mdet::Scintillator is obtained as substraction of the mdet::Fiber volume from that of the mdet::Scintillator.
bool	Contains (const utl::Point &point) const
	Answers if `point` lies within the Scintillator. More...

bool	IntersectedBy (const utl::Line &line) const
	Answers if `line` crosses the body of the Scintillator. More...

utl::Segment	ComputeIntersectionWith (const utl::Line &line) const
	Computes the intersection of `line` within the Scintillator. More...

utl::Segment	ComputeUndergroundIntersectionOf (const utl::Line &line) const
	Computes the intersection of `line` with the ground (until reaching the Scintillator). More...

double	ComputeUndergroundGrammageFor (const utl::Line &l) const
	Computes the amount of mass transversed until reaching the Scintillator. More...

double	GetArea () const
	Compute Scintillator's total area in square metres. More...

template<class V >
V &	VisitShape (V &v) const
	Callback method for inspecting shape-aware properties. More...

Public Attributes
std::string	const
	Returns the message that identifies this component. More...

const DetectorUserData< C > &	const
	Retrieve the user custom data. More...

Static Public Attributes
static const char *const	kComponentId = MHierarchyInfo::kComponentsIds[3]

static const char *const	kComponentName = MHierarchyInfo::kComponentsNames[3]

Protected Types
typedef std::string	CoordinateType
	Simple internal typedef to emulate the actual enumeration via a type handled in the configuration mechanism. More...

Protected Member Functions
template<typename T , template< typename > class P>
T &	GetData (P< T > &d, const std::string &p) const
	Common utility function for configuration. More...

template<typename T >
T &	GetData (T &d, const std::string &p) const
	Common utility function for configuration. More...

void	Register (utl::VValidated &v)
	Register the field so as to allow handling it. More...

s<< " ]";}DetectorComponent(int i, const VManager::IndexMap &parentMap):fId(i), fIdsMap(parentMap){Init();}DetectorComponent(const int i):fId(i){Init();}virtual ~DetectorComponent(){}virtual void Update(const bool invalidateData, const bool){for(FieldsContainer::iterator i=fFields.begin(), e=fFields.end();i!=e;++i)(*i) ->	SetValid (false)

Specific datum accesor components.
In the most commeon situation deriving clases won't override these methods (and so the actual retrieval will be forwarded to the expected method in the Config template argument. Nevertheless they are made virtual in order to allow posible customization by subclasses. This customization could be done in principle in the Get method, basing the decision on the tag, but that would be pretty ugly.
virtual double	GetComponent1 () const
	First component of the position vector. More...

virtual double	GetComponent2 () const
	Second component of the position vector. More...

virtual double	GetComponent3 () const
	Third component of the position vector. More...

virtual double	GetEulerPhi () const
	First Euler angle for rotation over (original) z. More...

virtual double	GetEulerTheta () const
	Second Euler angle for rotation over (intermediate) x. More...

virtual double	GetEulerPsi () const
	Third Euler angle for rotation over (intermediate) z. More...

virtual CoordinateType	GetCoordinateType () const
	Coordinate type. More...

Protected Attributes
template<typename T1 , typename T2 , template< typename, typename > class P>
T1 &	const
	Doubly-templated variation of common utility. More...

template<typename T >
T &	const
	Specialization for utl::Validated. More...

void	const
	Message that identifies the component. More...

s<< "id="<< GetId()<< " [";for(It i=GetIdsMap().begin(), e=GetIdsMap().end();i!=e;++i) s<< " "<< i-> first<< "="<< i->	second

Static Protected Attributes
static const std::string	kComponent1Tag
	Tag for first vector component in config. More...

static const std::string	kComponent2Tag
	Tag for second vector component in config. More...

static const std::string	kComponent3Tag
	Tag for third vector component in config. More...

static const std::string	kCoordinateTypeTag

static const std::string	kEulerPhiTag
	Tag for first rotation's Euler angle in config. More...

static const std::string	kEulerPsiTag
	Tag for third rotation's Euler angle in config. More...

static const std::string	kEulerThetaTag
	Tag for second rotation's Euler angle in config. More...

Private Member Functions
double	GetDecayTime () const
	Characteristic decay time. More...

double	GetEpsilon () const
	FP comparison limit. More...

double	GetLocalSoilDensity () const
	Simplest density distribution: constant value. More...

utl::CoordinateSystemPtr	GetReferenceCoordinateSystem () const
	The reference is the local coordinate system of mdet::Module. More...

bool	Intersects (const utl::Plane &p, const utl::Line &l) const
	Check for intersection. More...

bool	IsCloseTo (double a, double b) const
	FP Comparison criteria. More...

	Scintillator (int sId, const det::VManager::IndexMap &parentMap, const Module &parent)
	Constructs the Scintillator (obviously!). More...

	~Scintillator ()

Internal part of the body-like geometrical interface.
template<class Container >
void	IntersectionHelper (Container &v, const utl::Line &l, utl::Plane(Scintillator::*ComputePlane)() const ) const
	Helper function for another specific member. More...

bool	InExtent (double ext, const utl::Vector &pLocal, const utl::Vector &normal) const
	Checks if the vector lies within Scintillator's extent for the given axis. More...

bool	OnSide (const utl::Plane &sidePlane, const utl::Line &line) const
	Indicates whether the `line` hits the Scintillator on the side contained in `sidePlane`. More...

utl::Plane	ComputeGroundPlane () const
	The (inifite) plane that coincides with the ground. More...

utl::Plane	ComputeTopPlane () const
	The plane where the top of the Scintillator lays. More...

utl::Plane	ComputeBottomPlane () const
	The plane where the bottom of the Scintillator lays. More...

utl::Plane	ComputeFrontPlane () const
	The plane where the front of the Scintillator lays. More...

utl::Plane	ComputeBackPlane () const
	The plane where the back of the Scintillator lays. More...

utl::Plane	ComputeRightPlane () const
	The plane where the right of the Scintillator lays. More...

utl::Plane	ComputeLeftPlane () const
	The plane where the left of the Scintillator lays. More...

utl::Plane	ComputePlaneHelper (double ext, double x, double y, double z) const
	Helper to construct the different planes. More...

double	GetLength () const
	Length of the strip (y direction in the local coordinate system). More...

double	GetWidth () const
	Width of the strip (x direction in the local coordinate system). More...

double	GetHeight () const
	Height of the strip (z direction in the local coordinate system). More...

Private Attributes
utl::Validated< double >	fDecayTime

utl::Validated< double >	fEpsilon

utl::Validated< double >	fHeight

utl::Validated< double >	fLength

utl::Validated< double >	fLocalSoilDensity

const Module &	fModule

utl::Validated< double >	fWidth

Friends
template<class T >
void	boost::checked_delete (T *) BOOST_NOEXCEPT
	Friendship for destruction. More...

struct	det::ComponentUpdater
	See mdet::Counter. More...

class	det::MPositionable< Scintillator >
	Frienship for GetData callback. More...

struct	det::ParentCreator
	Friendship to allow creation (or call it construction). More...

Detailed Description

Actual muon-sensitive objects.

In short, the Scintillators are made of an special plastic which has a response (light) when an impinging muon reach one of them. Actually they are sensible to negative particles. At last, they represent a body of this material, a body that's arranged within a given Module.

Todo:: Check some library for geometrical stuff (ROOT or some other CERN related stuff). Anyway, it seems better to hide that concern to the clients of this class.

Author: Rodolfo Federico Gamarra

Date: 09 Jan 2009

Definition at line 46 of file MDetector/Scintillator.h.

Member Typedef Documentation

typedef std::string det::MPositionable< Scintillator >::CoordinateType

protectedinherited

Simple internal typedef to emulate the actual enumeration via a type handled in the configuration mechanism.

Definition at line 157 of file MPositionable.h.

Constructor & Destructor Documentation

mdet::Scintillator::Scintillator	(	int	sId,
		const det::VManager::IndexMap &	parentMap,
		const Module &	parent
	)

private

Constructs the Scintillator (obviously!).

Parameters

sId	The identifier to be used.
parentMap	The identifiers of the parent within the hierarchy.
parent	The parent mdet::Module.

A reference to the parent is kept in this class and part of the construction is delegated to the first super-class.

See Also: mdet::MDectectorComponent::Type

Definition at line 41 of file MDetector/Scintillator.cc.

References fDecayTime, fHeight, fLength, fLocalSoilDensity, fWidth, and det::DetectorComponent< C, ManagerProvider >::Register().

mdet::Scintillator::~Scintillator ( )

inlineprivate

Definition at line 253 of file MDetector/Scintillator.h.

Member Function Documentation

template<class C , class ManagerProvider >

det::DetectorComponent< C, ManagerProvider >::AddIdMessage ( o )

inherited

Referenced by mdet::PMT::GetCrossTalk(), mdet::SiPMArray::GetRows(), mdet::PMT::GetRows(), mdet::PMT::InitPixels(), mdet::SiPMArray::InitSiPMs(), and mdet::Module::Module().

utl::Plane mdet::Scintillator::ComputeBackPlane ( ) const

private

The plane where the back of the Scintillator lays.

Computes the (infinite) plane where the back of the Scintillator (y direction in the local coordinate system) lays in the negative side of the axis up to half of its length.

Definition at line 411 of file MDetector/Scintillator.cc.

References ComputePlaneHelper(), and GetLength().

Referenced by ComputeIntersectionWith(), and IntersectedBy().

utl::Plane mdet::Scintillator::ComputeBottomPlane ( ) const

private

The plane where the bottom of the Scintillator lays.

Computes the (infinite) plane where the bottom of the Scintillator (z direction in the local coordinate system) lays in the negative side of the axis up to half of its height.

Definition at line 403 of file MDetector/Scintillator.cc.

References ComputePlaneHelper(), and GetHeight().

Referenced by ComputeIntersectionWith(), and IntersectedBy().

double mdet::Scintillator::ComputeDecayDelay ( ) const

Computes a delay due to decay process.

Definition at line 118 of file MDetector/Scintillator.cc.

References fwk::RandomEngineRegistry::eDetector, GetDecayTime(), and utl::RandomEngine::GetEngine().

Referenced by G4StationSimulatorOG::G4UMDScintStripAction::ProcessHits(), and MdCounterSimulatorAG::MdCounterSimulator::SimulatePulses().

utl::Plane mdet::Scintillator::ComputeFrontPlane ( ) const

private

The plane where the front of the Scintillator lays.

Computes the (infinite) plane where the front of the Scintillator (y direction in the local coordinate system) lays up to half of its length.

Definition at line 419 of file MDetector/Scintillator.cc.

References ComputePlaneHelper(), and GetLength().

Referenced by ComputeIntersectionWith(), and IntersectedBy().

utl::Plane mdet::Scintillator::ComputeGroundPlane ( ) const

private

The (inifite) plane that coincides with the ground.

Definition at line 341 of file MDetector/Scintillator.cc.

References mdet::Counter::GetAssociatedTank(), mdet::Module::GetCounter(), sdet::Station::GetLocalCoordinateSystem(), GetModule(), and TelescopeSimulatorKG::RTFunctions::Plane().

Referenced by ComputeIntersectionWith(), and ComputeUndergroundIntersectionOf().

utl::Segment mdet::Scintillator::ComputeIntersectionWith ( const utl::Line & line ) const

Computes the intersection of line within the Scintillator.

See Also: IntersectedBy

Definition at line 244 of file MDetector/Scintillator.cc.

References ComputeBackPlane(), ComputeBottomPlane(), ComputeFrontPlane(), ComputeGroundPlane(), ComputeLeftPlane(), ComputeRightPlane(), ComputeTopPlane(), det::DetectorComponent< C, ManagerProvider >::d, utl::Plane::GetAnchor(), and IntersectionHelper().

Referenced by ComputeUndergroundIntersectionOf(), and MdCounterSimulatorAG::MdCounterSimulator::SimulatePulses().

utl::Plane mdet::Scintillator::ComputeLeftPlane ( ) const

private

The plane where the left of the Scintillator lays.

Computes the (infinite) plane where the left of the Scintillator (x direction in the local coordinate system) lays in the negative side of the axis up to half of its width.

Definition at line 435 of file MDetector/Scintillator.cc.

References ComputePlaneHelper(), and GetWidth().

Referenced by ComputeIntersectionWith(), and IntersectedBy().

utl::Plane mdet::Scintillator::ComputePlaneHelper	(	double	ext,
		double	x,
		double	y,
		double	z
	)		const

private

Helper to construct the different planes.

Parameters

ext	The magnitud of the extent in the direction, position of the anchor point.
x	Factor for x direction.
y	Idem for y.
z	Idem for z..

Definition at line 443 of file MDetector/Scintillator.cc.

References RdGeoCeLDFFitter::a, det::MPositionable< Scintillator >::GetLocalCoordinateSystem(), and TelescopeSimulatorKG::RTFunctions::Plane().

Referenced by ComputeBackPlane(), ComputeBottomPlane(), ComputeFrontPlane(), ComputeLeftPlane(), ComputeRightPlane(), and ComputeTopPlane().

utl::Plane mdet::Scintillator::ComputeRightPlane ( ) const

private

The plane where the right of the Scintillator lays.

Computes the (infinite) plane where the right of the Scintillator (x direction in the local coordinate system) lays up to half of its width.

Definition at line 427 of file MDetector/Scintillator.cc.

References ComputePlaneHelper(), and GetWidth().

Referenced by ComputeIntersectionWith(), and IntersectedBy().

utl::Plane mdet::Scintillator::ComputeTopPlane ( ) const

private

The plane where the top of the Scintillator lays.

Computes the (infinite) plane where the top of the Scintillator (z direction in the local coordinate system) lays up to half of its height.

Definition at line 395 of file MDetector/Scintillator.cc.

References ComputePlaneHelper(), and GetHeight().

Referenced by ComputeIntersectionWith(), and IntersectedBy().

double mdet::Scintillator::ComputeUndergroundGrammageFor ( const utl::Line & l ) const

Computes the amount of mass transversed until reaching the Scintillator.

Given the soil density distribution, this method computes the transversed mass, from the ground to the scint.

See Also: IntersectedBy; ComputeGroundIntersectionOf

Definition at line 332 of file MDetector/Scintillator.cc.

References ComputeUndergroundIntersectionOf(), utl::Segment::GetLength(), and GetLocalSoilDensity().

utl::Segment mdet::Scintillator::ComputeUndergroundIntersectionOf ( const utl::Line & line ) const

Computes the intersection of line with the ground (until reaching the Scintillator).

Computes the segment (of the given line) that joins the ground with the Scintillator (in that order, from the ground to the Scint).

See Also: IntersectedBy

Definition at line 317 of file MDetector/Scintillator.cc.

References ComputeGroundPlane(), ComputeIntersectionWith(), utl::Segment::GetBegin(), and utl::Intersection().

Referenced by ComputeUndergroundGrammageFor().

bool mdet::Scintillator::Contains ( const utl::Point & point ) const

Answers if point lies within the Scintillator.

Definition at line 148 of file MDetector/Scintillator.cc.

References GetHeight(), GetLength(), det::MPositionable< Scintillator >::GetLocalCoordinateSystem(), det::MPositionable< Scintillator >::GetPosition(), GetWidth(), and InExtent().

Referenced by OnSide().

double mdet::Scintillator::GetArea ( ) const

Compute Scintillator's total area in square metres.

See Also: GetLength

Definition at line 363 of file MDetector/Scintillator.cc.

References GetLength(), and GetWidth().

Referenced by MdMuonCounterAG::MdMuonCounter::FillModuleRecData(), MdPileUpCorrecterAG::MdPileUpCorrecter::Run(), and MdMuonEstimatorAG::MdMuonEstimator::SetSegmentationAndArea().

virtual double det::MPositionable< Scintillator >::GetComponent1 ( ) const

protectedvirtualinherited

First component of the position vector.

It could be x or r, according to the type determined by GetCoordinateType.

See Also: utl::Vector

virtual double det::MPositionable< Scintillator >::GetComponent2 ( ) const

protectedvirtualinherited

Second component of the position vector.

See Also: GetComponent1

virtual double det::MPositionable< Scintillator >::GetComponent3 ( ) const

protectedvirtualinherited

Third component of the position vector.

See Also: GetComponent1

virtual CoordinateType det::MPositionable< Scintillator >::GetCoordinateType ( ) const

protectedvirtualinherited

Coordinate type.

See Also: utl::Vector::CoordinateType

template<class C , class ManagerProvider >

template<typename T , template< typename > class P>

T& det::DetectorComponent< C, ManagerProvider >::GetData	(	P< T > &	d,
		const std::string &	p
	)		const

inlineprotectedinherited

Common utility function for configuration.

Retrieves data from the provided (via this class' template parameter) Manager instance and goes on with initialization.

Parameters

d	An object of type P<T> wrapping the real of type T.
p	Property name. The template class P must provide: A bool-like interface (operator ! and a conversion (possibly implicit to bool) to query initialization. An T& operator() to retrieve the actual data. P& operator=(T const ptr) for proper initialization. As of the wrapped class T, it must be default constructible.

This is fullfilled by, for instance, utl::ShadowPtr as P and built-in types for T.

Definition at line 191 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::d, and G4StationSimulatorOG::p.

template<class C , class ManagerProvider >

template<typename T >

T& det::DetectorComponent< C, ManagerProvider >::GetData	(	T &	d,
		const std::string &	p
	)		const

inlineprotectedinherited

Common utility function for configuration.

Overload without wrapping parameter: directly gets the datum as parameter. Typically invoked with T equal to a primitive type (int, double, so on).

Definition at line 232 of file DetectorComponent.h.

double mdet::Scintillator::GetDecayDelayMean ( ) const

The mean value of the delay time.

This method is provided for completeness, so as to allow the user to query the particular mean value.

For the computation of an specific value the user has to call the "Compute", which will give a value acording the actual distribution followed by the processes involved.

See Also: ComputeDecayDelay

Definition at line 130 of file MDetector/Scintillator.cc.

References GetDecayTime().

Referenced by GetDecayDelayStdDev().

double mdet::Scintillator::GetDecayDelayStdDev ( ) const

The standard deviation fo the delay time.

See Also: GetDecayDelayMean

Definition at line 139 of file MDetector/Scintillator.cc.

References GetDecayDelayMean().

double mdet::Scintillator::GetDecayTime ( ) const

private

Characteristic decay time.

Definition at line 103 of file MDetector/Scintillator.cc.

References fDecayTime, and det::DetectorComponent< C, ManagerProvider >::GetData().

Referenced by ComputeDecayDelay(), and GetDecayDelayMean().

double mdet::Scintillator::GetEpsilon ( ) const

private

FP comparison limit.

Definition at line 110 of file MDetector/Scintillator.cc.

References fEpsilon, and det::DetectorComponent< C, ManagerProvider >::GetData().

Referenced by IsCloseTo().

virtual double det::MPositionable< Scintillator >::GetEulerPhi ( ) const

protectedvirtualinherited

First Euler angle for rotation over (original) z.

virtual double det::MPositionable< Scintillator >::GetEulerPsi ( ) const

protectedvirtualinherited

Third Euler angle for rotation over (intermediate) z.

virtual double det::MPositionable< Scintillator >::GetEulerTheta ( ) const

protectedvirtualinherited

Second Euler angle for rotation over (intermediate) x.

double mdet::Scintillator::GetHeight ( ) const

private

Height of the strip (z direction in the local coordinate system).

See Also: GetLegth

Definition at line 87 of file MDetector/Scintillator.cc.

References fHeight, and det::DetectorComponent< C, ManagerProvider >::GetData().

Referenced by ComputeBottomPlane(), ComputeTopPlane(), Contains(), and VisitShape().

template<class C , class ManagerProvider >

int det::DetectorComponent< C, ManagerProvider >::GetId ( ) const

inlineinherited

The id of this component.

Definition at line 105 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::fId.

Referenced by G4StationSimulatorOG::G4StationConstruction::AssembleUMD(), MuonCounterViewerAG::ScintBuilder::Box(), MdLDFFinderAG::Likelihood2::CalculateCandidateLikelihood(), MdLDFFinderAG::Likelihood3::CalculateCandidateLikelihood(), MdLDFFinderAG::Likelihood::CalculateCandidateLikelihood(), MdLDFFinderAG::MdLDFFinder::CalculateChi2(), MdLDFFinderAG::MdLDFFinder::FillModulesShowerPlaneDistances(), EdepSimulatorAG::PrimaryGenerator::GeneratePrimaries(), mdet::PMT::GetCrossTalk(), det::DetectorComponent< C, ManagerProvider >::Init(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::OptoElectronics(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::PlotChannel(), MdCounterSimulatorAG::MdCounterSimulator::PlotChannel(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::PlotIntegrator(), MdCounterSimulatorAG::MdCounterSimulator::PlotIntegrator(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::ProcessPulses(), MdCounterSimulatorAG::MdCounterSimulator::ProcessPulses(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::ProcessPulsesIntegrator(), MdCounterSimulatorAG::MdCounterSimulator::ProcessPulsesIntegrator(), MdEventSelectorAG::MdEventSelector::RejectTimeOutliers(), EdepSimulatorAG::EdepSimulator::Run(), MuonCounterViewerAG::MuonCounterViewer::Run(), MdCounterSimulatorAG::MdCounterSimulator::RunFromMEventScintillatorSimulated(), MdLDFFinderAG::MdLDFFinder::SetLdfResiduals(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::SimulateElectronics(), MdCounterSimulatorAG::MdCounterSimulator::SimulateElectronics(), and MdCounterSimulatorAG::MdCounterSimulator::SimulatePulses().

template<class C , class ManagerProvider >

const VManager::IndexMap& det::DetectorComponent< C, ManagerProvider >::GetIdsMap ( ) const

inlineinherited

The id identifying this component within its detector hierarhy.

Definition at line 111 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::fIdsMap.

Referenced by mdet::Counter::GetModules(), mdet::Module::Module(), mdet::PMT::PMT(), mdet::SiPMArray::Update(), mdet::FrontEnd::Update(), mdet::FrontEndSiPM::Update(), mdet::PMT::Update(), and mdet::Module::Update().

double mdet::Scintillator::GetLength ( ) const

private

Length of the strip (y direction in the local coordinate system).

Up to now the mdet::Scintillator have the simplest (and currently actual) possible shape. They are strips, so under currently normal conditions the following holds:

Lenght is the largest extent (~m).
Width lies in between (~dm).
Height is the shortest (~cm).

Definition at line 71 of file MDetector/Scintillator.cc.

References fLength, and det::DetectorComponent< C, ManagerProvider >::GetData().

Referenced by ComputeBackPlane(), ComputeFrontPlane(), Contains(), GetArea(), and VisitShape().

utl::CoordinateSystemPtr det::MPositionable< Scintillator >::GetLocalCoordinateSystem ( ) const

inherited

Local system based on position and configured rotations.

Referenced by ComputePlaneHelper(), and Contains().

double mdet::Scintillator::GetLocalSoilDensity ( ) const

private

Simplest density distribution: constant value.

Definition at line 95 of file MDetector/Scintillator.cc.

References fLocalSoilDensity, and det::DetectorComponent< C, ManagerProvider >::GetData().

Referenced by ComputeUndergroundGrammageFor().

const Module & mdet::Scintillator::GetModule ( ) const

Retrieve the parent mdet::Module.

Definition at line 63 of file MDetector/Scintillator.cc.

References fModule.

Referenced by MuonCounterViewerAG::ScintBuilder::Box(), ComputeGroundPlane(), GetReferenceCoordinateSystem(), and MdCounterSimulatorAG::MdCounterSimulator::SimulatePulses().

utl::Point det::MPositionable< Scintillator >::GetPosition ( ) const

inherited

This object position, based the configured components and the reference coordinate system. The return type is by-copy as of the general recommendation due to Bugzilla's report #307. Also this topic was referred by in 'Point copy vs reference, GetPosition and report #307.', see auger-offline-devel archives for January 2009.

Referenced by Contains().

utl::CoordinateSystemPtr mdet::Scintillator::GetReferenceCoordinateSystem ( ) const

privatevirtual

The reference is the local coordinate system of mdet::Module.

The local coordinate system of the scintillator is in the center of it.

See Also: mdet::Module::GetLocalCoordinateSystem

Implements det::MPositionable< Scintillator >.

Definition at line 55 of file MDetector/Scintillator.cc.

References det::MPositionable< Config >::GetLocalCoordinateSystem(), and GetModule().

double mdet::Scintillator::GetWidth ( ) const

private

Width of the strip (x direction in the local coordinate system).

See Also: GetLength

Definition at line 79 of file MDetector/Scintillator.cc.

References fWidth, and det::DetectorComponent< C, ManagerProvider >::GetData().

Referenced by ComputeLeftPlane(), ComputeRightPlane(), Contains(), GetArea(), and VisitShape().

bool mdet::Scintillator::InExtent	(	double	ext,
		const utl::Vector &	pLocal,
		const utl::Vector &	normal
	)		const

private

Checks if the vector lies within Scintillator's extent for the given axis.

Parameters

ext	Extent of the Scintillator in the desidered direction.
pLocal	Vector with origin on the local coordinate system.
normal	Normal vector to perform the projection.

Definition at line 376 of file MDetector/Scintillator.cc.

References RdGeoCeLDFFitter::c, and IsCloseTo().

Referenced by Contains().

bool mdet::Scintillator::IntersectedBy ( const utl::Line & line ) const

Answers if line crosses the body of the Scintillator.

Definition at line 178 of file MDetector/Scintillator.cc.

References ComputeBackPlane(), ComputeBottomPlane(), ComputeFrontPlane(), ComputeLeftPlane(), ComputeRightPlane(), ComputeTopPlane(), and OnSide().

Referenced by MdCounterSimulatorAG::MdCounterSimulator::SimulatePulses().

template<class Container >

void mdet::Scintillator::IntersectionHelper	(	Container &	v,
		const utl::Line &	l,
		utl::Plane(Scintillator::*)() const	ComputePlane
	)		const

private

Helper function for another specific member.

Parameters

v	Container of for the selected planes (passed by non-const reference).
l	Line wrt which things are computed.
ComputePlane	Member pointer for delayed plane calculation.

See Also: IntersectionWith

Definition at line 300 of file MDetector/Scintillator.cc.

References utl::Intersection(), OnSide(), and G4StationSimulatorOG::p.

Referenced by ComputeIntersectionWith().

bool mdet::Scintillator::Intersects	(	const utl::Plane &	p,
		const utl::Line &	l
	)		const

private

Check for intersection.

Checks whether there is a single point intersection.

Definition at line 464 of file MDetector/Scintillator.cc.

References det::DetectorComponent< C, ManagerProvider >::d, utl::Line::GetDirection(), utl::Plane::GetNormal(), and IsCloseTo().

Referenced by OnSide().

bool mdet::Scintillator::IsCloseTo	(	double	a,
		double	b
	)		const

private

FP Comparison criteria.

Definition at line 453 of file MDetector/Scintillator.cc.

References GetEpsilon(), and max.

Referenced by InExtent(), and Intersects().

bool mdet::Scintillator::OnSide	(	const utl::Plane &	sidePlane,
		const utl::Line &	line
	)		const

private

Indicates whether the line hits the Scintillator on the side contained in sidePlane.

Definition at line 217 of file MDetector/Scintillator.cc.

References Contains(), utl::Intersection(), and Intersects().

Referenced by IntersectedBy(), and IntersectionHelper().

template<class C , class ManagerProvider >

void det::DetectorComponent< C, ManagerProvider >::Register ( utl::VValidated & v )

inlineprotectedinherited

Register the field so as to allow handling it.

Definition at line 298 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::fFields.

Referenced by mdet::ChannelSiPM::ChannelSiPM(), mdet::Counter::Counter(), mdet::Module::Module(), and Scintillator().

template<class C , class ManagerProvider >

s<< " ]"; } DetectorComponent(int i, const VManager::IndexMap& parentMap) : fId(i), fIdsMap(parentMap) { Init(); } DetectorComponent(const int i) : fId(i) { Init(); } virtual ~DetectorComponent() { } virtual void Update(const bool invalidateData, const bool ) { for (FieldsContainer::iterator i = fFields.begin(), e = fFields.end(); i != e; ++i) (*i)-> det::DetectorComponent< C, ManagerProvider >::SetValid ( false )

protectedinherited

template<class C , class ManagerProvider >

return o det::DetectorComponent< C, ManagerProvider >::str ( )

inherited

Referenced by MdCornerClippingCorrecterAG::MdCornerClippingCorrecter::Run(), MdBiasCorrecterAG::MdBiasCorrecter::Run(), MdPileUpCorrecterAG::MdPileUpCorrecter::Run(), MdPatternFinderAG::MdPatternFinder::Run(), MdMuonEstimatorAG::MdMuonEstimator::Run(), and MdMuonCounterAG::MdMuonCounter::Run().

template<class V >

V& mdet::Scintillator::VisitShape ( V & v ) const

inline

Callback method for inspecting shape-aware properties.

Parameters

v	Callback object (see details).

Returns: The argument v to allow function call chaining.

As stated, the intention is to hide the actual shape of the Scitillator via the previous functions. Nevertheless, it seems reasonable to give a way to inspect shape-dependant properties just in case it's neccesary and those function aren't enough.

The template argument is assumed to provide shape-aware methods, which are called with the Scintillator and those (hidden) shape-dependant properties:

Box(const Scintillator& s, double w, double l, double h) where s is the scint and w its width, l its length and h its height.

For example, you can define some class like

class ShapeAware {
public:
  // Box callback function.
   void Box(const mdet::Scintillator& s, double w, double l, double h) {
     double localResult;
     // Box aware stuff.
     fResult = localResult; // Keep the result in the field.
   }
  // Let's say your return a double.
  double GetResult() { return fResult; }
private:
  double fResult;
  // your other data: you may have to define other methods to fill these fields,
  // in order to have that information available in the callback methods.
};

then you can use it like

const mdet::Scintillator s;
ShapeAware sa;
//... stuff
// Pass the sa to the scintillator, then chain the GetResultFunction call.
double result = s.VisitShape(sa).GetResult();

See Also: Boost's Variant library or Visitor pattern literature (http://en.wikipedia.org/wiki/Visitor_pattern or Design Patterns: Elements of Reusable Object-Oriented Software by Gamma et al).

Other possibilities:

build a oo-hierarchy but that would be too much.
leave public those properties (putting a nice comment).
build (instead of templating) interfaces to be called with shape-dependant parameters.

Other possibilities: The visit shape could be defined to return what would be returned by the called function. To do this (i) another template argument may be added or (ii) a traits type could be supposed to be included in V. The first choice has two drawbacks: this VisitShape method has to assume a certain cv-qualification and the calls to VisitShape have to include the return type specialized in the template args (the return type should be the first template arg, so it isn't neccesary to specify the type of the callback object). The second choice requires to define the typedef. Another, different, posssibility is to add a (templated) output argument. At last, returning the arg seemed to be the most general choice.

Definition at line 186 of file MDetector/Scintillator.h.

References GetHeight(), GetLength(), and GetWidth().

Referenced by mdet::Fiber::GetOnScintillatorLength(), MuonCounterViewerAG::MuonCounterViewer::Run(), and G4StationSimulatorOG::G4StationConstruction::SetUMDParameters().

Friends And Related Function Documentation

template<class T >

void boost::checked_delete ( T * )

friend

Friendship for destruction.

Depends on det::ComponentGroup innards.

friend struct det::ComponentUpdater

friend

See mdet::Counter.

Definition at line 270 of file MDetector/Scintillator.h.

friend class det::MPositionable< Scintillator >

friend

Frienship for GetData callback.

Definition at line 257 of file MDetector/Scintillator.h.

friend struct det::ParentCreator

friend

Friendship to allow creation (or call it construction).

Definition at line 261 of file MDetector/Scintillator.h.

Member Data Documentation

template<class C , class ManagerProvider >

T & det::DetectorComponent< T >::const

inherited

Initial value:

{

std::ostringstream o

Returns the message that identifies this component.

To make unambiguous the call in the wrapped version.

This method is just a convenience informative method, not meant to be used for control-flow logic (please do not parse this!).

See Also: AddIdMessage(std::ostringstream& s) const.

In the wrapped version, when wrapped type is itself a wrapping template, the compiler has a hard time to decide what to do. So this function was created with the logic formerly contained in the non-wrapped version.

Related to this, see http://www.gotw.ca/publications/mill17.htm.

Definition at line 125 of file DetectorComponent.h.

template<class C , class ManagerProvider >

const DetectorUserData<C>& det::DetectorComponent< C, ManagerProvider >::const

inherited

Initial value:

{
      if (!fUserData) {

        std::string dataMngr;

        GetDataNoWrap(dataMngr, "userData");

        DetectorUserData<C>* const t = new DetectorUserData<C>();

        DetectorUserData<C>::Load(t, dataMngr);

        fUserData = t;
      }
      return *fUserData

Retrieve the user custom data.

Definition at line 137 of file DetectorComponent.h.

template<class C , class ManagerProvider >

template<typename T1 , typename T2 , template< typename, typename > class P>

T1& det::DetectorComponent< C, ManagerProvider >::const

protectedinherited

Initial value:

{

      return GetDataUnwrap<T1>(d, p)

Doubly-templated variation of common utility.

Needed to be added in response to the addition of a 2nd policy parameter to utl::ShadowPtr.

Definition at line 203 of file DetectorComponent.h.

template<class C , class ManagerProvider >

template<typename T >

T& det::DetectorComponent< C, ManagerProvider >::const

protectedinherited

Initial value:

{
      if (! d.IsValid()) {
        GetDataNoWrap(d.Get(), p);
        d.SetValid();
      }
      return d.Get()

Specialization for utl::Validated.

To make unambiguous the call in the wrapped version.

In the wrapped version, when wrapped type is itself a wrapping template, the compiler has a hard time to decide what to do. So this function was created with the logic formerly contained in the non-wrapped version.

Related to this, see http://www.gotw.ca/publications/mill17.htm.

Definition at line 216 of file DetectorComponent.h.

template<class C , class ManagerProvider >

void det::DetectorComponent< C, ManagerProvider >::const

protectedinherited

Initial value:

{

typedef det::VManager::IndexMap::const_iterator It

Message that identifies the component.

Streams-out a (human-readeable) message identifying the component in the hierarchy. It's meant to be used only in messages sent to the user as a way to identify the component that isssues the message (be it an information, warning or error one).

Maybe it'd have been more idiomatic to overload operator<< but I feel that it would be misleading to "stream out" a DetectorComponent.

Definition at line 250 of file DetectorComponent.h.

utl::Validated<double> mdet::Scintillator::fDecayTime

mutableprivate

Definition at line 417 of file MDetector/Scintillator.h.

Referenced by GetDecayTime(), and Scintillator().

utl::Validated<double> mdet::Scintillator::fEpsilon

mutableprivate

Definition at line 419 of file MDetector/Scintillator.h.

Referenced by GetEpsilon().

utl::Validated<double> mdet::Scintillator::fHeight

mutableprivate

Definition at line 413 of file MDetector/Scintillator.h.

Referenced by GetHeight(), and Scintillator().

utl::Validated<double> mdet::Scintillator::fLength

mutableprivate

Definition at line 409 of file MDetector/Scintillator.h.

Referenced by GetLength(), and Scintillator().

utl::Validated<double> mdet::Scintillator::fLocalSoilDensity

mutableprivate

Definition at line 415 of file MDetector/Scintillator.h.

Referenced by GetLocalSoilDensity(), and Scintillator().

const Module& mdet::Scintillator::fModule

private

Definition at line 421 of file MDetector/Scintillator.h.

Referenced by GetModule().

utl::Validated<double> mdet::Scintillator::fWidth

mutableprivate

Definition at line 411 of file MDetector/Scintillator.h.

Referenced by GetWidth(), and Scintillator().

const std::string det::MPositionable< Scintillator >::kComponent1Tag

staticprotectedinherited

Tag for first vector component in config.

Definition at line 145 of file MPositionable.h.

const std::string det::MPositionable< Scintillator >::kComponent2Tag

staticprotectedinherited

Tag for second vector component in config.

Definition at line 147 of file MPositionable.h.

const std::string det::MPositionable< Scintillator >::kComponent3Tag

staticprotectedinherited

Tag for third vector component in config.

Definition at line 149 of file MPositionable.h.

const char *const mdet::Scintillator::kComponentId = MHierarchyInfo::kComponentsIds[3]

static

Definition at line 54 of file MDetector/Scintillator.h.

const char *const mdet::Scintillator::kComponentName = MHierarchyInfo::kComponentsNames[3]

static

Definition at line 52 of file MDetector/Scintillator.h.

const std::string det::MPositionable< Scintillator >::kCoordinateTypeTag

staticprotectedinherited

Tag for coordinate type selection. This tag defines the meaning of the three components.

See Also: utl::BasicVector::CoordinateType

Definition at line 143 of file MPositionable.h.

const std::string det::MPositionable< Scintillator >::kEulerPhiTag

staticprotectedinherited

Tag for first rotation's Euler angle in config.

Definition at line 151 of file MPositionable.h.

const std::string det::MPositionable< Scintillator >::kEulerPsiTag

staticprotectedinherited

Tag for third rotation's Euler angle in config.

Definition at line 155 of file MPositionable.h.

const std::string det::MPositionable< Scintillator >::kEulerThetaTag

staticprotectedinherited

Tag for second rotation's Euler angle in config.

Definition at line 153 of file MPositionable.h.

template<class C , class ManagerProvider >

s<< "id=" << GetId() << " ["; for (It i = GetIdsMap().begin(), e = GetIdsMap().end(); i != e; ++i) s << " " << i-> first<< "=" << i-> det::DetectorComponent< C, ManagerProvider >::second

protectedinherited

Definition at line 257 of file DetectorComponent.h.

Referenced by MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::SimulateElectronics(), and MdCounterSimulatorAG::MdCounterSimulator::SimulateElectronics().

The documentation for this class was generated from the following files:

Public Member Functions

Public Attributes

Static Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
