#include "mdet/Module.h"

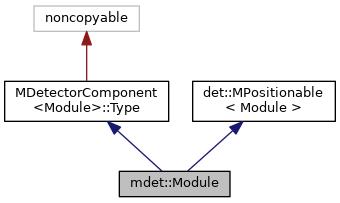

Inheritance diagram for mdet::Module:

Classes
struct	ChannelTag

struct	FiberTag

struct	IdTuple
	structure that holds the mapping between different Ids More...

struct	PixelTag

struct	ScintillatorTag

Public Types
enum	AreaKind { eSmall = 0, eLarge = 1 }
	Kind of module based on its area. More...

typedef utl::ConsecutiveEnumFactory < AreaKind, eLarge, AreaKindTags >	AreaKindCreator
	Convenience typedef for creation of AreaKind enumerators. More...

enum	PhotoDetector { ePMT = 0, eSiPM = 1 }

typedef utl::ConsecutiveEnumFactory < PhotoDetector, eSiPM, PhotoDetectorTags >	PhotoDetectorCreator
	Convenience typedef for creation of PhotoDetector enumerators. More...

Public Member Functions
	AddIdMessage (o)

double	GetArea () const

AreaKind	GetAreaKind () const

const BackEndSiPM &	GetBackEndSiPM () const

double	GetBackgroundMuonsFlux () const
	Background muons Flux. More...

const Counter &	GetCounter () const
	The parent counter. More...

double	GetDepth () const
	The depth of the origin of the module. This quantity is positive for an underground module. More...

double	GetDepth (const utl::Point &p) const

const FrontEnd &	GetFrontEnd () const

const FrontEndSiPM &	GetFrontEndSiPM () const

int	GetId () const
	The id of this component. More...

const VManager::IndexMap &	GetIdsMap () const
	The id identifying this component within its detector hierarhy. More...

utl::CoordinateSystemPtr	GetLocalCoordinateSystem () const
	Local system based on position and configured rotations. More...

ULong64_t	GetMask () const

unsigned int	GetNumberOfScintillators () const

double	GetPhi0 () const

PhotoDetector	GetPhotoDetector () const

const PMT &	GetPMT () const

utl::Point	GetPosition () const

double	GetShortestFiber () const

const SiPMArray &	GetSiPMArray () const

bool	IsSiPM () const

return o	str ()


template<class Component >
const Fiber &	GetFiberFor (const Component &c) const
	Linking between fibers, scintillators, channels and pixels. More...

template<class Component >
const Scintillator &	GetScintillatorFor (const Component &c) const
	Returns the associated mdet::Scintillator. More...

template<class Component >
const Pixel &	GetPixelFor (const Component &c) const
	Returns the associated mdet::Pixel. More...

template<class Component >
const SiPM &	GetSiPMFor (const Component &c) const
	Returns the associated mdet::SiPM. More...

template<class Component >
const ChannelSiPM &	GetChannelSiPMFor (const Component &c) const
	Returns the associated mdet::ChannelSiPM. More...

template<class Component >
const Channel &	GetChannelFor (const Component &c) const
	Returns the associated mdet::Channel. More...


const Scintillator &	GetScintillator (int sId) const
	Direct accesor by id. More...

bool	ExistsScintillator (const int sId) const

const Channel &	GetChannel (int cId) const

bool	ExistsChannel (const int cId) const

const ChannelSiPM &	GetChannelSiPM (int cId) const

bool	ExistsChannelSiPM (const int cId) const

const Fiber &	GetFiber (int fId) const

bool	ExistsFiber (const int fId) const

const Pixel &	GetPixel (int pId) const

bool	ExistsPixel (const int pId) const

const SiPM &	GetSiPM (const int pId) const

bool	ExistsSiPM (const int pId) const

int	ScintillatorToChannelId (const int sId) const

int	ScintillatorToPixelId (const int sId) const

int	ScintillatorToFiberId (const int sId) const

int	ChannelToScintillatorId (const int cId) const

int	ChannelToPixelId (const int cId) const

int	ChannelToFiberId (const int cId) const

int	FiberToChannelId (const int fId) const

int	FiberToScintillatorId (const int fId) const

int	FiberToPixelId (const int fId) const

int	PixelToScintillatorId (const int pId) const

int	PixelToFiberId (const int pId) const

int	PixelToChannelId (const int pId) const

Public Attributes
std::string	const
	Returns the message that identifies this component. More...

const DetectorUserData< C > &	const
	Retrieve the user custom data. More...

Static Public Attributes
static const char *const	AreaKindTags [] = { "small", "large" }
	Tags for textual representation. More...

static const char *const	kComponentId = MHierarchyInfo::kComponentsIds[1]

static const char *const	kComponentName = MHierarchyInfo::kComponentsNames[1]

static const char *const	PhotoDetectorTags [] = { "PMT", "SiPM" }
	Tags for textual representation. More...

Protected Types
typedef std::string	CoordinateType
	Simple internal typedef to emulate the actual enumeration via a type handled in the configuration mechanism. More...

Protected Member Functions
template<typename T , template< typename > class P>
T &	GetData (P< T > &d, const std::string &p) const
	Common utility function for configuration. More...

template<typename T >
T &	GetData (T &d, const std::string &p) const
	Common utility function for configuration. More...

void	Register (utl::VValidated &v)
	Register the field so as to allow handling it. More...

s<< " ]";}DetectorComponent(int i, const VManager::IndexMap &parentMap):fId(i), fIdsMap(parentMap){Init();}DetectorComponent(const int i):fId(i){Init();}virtual ~DetectorComponent(){}virtual void Update(const bool invalidateData, const bool){for(FieldsContainer::iterator i=fFields.begin(), e=fFields.end();i!=e;++i)(*i) ->	SetValid (false)

Specific datum accesor components.
In the most commeon situation deriving clases won't override these methods (and so the actual retrieval will be forwarded to the expected method in the Config template argument. Nevertheless they are made virtual in order to allow posible customization by subclasses. This customization could be done in principle in the Get method, basing the decision on the tag, but that would be pretty ugly.
virtual double	GetComponent1 () const
	First component of the position vector. More...

virtual double	GetComponent2 () const
	Second component of the position vector. More...

virtual double	GetComponent3 () const
	Third component of the position vector. More...

virtual double	GetEulerPhi () const
	First Euler angle for rotation over (original) z. More...

virtual double	GetEulerTheta () const
	Second Euler angle for rotation over (intermediate) x. More...

virtual double	GetEulerPsi () const
	Third Euler angle for rotation over (intermediate) z. More...

virtual CoordinateType	GetCoordinateType () const
	Coordinate type. More...

Protected Attributes
template<typename T1 , typename T2 , template< typename, typename > class P>
T1 &	const
	Doubly-templated variation of common utility. More...

template<typename T >
T &	const
	Specialization for utl::Validated. More...

void	const
	Message that identifies the component. More...

s<< "id="<< GetId()<< " [";for(It i=GetIdsMap().begin(), e=GetIdsMap().end();i!=e;++i) s<< " "<< i-> first<< "="<< i->	second

Static Protected Attributes
static const std::string	kComponent1Tag = "positionComponent1"
	Tag for first vector component in config. More...

static const std::string	kComponent2Tag = "positionComponent2"
	Tag for second vector component in config. More...

static const std::string	kComponent3Tag = "positionComponent3"
	Tag for third vector component in config. More...

static const std::string	kCoordinateTypeTag = "coordinateType"

static const std::string	kEulerPhiTag = "eulerPhi"
	Tag for first rotation's Euler angle in config. More...

static const std::string	kEulerPsiTag = "eulerPsi"
	Tag for third rotation's Euler angle in config. More...

static const std::string	kEulerThetaTag = "eulerTheta"
	Tag for second rotation's Euler angle in config. More...

Private Types
typedef std::string	AreaKindForConfig

typedef MComponentGroup < Module, Fiber, det::ParentCreator >::Type	FiberGroup
	Type for the set of associated mdet::Fiber. More...

typedef IndexContainer::index < ChannelTag >::type	IndexByChannelId

typedef IndexContainer::index < FiberTag >::type	IndexByFiberId

typedef IndexContainer::index < PixelTag >::type	IndexByPixelId

typedef IndexContainer::index < ScintillatorTag >::type	IndexByScintillatorId

typedef boost::multi_index_container < IdTuple, boost::multi_index::indexed_by < boost::multi_index::ordered_unique < boost::multi_index::tag < ChannelTag > , boost::multi_index::member < IdTuple, int,&IdTuple::fChannelId > >, boost::multi_index::ordered_unique < boost::multi_index::tag < PixelTag > , boost::multi_index::member < IdTuple, int,&IdTuple::fPixelId > >, boost::multi_index::ordered_unique < boost::multi_index::tag < ScintillatorTag > , boost::multi_index::member < IdTuple, int,&IdTuple::fScintillatorId > >, boost::multi_index::ordered_unique < boost::multi_index::tag < FiberTag > , boost::multi_index::member < IdTuple, int,&IdTuple::fFiberId > > > >	IndexContainer

typedef std::string	PhotoDetectorForConfig

typedef MComponentGroup < Module, Scintillator, det::ParentCreator >::Type	ScintillatorGroup
	Type for the set of associated mdet::Scintillator. More...

Private Member Functions
utl::CoordinateSystemPtr	GetReferenceCoordinateSystem () const
	The reference is the local coordinate system of mdet::Counter. More...

	Module (const int mId, const det::VManager::IndexMap &parentMap, const Counter &parent)
	Constructs the Module (obviously!). More...

void	Update (const bool invalidateData, const bool invalidateComponents)

	~Module ()

Friends
template<class T >
void	boost::checked_delete (T *) BOOST_NOEXCEPT
	Friendship for destruction. Depends on det::ComponentGroup innards. More...

struct	det::ComponentUpdater
	See mdet::Counter. More...

class	det::MPositionable< Module >

struct	det::ParentCreator

typedef ScintillatorGroup::ConstIterator	ScintillatorConstIterator
	Scintillator handling. More...

ScintillatorConstIterator	ScintillatorsBegin () const
	Begin iterator over the contained scitillators. More...

ScintillatorConstIterator	ScintillatorsEnd () const
	End iterator over the contained scintillators. More...

typedef FiberGroup::ConstIterator	FiberConstIterator
	Fiber handling. More...

FiberConstIterator	FibersBegin () const
	Begin iterator over the contained fibers. More...

FiberConstIterator	FibersEnd () const
	End iterator over the contained fibers. More...

Detailed Description

Array of Scintillator.

A Module consists in a regular arrangement of Scintillators. Due to the neccesity of E&M shielding they are buried underground.

Todo:: Maybe a boost::zip_iterator to allow simultaneous iteration.

Author: Rodolfo Federico Gamarra

Date: 09 Jan 2009

Definition at line 57 of file MDetector/Module.h.

Member Typedef Documentation

typedef utl::ConsecutiveEnumFactory<AreaKind, eLarge, AreaKindTags> mdet::Module::AreaKindCreator

Convenience typedef for creation of AreaKind enumerators.

Definition at line 108 of file MDetector/Module.h.

typedef std::string mdet::Module::AreaKindForConfig

private

Definition at line 428 of file MDetector/Module.h.

template<class Config>

typedef std::string det::MPositionable< Config >::CoordinateType

protectedinherited

Simple internal typedef to emulate the actual enumeration via a type handled in the configuration mechanism.

Definition at line 157 of file MPositionable.h.

typedef FiberGroup::ConstIterator mdet::Module::FiberConstIterator

Fiber handling.

Convenience typedef for const iterator over the contained mdet::Fiber instances.

Definition at line 135 of file MDetector/Module.h.

typedef MComponentGroup<Module, Fiber, det::ParentCreator>::Type mdet::Module::FiberGroup

private

Type for the set of associated mdet::Fiber.

Definition at line 65 of file MDetector/Module.h.

typedef IndexContainer::index<ChannelTag>::type mdet::Module::IndexByChannelId

private

Definition at line 480 of file MDetector/Module.h.

typedef IndexContainer::index<FiberTag>::type mdet::Module::IndexByFiberId

private

Definition at line 483 of file MDetector/Module.h.

typedef IndexContainer::index<PixelTag>::type mdet::Module::IndexByPixelId

private

Definition at line 481 of file MDetector/Module.h.

typedef IndexContainer::index<ScintillatorTag>::type mdet::Module::IndexByScintillatorId

private

Definition at line 482 of file MDetector/Module.h.

typedef boost::multi_index_container< IdTuple, boost::multi_index::indexed_by< boost::multi_index::ordered_unique< boost::multi_index::tag<ChannelTag>, boost::multi_index::member< IdTuple, int, &IdTuple::fChannelId > >, boost::multi_index::ordered_unique< boost::multi_index::tag<PixelTag>, boost::multi_index::member< IdTuple, int, &IdTuple::fPixelId > >, boost::multi_index::ordered_unique< boost::multi_index::tag<ScintillatorTag>, boost::multi_index::member< IdTuple, int, &IdTuple::fScintillatorId > >, boost::multi_index::ordered_unique< boost::multi_index::tag<FiberTag>, boost::multi_index::member< IdTuple, int, &IdTuple::fFiberId > > > > mdet::Module::IndexContainer

private

Definition at line 478 of file MDetector/Module.h.

typedef utl::ConsecutiveEnumFactory<PhotoDetector, eSiPM, PhotoDetectorTags> mdet::Module::PhotoDetectorCreator

Convenience typedef for creation of PhotoDetector enumerators.

Definition at line 114 of file MDetector/Module.h.

typedef std::string mdet::Module::PhotoDetectorForConfig

private

Definition at line 433 of file MDetector/Module.h.

typedef ScintillatorGroup::ConstIterator mdet::Module::ScintillatorConstIterator

Scintillator handling.

Convenience typedef for const iterator over the contained mdet::Scintillator instances.

Definition at line 123 of file MDetector/Module.h.

typedef MComponentGroup<Module, Scintillator, det::ParentCreator>::Type mdet::Module::ScintillatorGroup

private

Type for the set of associated mdet::Scintillator.

Definition at line 62 of file MDetector/Module.h.

Member Enumeration Documentation

enum mdet::Module::AreaKind

Kind of module based on its area.

Enumeration for module typification based on total (cross-sectional) area (summed over Scintillators).

Explicitly states the enum values as of the I/O is based on the integer values.

Originally this was thought as a typification based on lenght, but that "reveals", so to say, the underlying strip shape. Given the itention to (try to) hide that fact, the enumeration has been changed to a typification based on area, which ends being the same. It may be said, also, that talking about area reveals the nearly 2-D shape of the strips, given the fact the theirs height is negligible in comparisson with the leght and width. But it we think about cross-sectional area we can talk perfectly about area without implying 2-D objects. Of course, the cross-section depends on the direction of the impinging particles, so this isn't an absolute typification: it has to be tought in the light of the "designed for" incoming directions. Well , way too much talking: it's a dammed two value enumeration used to label the modules!

Enumerator
eSmall
eLarge

Definition at line 94 of file MDetector/Module.h.

enum mdet::Module::PhotoDetector

Enumerator
ePMT
eSiPM

Definition at line 99 of file MDetector/Module.h.

Constructor & Destructor Documentation

mdet::Module::Module	(	const int	mId,
		const det::VManager::IndexMap &	parentMap,
		const Counter &	parent
	)

private

Constructs the Module (obviously!).

Parameters

mId	The identifier to be used.
parentMap	The identifiers of the parent within the hierarchy.
parent	The parent mdet::Counter.

A reference to the parent is kept in this class and part of the construction is delegated to the first super-class.

This method is kept private creation of these objects is not meant to be performed by client code. See the related friendship declaration.

See Also: mdet::MDectectorComponent::Type

Definition at line 70 of file MDetector/Module.cc.

References det::DetectorComponent< C, ManagerProvider >::AddIdMessage(), fAreaKind, FATAL, fBackEndSiPM, fBackgroundMuonsFlux, fFibers, fFrontEnd, fFrontEndSiPM, fPhotoDetector, fPMT, fScintillators, fSiPMArray, det::DetectorComponent< C, ManagerProvider >::GetIdsMap(), GetPhotoDetector(), INFO, and det::DetectorComponent< C, ManagerProvider >::Register().

mdet::Module::~Module ( )

inlineprivate

Definition at line 393 of file MDetector/Module.h.

Member Function Documentation

template<class C , class ManagerProvider >

det::DetectorComponent< C, ManagerProvider >::AddIdMessage ( o )

inherited

Referenced by mdet::PMT::GetCrossTalk(), mdet::SiPMArray::GetRows(), mdet::PMT::GetRows(), mdet::PMT::InitPixels(), mdet::SiPMArray::InitSiPMs(), and Module().

int mdet::Module::ChannelToFiberId ( const int cId ) const

inline

Definition at line 283 of file MDetector/Module.h.

References fIndexByChannel.

Referenced by MDetectorTest::testComponentAssignment().

int mdet::Module::ChannelToPixelId ( const int cId ) const

inline

Definition at line 280 of file MDetector/Module.h.

References fIndexByChannel.

Referenced by otoa::MD2ADST::MakeChannel(), and MDetectorTest::testComponentAssignment().

int mdet::Module::ChannelToScintillatorId ( const int cId ) const

inline

Definition at line 277 of file MDetector/Module.h.

References fIndexByChannel.

Referenced by otoa::MD2ADST::MakeChannel(), and MDetectorTest::testComponentAssignment().

bool mdet::Module::ExistsChannel ( const int cId ) const

inline

Definition at line 250 of file MDetector/Module.h.

References fFrontEnd.

bool mdet::Module::ExistsChannelSiPM ( const int cId ) const

inline

Definition at line 254 of file MDetector/Module.h.

References fFrontEndSiPM.

bool mdet::Module::ExistsFiber ( const int fId ) const

inline

Definition at line 258 of file MDetector/Module.h.

References fFibers.

bool mdet::Module::ExistsPixel ( const int pId ) const

inline

Definition at line 262 of file MDetector/Module.h.

References fPMT.

bool mdet::Module::ExistsScintillator ( const int sId ) const

inline

Definition at line 246 of file MDetector/Module.h.

References fScintillators.

bool mdet::Module::ExistsSiPM ( const int pId ) const

inline

Definition at line 266 of file MDetector/Module.h.

References fSiPMArray.

FiberConstIterator mdet::Module::FibersBegin ( ) const

inline

Begin iterator over the contained fibers.

Definition at line 138 of file MDetector/Module.h.

References fFibers.

Referenced by GetShortestFiber(), and MDetectorTest::testBasic().

FiberConstIterator mdet::Module::FibersEnd ( ) const

inline

End iterator over the contained fibers.

Definition at line 141 of file MDetector/Module.h.

References fFibers.

Referenced by GetShortestFiber(), and MDetectorTest::testBasic().

int mdet::Module::FiberToChannelId ( const int fId ) const

inline

Definition at line 286 of file MDetector/Module.h.

References fIndexByFiber.

Referenced by MDetectorTest::testComponentAssignment().

int mdet::Module::FiberToPixelId ( const int fId ) const

inline

Definition at line 292 of file MDetector/Module.h.

References fIndexByFiber.

Referenced by MDetectorTest::testComponentAssignment().

int mdet::Module::FiberToScintillatorId ( const int fId ) const

inline

Definition at line 289 of file MDetector/Module.h.

References fIndexByFiber.

Referenced by MDetectorTest::testComponentAssignment().

double mdet::Module::GetArea ( ) const

Definition at line 166 of file MDetector/Module.cc.

References is(), ScintillatorsBegin(), and ScintillatorsEnd().

Module::AreaKind mdet::Module::GetAreaKind ( ) const

Definition at line 135 of file MDetector/Module.cc.

References utl::ConsecutiveEnumFactory< EnumType, last, tags, NoConversionPolicy, first >::Create(), fAreaKind, and det::DetectorComponent< C, ManagerProvider >::GetData().

Referenced by MuonCounterViewerAG::MuonCounterViewer::Run().

const BackEndSiPM & mdet::Module::GetBackEndSiPM ( ) const

Definition at line 64 of file MDetector/Module.cc.

References fBackEndSiPM.

Referenced by MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::ProcessPulsesIntegrator(), MdCounterSimulatorAG::MdCounterSimulator::ProcessPulsesIntegrator(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::SampleTraceADC(), and MdCounterSimulatorAG::MdCounterSimulator::SampleTraceADC().

double mdet::Module::GetBackgroundMuonsFlux ( ) const

Background muons Flux.

The mean flux of background muons; total flux crossing unit horizontal area from above. In 1 / distance^2 / time.

TODO What about the energy? XXX Not used so far.

Definition at line 143 of file MDetector/Module.cc.

References fBackgroundMuonsFlux, and det::DetectorComponent< C, ManagerProvider >::GetData().

const Channel& mdet::Module::GetChannel ( int cId ) const

inline

Definition at line 248 of file MDetector/Module.h.

References fFrontEnd.

Referenced by MDetectorTest::testComponentAssignment().

template<class Component >

const Channel& mdet::Module::GetChannelFor ( const Component & c ) const

inline

Returns the associated mdet::Channel.

Parameters

c	The component for which the associated channel is desired.

Precondition: The c has to belong to this. Thanks to (plain) friendship call GetChannels.

Definition at line 231 of file MDetector/Module.h.

References mdet::Module::IdTuple::fChannelId, and fFrontEnd.

Referenced by MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::SimulateElectronics(), MdCounterSimulatorAG::MdCounterSimulator::SimulateElectronics(), and MDetectorTest::testComponentAssignment().

const ChannelSiPM& mdet::Module::GetChannelSiPM ( int cId ) const

inline

Definition at line 252 of file MDetector/Module.h.

References fFrontEndSiPM.

template<class Component >

const ChannelSiPM& mdet::Module::GetChannelSiPMFor ( const Component & c ) const

inline

Returns the associated mdet::ChannelSiPM.

Parameters

c	The component for which the associated channel of the SiPM is desired.

Precondition: The c has to belong to this. Thanks to (plain) friendship call GetChannelSiPMs.

Definition at line 221 of file MDetector/Module.h.

References mdet::Module::IdTuple::fChannelId, and fFrontEndSiPM.

Referenced by MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::SimulateElectronics(), and MdCounterSimulatorAG::MdCounterSimulator::SimulateElectronics().

template<class Config >

double det::MPositionable< Config >::GetComponent1 ( ) const

protectedvirtualinherited

First component of the position vector.

It could be x or r, according to the type determined by GetCoordinateType.

See Also: utl::Vector

Definition at line 304 of file MPositionable.h.

template<class Config >

double det::MPositionable< Config >::GetComponent2 ( ) const

protectedvirtualinherited

Second component of the position vector.

See Also: GetComponent1

Definition at line 313 of file MPositionable.h.

template<class Config >

double det::MPositionable< Config >::GetComponent3 ( ) const

protectedvirtualinherited

Third component of the position vector.

See Also: GetComponent1

Definition at line 317 of file MPositionable.h.

template<class Config >

MPositionable< Config >::CoordinateType det::MPositionable< Config >::GetCoordinateType ( ) const

protectedvirtualinherited

Coordinate type.

See Also: utl::Vector::CoordinateType

Definition at line 333 of file MPositionable.h.

const Counter & mdet::Module::GetCounter ( ) const

The parent counter.

Definition at line 28 of file MDetector/Module.cc.

References fCounter.

Referenced by MuonCounterViewerAG::ScintBuilder::Box(), mdet::Scintillator::ComputeGroundPlane(), GetDepth(), GetReferenceCoordinateSystem(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::PlotChannel(), MdCounterSimulatorAG::MdCounterSimulator::PlotChannel(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::PlotIntegrator(), MdCounterSimulatorAG::MdCounterSimulator::PlotIntegrator(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::ProcessPulses(), and MdCounterSimulatorAG::MdCounterSimulator::ProcessPulses().

template<class C , class ManagerProvider >

template<typename T , template< typename > class P>

T& det::DetectorComponent< C, ManagerProvider >::GetData	(	P< T > &	d,
		const std::string &	p
	)		const

inlineprotectedinherited

Common utility function for configuration.

Retrieves data from the provided (via this class' template parameter) Manager instance and goes on with initialization.

Parameters

d	An object of type P<T> wrapping the real of type T.
p	Property name. The template class P must provide: A bool-like interface (operator ! and a conversion (possibly implicit to bool) to query initialization. An T& operator() to retrieve the actual data. P& operator=(T const ptr) for proper initialization. As of the wrapped class T, it must be default constructible.

This is fullfilled by, for instance, utl::ShadowPtr as P and built-in types for T.

Definition at line 191 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::d, and G4StationSimulatorOG::p.

template<class C , class ManagerProvider >

template<typename T >

T& det::DetectorComponent< C, ManagerProvider >::GetData	(	T &	d,
		const std::string &	p
	)		const

inlineprotectedinherited

Common utility function for configuration.

Overload without wrapping parameter: directly gets the datum as parameter. Typically invoked with T equal to a primitive type (int, double, so on).

Definition at line 232 of file DetectorComponent.h.

double mdet::Module::GetDepth ( ) const

The depth of the origin of the module. This quantity is positive for an underground module.

Definition at line 200 of file MDetector/Module.cc.

References det::MPositionable< Config >::GetPosition().

Referenced by MdCounterSimulatorAG::MdCounterSimulator::SimulatePulses().

double mdet::Module::GetDepth ( const utl::Point & p ) const

Definition at line 208 of file MDetector/Module.cc.

References mdet::Counter::GetAssociatedTank(), GetCounter(), sdet::Station::GetLocalCoordinateSystem(), and sdet::Station::GetPosition().

template<class Config >

double det::MPositionable< Config >::GetEulerPhi ( ) const

protectedvirtualinherited

First Euler angle for rotation over (original) z.

Definition at line 321 of file MPositionable.h.

Referenced by GetPhi0().

template<class Config >

double det::MPositionable< Config >::GetEulerPsi ( ) const

protectedvirtualinherited

Third Euler angle for rotation over (intermediate) z.

Definition at line 329 of file MPositionable.h.

template<class Config >

double det::MPositionable< Config >::GetEulerTheta ( ) const

protectedvirtualinherited

Second Euler angle for rotation over (intermediate) x.

Definition at line 325 of file MPositionable.h.

const Fiber& mdet::Module::GetFiber ( int fId ) const

inline

Definition at line 256 of file MDetector/Module.h.

References fFibers.

Referenced by MDetectorTest::testComponentAssignment().

template<class Component >

const Fiber& mdet::Module::GetFiberFor ( const Component & c ) const

inline

Linking between fibers, scintillators, channels and pixels.

Put all these methods here to allow the Module to configure how the set-up of its internal components is made and to handle the relations between them.

In principle one can tought to allow, for instance, a many-to-one Fiber-to-Scintillator relationship: ie having multiple fibers on a Scintillator. In that case, instead of a single instance iterators would be required. Also it could be thought to have two pixels related to a single Fiber.

By the time being, neglect that possibilities; but nevertheless seems proper to deal with the relationships here at the module level. If any of those changes is needed then the correspoding methods defined currently here would need to be interpreted, say, as "principal" linking: that is, that return the main Fiber for a Scint and then the secondaries (or all) should be accesed by an iterator-returning method.

Also, defining these linking-methods here concentrates the linking and doesn't spread that over several classes: for instance, if another component is incorported (and has to be linked to a fiber, and so to a pixel and a scintillator) only this class would have to be modified.

At last, despite that these accesors are template functions, the actual arguments are checked to be one of the meaninful components: be it mdet::Fiber, mdet::Pixel or mdet::Scintillator. Returns the associated mdet::Fiber.

Parameters

c	The component for which the associated fiber is desired.

Precondition: The c has to belong to this.

Definition at line 182 of file MDetector/Module.h.

References mdet::Module::IdTuple::fFiberId, and fFibers.

Referenced by G4StationSimulatorOG::G4StationConstruction::AssembleUMD(), G4StationSimulatorOG::G4UMDScintStripAction::ProcessHits(), MdCounterSimulatorAG::MdCounterSimulator::SimulatePulses(), and MDetectorTest::testComponentAssignment().

const FrontEnd & mdet::Module::GetFrontEnd ( ) const

Definition at line 50 of file MDetector/Module.cc.

References fFrontEnd.

Referenced by MdPatternFinderAG::MdPatternFinder::FillChannelRecData(), MdMuonEstimatorAG::MdMuonEstimator::FillChannelsOn(), MdMuonCounterAG::MdMuonCounter::FillChannelsOn(), MdMuonCounterAG::MdMuonCounter::FillModuleRecData(), MdMuonEstimatorAG::MdMuonEstimator::GetSamplingTime(), MdMuonEstimatorAG::MdMuonEstimator::GetTraceLength(), MdMuonCounterAG::MdMuonCounter::GetTraceOffset(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::GetTriggerTimeFromSD(), MdMuonEstimatorAG::MdMuonEstimator::LoadPatternMatchesInModuleRecData(), otoa::MD2ADST::MakeModule(), MdPileUpCorrecterAG::InhibitionStrategy::operator()(), MdPileUpCorrecterAG::MdPileUpCorrecter::Run(), UnderGrdInjectorAG::UnderGrdInjector::Run(), MdMuonCounterAG::MdMuonCounter::Run(), MDetectorTest::testBrokenChannelsAssignment(), and MDetectorTest::testComponentAssignment().

const FrontEndSiPM & mdet::Module::GetFrontEndSiPM ( ) const

Definition at line 57 of file MDetector/Module.cc.

References fFrontEndSiPM.

Referenced by MdPatternFinderAG::MdPatternFinder::FillChannelRecData(), MdMuonEstimatorAG::MdMuonEstimator::FillChannelsOn(), MdMuonCounterAG::MdMuonCounter::FillChannelsOn(), MdMuonCounterAG::MdMuonCounter::FillModuleRecData(), MdMuonEstimatorAG::MdMuonEstimator::GetSamplingTime(), MdMuonEstimatorAG::MdMuonEstimator::GetTraceLength(), MdMuonCounterAG::MdMuonCounter::GetTraceOffset(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::GetTriggerTimeFromSD(), MdCounterSimulatorAG::MdCounterSimulator::GetTriggerTimeFromSD(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::InjectDigitalNoise(), MdCounterSimulatorAG::MdCounterSimulator::InjectDigitalNoise(), MdMuonEstimatorAG::MdMuonEstimator::LoadPatternMatchesInModuleRecData(), otoa::MD2ADST::MakeModule(), MdPileUpCorrecterAG::InhibitionStrategy::operator()(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::ProcessPulsesIntegrator(), MdCounterSimulatorAG::MdCounterSimulator::ProcessPulsesIntegrator(), MdPileUpCorrecterAG::MdPileUpCorrecter::Run(), UnderGrdInjectorAG::UnderGrdInjector::Run(), and MdMuonCounterAG::MdMuonCounter::Run().

template<class C , class ManagerProvider >

int det::DetectorComponent< C, ManagerProvider >::GetId ( ) const

inlineinherited

The id of this component.

Definition at line 105 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::fId.

Referenced by G4StationSimulatorOG::G4StationConstruction::AssembleUMD(), MuonCounterViewerAG::ScintBuilder::Box(), MdLDFFinderAG::Likelihood2::CalculateCandidateLikelihood(), MdLDFFinderAG::Likelihood3::CalculateCandidateLikelihood(), MdLDFFinderAG::Likelihood::CalculateCandidateLikelihood(), MdLDFFinderAG::MdLDFFinder::CalculateChi2(), MdLDFFinderAG::MdLDFFinder::FillModulesShowerPlaneDistances(), EdepSimulatorAG::PrimaryGenerator::GeneratePrimaries(), mdet::PMT::GetCrossTalk(), det::DetectorComponent< C, ManagerProvider >::Init(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::OptoElectronics(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::PlotChannel(), MdCounterSimulatorAG::MdCounterSimulator::PlotChannel(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::PlotIntegrator(), MdCounterSimulatorAG::MdCounterSimulator::PlotIntegrator(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::ProcessPulses(), MdCounterSimulatorAG::MdCounterSimulator::ProcessPulses(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::ProcessPulsesIntegrator(), MdCounterSimulatorAG::MdCounterSimulator::ProcessPulsesIntegrator(), MdEventSelectorAG::MdEventSelector::RejectTimeOutliers(), EdepSimulatorAG::EdepSimulator::Run(), MuonCounterViewerAG::MuonCounterViewer::Run(), MdCounterSimulatorAG::MdCounterSimulator::RunFromMEventScintillatorSimulated(), MdLDFFinderAG::MdLDFFinder::SetLdfResiduals(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::SimulateElectronics(), MdCounterSimulatorAG::MdCounterSimulator::SimulateElectronics(), and MdCounterSimulatorAG::MdCounterSimulator::SimulatePulses().

template<class C , class ManagerProvider >

const VManager::IndexMap& det::DetectorComponent< C, ManagerProvider >::GetIdsMap ( ) const

inlineinherited

The id identifying this component within its detector hierarhy.

Definition at line 111 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::fIdsMap.

Referenced by mdet::Counter::GetModules(), Module(), mdet::PMT::PMT(), mdet::SiPMArray::Update(), mdet::FrontEnd::Update(), mdet::FrontEndSiPM::Update(), mdet::PMT::Update(), and Update().

template<class Config >

utl::CoordinateSystemPtr det::MPositionable< Config >::GetLocalCoordinateSystem ( ) const

inherited

Local system based on position and configured rotations.

Definition at line 342 of file MPositionable.h.

References utl::TransformerConstructor< Policy >::RotationX(), utl::TransformerConstructor< Policy >::RotationZ(), and utl::TransformerConstructor< Policy >::Translation().

Referenced by otoa::MD2ADST::AddParticle(), G4StationSimulatorOG::G4StationConstruction::AssembleUMD(), EdepSimulatorAG::PrimaryGenerator::GeneratePrimaries(), GroundPropagatorAG::PrimaryGenerator::GeneratePrimaries(), mdet::Fiber::GetReferenceCoordinateSystem(), mdet::Scintillator::GetReferenceCoordinateSystem(), GetReferenceCoordinateSystem(), G4XTankSimulatorAG::G4XTankSimulator::Init(), otoa::MD2ADST::MakeSimCounter(), G4StationSimulatorOG::G4UMDScintStripAction::ProcessHits(), UnderGrdInjectorAG::UnderGrdInjector::Run(), GroundPropagatorAG::GroundPropagator::Run(), EdepSimulatorAG::EdepSimulator::Run(), MuonCounterViewerAG::MuonCounterViewer::Run(), and MdCounterSimulatorAG::MdCounterSimulator::SimulatePulses().

ULong64_t mdet::Module::GetMask ( ) const

Definition at line 192 of file MDetector/Module.cc.

References fFrontEnd.

unsigned int mdet::Module::GetNumberOfScintillators ( ) const

Definition at line 179 of file MDetector/Module.cc.

References is(), ScintillatorsBegin(), and ScintillatorsEnd().

double mdet::Module::GetPhi0 ( ) const

Definition at line 158 of file MDetector/Module.cc.

References det::MPositionable< Config >::GetEulerPhi().

Referenced by G4StationSimulatorOG::G4StationConstruction::AssembleUMD(), MdBiasCorrecterAG::MdBiasCorrecter::CorrectBias(), and MdCornerClippingCorrecterAG::MdCornerClippingCorrecter::FillCornerClippingProbability().

Module::PhotoDetector mdet::Module::GetPhotoDetector ( ) const

Definition at line 151 of file MDetector/Module.cc.

References utl::ConsecutiveEnumFactory< EnumType, last, tags, NoConversionPolicy, first >::Create(), fPhotoDetector, and det::DetectorComponent< C, ManagerProvider >::GetData().

Referenced by IsSiPM(), and Module().

const Pixel& mdet::Module::GetPixel ( int pId ) const

inline

Definition at line 260 of file MDetector/Module.h.

References fPMT.

Referenced by MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::SimulateElectronics(), MdCounterSimulatorAG::MdCounterSimulator::SimulateElectronics(), and MDetectorTest::testComponentAssignment().

template<class Component >

const Pixel& mdet::Module::GetPixelFor ( const Component & c ) const

inline

Returns the associated mdet::Pixel.

Parameters

c	The component for which the associated pixel is desired.

Precondition: The c has to belong to this. Thanks to (plain) friendship call GetPixels.

Definition at line 201 of file MDetector/Module.h.

References mdet::Module::IdTuple::fPixelId, and fPMT.

Referenced by MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::OptoElectronics(), MdCounterSimulatorAG::MdCounterSimulator::RunFromMEventScintillatorSimulated(), MdCounterSimulatorAG::MdCounterSimulator::SimulatePulses(), and MDetectorTest::testComponentAssignment().

const PMT & mdet::Module::GetPMT ( ) const

Definition at line 36 of file MDetector/Module.cc.

References fPMT.

Referenced by MDetectorTest::testComponentAssignment().

template<class Config >

utl::Point det::MPositionable< Config >::GetPosition ( ) const

inherited

This object position, based the configured components and the reference coordinate system. The return type is by-copy as of the general recommendation due to Bugzilla's report #307. Also this topic was referred by in 'Point copy vs reference, GetPosition and report #307.', see auger-offline-devel archives for January 2009.

Definition at line 337 of file MPositionable.h.

Referenced by G4StationSimulatorOG::G4StationConstruction::AssembleUMD(), MdLDFFinderAG::Likelihood2::CalculateCandidateLikelihood(), MdLDFFinderAG::Likelihood3::CalculateCandidateLikelihood(), MdLDFFinderAG::Likelihood::CalculateCandidateLikelihood(), MdLDFFinderAG::MdLDFFinder::CalculateChi2(), MdLDFFinderAG::VMinMethodFunctor::CalculateSilentLikelihood(), MdMuonCounterAG::MdMuonCounter::ComputeSignalT50(), otoa::Detector2ADST::FillDetector(), MdLDFFinderAG::MdLDFFinder::FillModulesShowerPlaneDistances(), EdepSimulatorAG::PrimaryGenerator::GeneratePrimaries(), GroundPropagatorAG::PrimaryGenerator::GeneratePrimaries(), GetDepth(), G4XTankSimulatorAG::G4XTankSimulator::Init(), UniversalityFitter::UniversalityFitter::InitBarilocheReconstruction(), otoa::MD2ADST::MakeModule(), MuonCounterViewerAG::MuonCounterViewer::Run(), MdLDFFinderAG::MdLDFFinder::SetLdfResiduals(), MdGeometryFitterAG::MdGeometryFitter::SetTimeData(), and MDetectorTest::testBasic().

utl::CoordinateSystemPtr mdet::Module::GetReferenceCoordinateSystem ( ) const

privatevirtual

The reference is the local coordinate system of mdet::Counter.

See Also: mdet::Counter::GetLocalCoordinateSystem

Implements det::MPositionable< Config >.

Definition at line 127 of file MDetector/Module.cc.

References GetCounter(), and det::MPositionable< Config >::GetLocalCoordinateSystem().

const Scintillator& mdet::Module::GetScintillator ( int sId ) const

inline

Direct accesor by id.

These methods access directly the components by theirs id. They shouldn't be used to retrieve, say, the channel associated to a scintillator (see the linking related methods); but to just retrieve a known-by-id component within the module.

Definition at line 244 of file MDetector/Module.h.

References fScintillators.

Referenced by MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::OptoElectronics(), G4StationSimulatorOG::G4UMDScintStripAction::ProcessHits(), EdepSimulatorAG::EdepSimulator::Run(), MdCounterSimulatorAG::MdCounterSimulator::RunFromMEvent(), MdCounterSimulatorAG::MdCounterSimulator::RunFromMEventScintillatorSimulated(), and MDetectorTest::testComponentAssignment().

template<class Component >

const Scintillator& mdet::Module::GetScintillatorFor ( const Component & c ) const

inline

Returns the associated mdet::Scintillator.

Parameters

c	The component for which the associated scintillator is desired.

Precondition: The c has to belong to this.

Definition at line 191 of file MDetector/Module.h.

References mdet::Module::IdTuple::fScintillatorId, and fScintillators.

Referenced by mdet::Fiber::GetOnScintillatorLength(), mdet::Fiber::GetReferenceCoordinateSystem(), and MDetectorTest::testComponentAssignment().

double mdet::Module::GetShortestFiber ( ) const

Definition at line 238 of file MDetector/Module.cc.

References FibersBegin(), and FibersEnd().

Referenced by G4StationSimulatorOG::G4StationConstruction::AssembleUMD().

const SiPM& mdet::Module::GetSiPM ( const int pId ) const

inline

Definition at line 264 of file MDetector/Module.h.

References fSiPMArray.

Referenced by MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::SimulateElectronics(), and MdCounterSimulatorAG::MdCounterSimulator::SimulateElectronics().

const SiPMArray & mdet::Module::GetSiPMArray ( ) const

Definition at line 43 of file MDetector/Module.cc.

References fSiPMArray.

template<class Component >

const SiPM& mdet::Module::GetSiPMFor ( const Component & c ) const

inline

Returns the associated mdet::SiPM.

Parameters

c	The component for which the associated SiPM is desired.

Precondition: The c has to belong to this. Thanks to (plain) friendship call GetSiPMS.

Definition at line 211 of file MDetector/Module.h.

References mdet::Module::IdTuple::fPixelId, and fSiPMArray.

Referenced by MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::OptoElectronics(), MdCounterSimulatorAG::MdCounterSimulator::RunFromMEventScintillatorSimulated(), and MdCounterSimulatorAG::MdCounterSimulator::SimulatePulses().

bool mdet::Module::IsSiPM ( ) const

Definition at line 231 of file MDetector/Module.cc.

References eSiPM, and GetPhotoDetector().

Referenced by MdPatternFinderAG::MdPatternFinder::FillChannelRecData(), MdMuonEstimatorAG::MdMuonEstimator::FillChannelsOn(), MdMuonCounterAG::MdMuonCounter::FillChannelsOn(), MdMuonCounterAG::MdMuonCounter::FillModuleRecData(), MdMuonEstimatorAG::MdMuonEstimator::GetSamplingTime(), MdMuonEstimatorAG::MdMuonEstimator::GetTraceLength(), MdMuonCounterAG::MdMuonCounter::GetTraceOffset(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::GetTriggerTimeFromSD(), MdMuonEstimatorAG::MdMuonEstimator::LoadPatternMatchesInModuleRecData(), otoa::MD2ADST::MakeModule(), MdPileUpCorrecterAG::InhibitionStrategy::operator()(), io::Counter_ROOT::operator>>(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::OptoElectronics(), MdPileUpCorrecterAG::MdPileUpCorrecter::Run(), UnderGrdInjectorAG::UnderGrdInjector::Run(), MdMuonCounterAG::MdMuonCounter::Run(), MdCounterSimulatorAG::MdCounterSimulator::RunFromMEventScintillatorSimulated(), MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::SimulateElectronics(), MdCounterSimulatorAG::MdCounterSimulator::SimulateElectronics(), MdCounterSimulatorAG::MdCounterSimulator::SimulatePulses(), and Update().

int mdet::Module::PixelToChannelId ( const int pId ) const

inline

Definition at line 301 of file MDetector/Module.h.

References fIndexByPixel.

Referenced by MDetectorTest::testComponentAssignment().

int mdet::Module::PixelToFiberId ( const int pId ) const

inline

Definition at line 298 of file MDetector/Module.h.

References fIndexByPixel.

Referenced by MDetectorTest::testComponentAssignment().

int mdet::Module::PixelToScintillatorId ( const int pId ) const

inline

Definition at line 295 of file MDetector/Module.h.

References fIndexByPixel.

Referenced by MDetectorTest::testComponentAssignment().

template<class C , class ManagerProvider >

void det::DetectorComponent< C, ManagerProvider >::Register ( utl::VValidated & v )

inlineprotectedinherited

Register the field so as to allow handling it.

Definition at line 298 of file DetectorComponent.h.

References det::DetectorComponent< C, ManagerProvider >::fFields.

Referenced by mdet::ChannelSiPM::ChannelSiPM(), mdet::Counter::Counter(), Module(), and mdet::Scintillator::Scintillator().

ScintillatorConstIterator mdet::Module::ScintillatorsBegin ( ) const

inline

Begin iterator over the contained scitillators.

Definition at line 126 of file MDetector/Module.h.

References fScintillators.

Referenced by G4StationSimulatorOG::G4StationConstruction::AssembleUMD(), MdMuonCounterAG::MdMuonCounter::FillModuleRecData(), GetArea(), GetNumberOfScintillators(), MdPileUpCorrecterAG::MdPileUpCorrecter::Run(), MuonCounterViewerAG::MuonCounterViewer::Run(), MdMuonEstimatorAG::MdMuonEstimator::SetSegmentationAndArea(), and MDetectorTest::testBasic().

ScintillatorConstIterator mdet::Module::ScintillatorsEnd ( ) const

inline

End iterator over the contained scintillators.

Definition at line 129 of file MDetector/Module.h.

References fScintillators.

Referenced by G4StationSimulatorOG::G4StationConstruction::AssembleUMD(), GetArea(), GetNumberOfScintillators(), MuonCounterViewerAG::MuonCounterViewer::Run(), and MDetectorTest::testBasic().

int mdet::Module::ScintillatorToChannelId ( const int sId ) const

inline

Definition at line 268 of file MDetector/Module.h.

References fIndexByScintillator.

Referenced by MDetectorTest::testComponentAssignment().

int mdet::Module::ScintillatorToFiberId ( const int sId ) const

inline

Definition at line 274 of file MDetector/Module.h.

References fIndexByScintillator.

Referenced by MDetectorTest::testComponentAssignment().

int mdet::Module::ScintillatorToPixelId ( const int sId ) const

inline

Definition at line 271 of file MDetector/Module.h.

References fIndexByScintillator.

Referenced by MDetectorTest::testComponentAssignment().

template<class C , class ManagerProvider >

s<< " ]"; } DetectorComponent(int i, const VManager::IndexMap& parentMap) : fId(i), fIdsMap(parentMap) { Init(); } DetectorComponent(const int i) : fId(i) { Init(); } virtual ~DetectorComponent() { } virtual void Update(const bool invalidateData, const bool ) { for (FieldsContainer::iterator i = fFields.begin(), e = fFields.end(); i != e; ++i) (*i)-> det::DetectorComponent< C, ManagerProvider >::SetValid ( false )

protectedinherited

template<class C , class ManagerProvider >

return o det::DetectorComponent< C, ManagerProvider >::str ( )

inherited

Referenced by MdCornerClippingCorrecterAG::MdCornerClippingCorrecter::Run(), MdBiasCorrecterAG::MdBiasCorrecter::Run(), MdPileUpCorrecterAG::MdPileUpCorrecter::Run(), MdPatternFinderAG::MdPatternFinder::Run(), MdMuonEstimatorAG::MdMuonEstimator::Run(), and MdMuonCounterAG::MdMuonCounter::Run().

void mdet::Module::Update	(	const bool	invalidateData,
		const bool	invalidateComponents
	)

private

Definition at line 249 of file MDetector/Module.cc.

References FATAL, mdet::Module::IdTuple::fChannelId, mdet::Module::IdTuple::fFiberId, fFibers, fIndexByChannel, mdet::Module::IdTuple::fPixelId, fPMT, mdet::Module::IdTuple::fScintillatorId, fScintillators, fSiPMArray, mdet::Pixel::GetChannelScintillatorFiberIds(), mdet::SiPM::GetChannelSiPMScintillatorFiberIds(), det::DetectorComponent< C, ManagerProvider >::GetIdsMap(), INFO, IsSiPM(), and Update().

Friends And Related Function Documentation

template<class T >

void boost::checked_delete ( T * )

friend

Friendship for destruction. Depends on det::ComponentGroup innards.

friend struct det::ComponentUpdater

friend

See mdet::Counter.

Definition at line 409 of file MDetector/Module.h.

friend class det::MPositionable< Module >

friend

Definition at line 396 of file MDetector/Module.h.

friend struct det::ParentCreator

friend

Definition at line 406 of file MDetector/Module.h.

Member Data Documentation

const char *const mdet::Module::AreaKindTags = { "small", "large" }

static

Tags for textual representation.

Definition at line 105 of file MDetector/Module.h.

template<class C , class ManagerProvider >

T & det::DetectorComponent< T >::const

inherited

Initial value:

{

std::ostringstream o

Returns the message that identifies this component.

To make unambiguous the call in the wrapped version.

This method is just a convenience informative method, not meant to be used for control-flow logic (please do not parse this!).

See Also: AddIdMessage(std::ostringstream& s) const.

In the wrapped version, when wrapped type is itself a wrapping template, the compiler has a hard time to decide what to do. So this function was created with the logic formerly contained in the non-wrapped version.

Related to this, see http://www.gotw.ca/publications/mill17.htm.

Definition at line 125 of file DetectorComponent.h.

template<class C , class ManagerProvider >

const DetectorUserData<C>& det::DetectorComponent< C, ManagerProvider >::const

inherited

Initial value:

{
      if (!fUserData) {

        std::string dataMngr;

        GetDataNoWrap(dataMngr, "userData");

        DetectorUserData<C>* const t = new DetectorUserData<C>();

        DetectorUserData<C>::Load(t, dataMngr);

        fUserData = t;
      }
      return *fUserData

Retrieve the user custom data.

Definition at line 137 of file DetectorComponent.h.

template<class C , class ManagerProvider >

template<typename T1 , typename T2 , template< typename, typename > class P>

T1& det::DetectorComponent< C, ManagerProvider >::const

protectedinherited

Initial value:

{

      return GetDataUnwrap<T1>(d, p)

Doubly-templated variation of common utility.

Needed to be added in response to the addition of a 2nd policy parameter to utl::ShadowPtr.

Definition at line 203 of file DetectorComponent.h.

template<class C , class ManagerProvider >

template<typename T >

T& det::DetectorComponent< C, ManagerProvider >::const

protectedinherited

Initial value:

{
      if (! d.IsValid()) {
        GetDataNoWrap(d.Get(), p);
        d.SetValid();
      }
      return d.Get()

Specialization for utl::Validated.

To make unambiguous the call in the wrapped version.

In the wrapped version, when wrapped type is itself a wrapping template, the compiler has a hard time to decide what to do. So this function was created with the logic formerly contained in the non-wrapped version.

Related to this, see http://www.gotw.ca/publications/mill17.htm.

Definition at line 216 of file DetectorComponent.h.

template<class C , class ManagerProvider >

void det::DetectorComponent< C, ManagerProvider >::const

protectedinherited

Initial value:

{

typedef det::VManager::IndexMap::const_iterator It

Message that identifies the component.

Streams-out a (human-readeable) message identifying the component in the hierarchy. It's meant to be used only in messages sent to the user as a way to identify the component that isssues the message (be it an information, warning or error one).

Maybe it'd have been more idiomatic to overload operator<< but I feel that it would be misleading to "stream out" a DetectorComponent.

Definition at line 250 of file DetectorComponent.h.

utl::Validated<AreaKindForConfig> mdet::Module::fAreaKind

mutableprivate

Definition at line 430 of file MDetector/Module.h.

Referenced by GetAreaKind(), and Module().

utl::ShadowPtr<BackEndSiPM> mdet::Module::fBackEndSiPM

private

Definition at line 423 of file MDetector/Module.h.

Referenced by GetBackEndSiPM(), and Module().

utl::Validated<double> mdet::Module::fBackgroundMuonsFlux

mutableprivate

Definition at line 437 of file MDetector/Module.h.

Referenced by GetBackgroundMuonsFlux(), and Module().

const Counter& mdet::Module::fCounter

private

Definition at line 425 of file MDetector/Module.h.

Referenced by GetCounter().

FiberGroup mdet::Module::fFibers

private

Definition at line 413 of file MDetector/Module.h.

Referenced by ExistsFiber(), FibersBegin(), FibersEnd(), GetFiber(), GetFiberFor(), Module(), and Update().

utl::ShadowPtr<FrontEnd> mdet::Module::fFrontEnd

private

Definition at line 419 of file MDetector/Module.h.

Referenced by ExistsChannel(), GetChannel(), GetChannelFor(), GetFrontEnd(), GetMask(), and Module().

utl::ShadowPtr<FrontEndSiPM> mdet::Module::fFrontEndSiPM

private

Definition at line 421 of file MDetector/Module.h.

Referenced by ExistsChannelSiPM(), GetChannelSiPM(), GetChannelSiPMFor(), GetFrontEndSiPM(), and Module().

IndexByChannelId& mdet::Module::fIndexByChannel

private

Definition at line 486 of file MDetector/Module.h.

Referenced by ChannelToFiberId(), ChannelToPixelId(), ChannelToScintillatorId(), and Update().

IndexByFiberId& mdet::Module::fIndexByFiber

private

Definition at line 489 of file MDetector/Module.h.

Referenced by FiberToChannelId(), FiberToPixelId(), and FiberToScintillatorId().

IndexByPixelId& mdet::Module::fIndexByPixel

private

Definition at line 487 of file MDetector/Module.h.

Referenced by PixelToChannelId(), PixelToFiberId(), and PixelToScintillatorId().

IndexByScintillatorId& mdet::Module::fIndexByScintillator

private

Definition at line 488 of file MDetector/Module.h.

Referenced by ScintillatorToChannelId(), ScintillatorToFiberId(), and ScintillatorToPixelId().

IndexContainer mdet::Module::fIndexRelations

private

Definition at line 485 of file MDetector/Module.h.

utl::Validated<PhotoDetectorForConfig> mdet::Module::fPhotoDetector

mutableprivate

Definition at line 435 of file MDetector/Module.h.

Referenced by GetPhotoDetector(), and Module().

utl::ShadowPtr<PMT> mdet::Module::fPMT

private

Definition at line 415 of file MDetector/Module.h.

Referenced by ExistsPixel(), GetPixel(), GetPixelFor(), GetPMT(), Module(), and Update().

ScintillatorGroup mdet::Module::fScintillators

private

Definition at line 411 of file MDetector/Module.h.

Referenced by ExistsScintillator(), GetScintillator(), GetScintillatorFor(), Module(), ScintillatorsBegin(), ScintillatorsEnd(), and Update().

utl::ShadowPtr<SiPMArray> mdet::Module::fSiPMArray

private

Definition at line 417 of file MDetector/Module.h.

Referenced by ExistsSiPM(), GetSiPM(), GetSiPMArray(), GetSiPMFor(), Module(), and Update().

template<class Config>

const std::string det::MPositionable< Config >::kComponent1Tag = "positionComponent1"

staticprotectedinherited

Tag for first vector component in config.

Definition at line 145 of file MPositionable.h.

template<class Config>

const std::string det::MPositionable< Config >::kComponent2Tag = "positionComponent2"

staticprotectedinherited

Tag for second vector component in config.

Definition at line 147 of file MPositionable.h.

template<class Config>

const std::string det::MPositionable< Config >::kComponent3Tag = "positionComponent3"

staticprotectedinherited

Tag for third vector component in config.

Definition at line 149 of file MPositionable.h.

const char *const mdet::Module::kComponentId = MHierarchyInfo::kComponentsIds[1]

static

Definition at line 118 of file MDetector/Module.h.

const char *const mdet::Module::kComponentName = MHierarchyInfo::kComponentsNames[1]

static

Definition at line 116 of file MDetector/Module.h.

template<class Config>

const std::string det::MPositionable< Config >::kCoordinateTypeTag = "coordinateType"

staticprotectedinherited

Tag for coordinate type selection. This tag defines the meaning of the three components.

See Also: utl::BasicVector::CoordinateType

Definition at line 143 of file MPositionable.h.

template<class Config>

const std::string det::MPositionable< Config >::kEulerPhiTag = "eulerPhi"

staticprotectedinherited

Tag for first rotation's Euler angle in config.

Definition at line 151 of file MPositionable.h.

template<class Config>

const std::string det::MPositionable< Config >::kEulerPsiTag = "eulerPsi"

staticprotectedinherited

Tag for third rotation's Euler angle in config.

Definition at line 155 of file MPositionable.h.

template<class Config>

const std::string det::MPositionable< Config >::kEulerThetaTag = "eulerTheta"

staticprotectedinherited

Tag for second rotation's Euler angle in config.

Definition at line 153 of file MPositionable.h.

const char *const mdet::Module::PhotoDetectorTags = { "PMT", "SiPM" }

static

Tags for textual representation.

Definition at line 111 of file MDetector/Module.h.

template<class C , class ManagerProvider >

s<< "id=" << GetId() << " ["; for (It i = GetIdsMap().begin(), e = GetIdsMap().end(); i != e; ++i) s << " " << i-> first<< "=" << i-> det::DetectorComponent< C, ManagerProvider >::second

protectedinherited

Definition at line 257 of file DetectorComponent.h.

Referenced by MdOptoElectronicSimulatorAG::MdOptoElectronicSimulator::SimulateElectronics(), and MdCounterSimulatorAG::MdCounterSimulator::SimulateElectronics().

The documentation for this class was generated from the following files:

Private Attributes
utl::Validated< AreaKindForConfig >	fAreaKind

utl::ShadowPtr< BackEndSiPM >	fBackEndSiPM

utl::Validated< double >	fBackgroundMuonsFlux

const Counter &	fCounter

FiberGroup	fFibers

utl::ShadowPtr< FrontEnd >	fFrontEnd

utl::ShadowPtr< FrontEndSiPM >	fFrontEndSiPM

IndexByChannelId &	fIndexByChannel

IndexByFiberId &	fIndexByFiber

IndexByPixelId &	fIndexByPixel

IndexByScintillatorId &	fIndexByScintillator

IndexContainer	fIndexRelations

utl::Validated < PhotoDetectorForConfig >	fPhotoDetector

utl::ShadowPtr< PMT >	fPMT

ScintillatorGroup	fScintillators

utl::ShadowPtr< SiPMArray >	fSiPMArray

Classes

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Types

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
