utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType > Class Template Reference

Template class allowing to store parameters and their covariances using enums to address them with a general interface. More...

#include "utl/ParameterStorage.h"

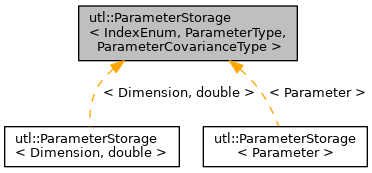

Inheritance diagram for utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >:

Public Types
typedef std::vector< IndexEnum >	EnumVector
typedef std::map< std::pair < IndexEnum, IndexEnum > , std::pair < ParameterCovarianceType, bool > >	ParameterCovarianceMap
typedef std::map< IndexEnum, std::pair< ParameterType, bool > >	ParameterMap

Public Member Functions
bool	HasParameter (const IndexEnum param) const
	determine whether a parameter has been set More...
	ParameterStorage (const std::string &storagename="Unnamed")
	Constructor that sets a name for the storage, helpful to get useful exception messages. More...
enumVector	push_back (pv.first)
enumVector	push_back (pc.first)
enumVector	reserve (fParameterMap.size())
enumVector	reserve (fParameterCovarianceMap.size())

Public Attributes
const ParameterType &	const
	get the value of a parameter, throw exception if parameter has not been set More...
err<< "Tried to get locking status of unset parameter covariance (" << covarianceKey.first << ", "<< covarianceKey.second << ") from ParameterStorage " << fParameterStorageName << " with call from \"" << origin<< "\" origin.";throw NonExistentComponentException(err.str().c_str());}}void SetParameterCovariance(const IndexEnum param1, const IndexEnum param2, const ParameterCovarianceType value, const bool lock, const std::string &origin="unknown"){const auto covarianceKey=GenCovarianceKey(param1, param2);if(!HasParameter(param1)||!HasParameter(param2)){std::ostringstream err;err<< "Tried to set parameter covariance (" << covarianceKey.first << ", "<< covarianceKey.second << ") in ParameterStorage " << fParameterStorageName << " without beforehand setting parameter(s) ";err << '('<< param1<< ") ";err << '('<< param2<< ") ";err << "with call from \"" << origin<< "\" origin.";throw InvalidConfigurationException(err.str().c_str());}const auto it=fParameterCovarianceMap.find(covarianceKey);if(it!=fParameterCovarianceMap.end()){if(it-> second.second){std::ostringstream err;err<< "Tried to re-set locked parameter covariance (" << covarianceKey.first << ", "<< covarianceKey.second << ") in ParameterStorage " << fParameterStorageName << " with call from \"" << origin<< "\" origin.";throw InvalidConfigurationException(err.str().c_str());}}fParameterCovarianceMap[covarianceKey]=std::make_pair(value, lock);}void DeleteParameterCovariance(const IndexEnum param1, const IndexEnum param2, const std::string &origin="unknown"){const auto covarianceKey=GenCovarianceKey(param1, param2);if(HasParameterCovariance(param1, param2)){if(fParameterCovarianceMap[covarianceKey].second){std::ostringstream err;err<< "Tried to delete locked parameter covariance (" << covarianceKey.first << ", "<< covarianceKey.second << ") in ParameterStorage " << fParameterStorageName << " with call from \"" << origin<< "\" origin.";throw InvalidConfigurationException(err.str().c_str());}fParameterCovarianceMap.erase(covarianceKey);}}std::vector < IndexEnum >	const
std::vector< std::pair < IndexEnum, IndexEnum > >	const
	get a std::vector containing the enum-pairs for which covariances have been set More...
	else
return	enumVector
return it second	first
err<< "Tried to get locking status of unset parameter (" << param<< ") from ParameterStorage " << fParameterStorageName << " with call from \"" << origin<< "\" origin.";throw NonExistentComponentException(err.str().c_str());}}void SetParameter(const IndexEnum param, const ParameterType value, const bool lock, const std::string &origin="unknown"){const auto it=fParameterMap.find(param);if(it!=fParameterMap.end()){if(it-> second.second){std::ostringstream err;err<< "Tried to re-set locked parameter ("<< param << ") in ParameterStorage " << fParameterStorageName << " with call from \"" << origin<< "\" origin.";throw InvalidConfigurationException(err.str().c_str());}}fParameterMap[param]=std::make_pair(value, lock);}void DeleteParameter(const IndexEnum param, const std::string &origin="unknown"){DeleteParameterCovariance(param, pv.first);const auto it=fParameterMap.find(param);if(it!=fParameterMap.end()){if(it-> second.second){std::ostringstream err;err<< "Tried to delete locked parameter ("<< param << ") in ParameterStorage " << fParameterStorageName << " with call from \"" << origin<< "\" origin.";throw InvalidConfigurationException(err.str().c_str());}fParameterMap.erase(it);}}bool const {const auto covarianceKey=GenCovarianceKey(param1, param2);return fParameterCovarianceMap.find(covarianceKey)!=fParameterCovarianceMap.end();}const ParameterCovarianceType &const {const auto covarianceKey=GenCovarianceKey(param1, param2);const auto it=fParameterCovarianceMap.find(covarianceKey);return it-> second	first
err<< "Tried to get unset parameter ("<< param<< ") from ParameterStorage " << fParameterStorageName << " with call from \"" << origin<< "\" origin.";throw NonExistentComponentException(err.str().c_str());}}bool const {const auto it=fParameterMap.find(param);return it-> second	second
err<< "Tried to get unset parameter covariance (" << covarianceKey.first << ", "<< covarianceKey.second << ") from ParameterStorage " << fParameterStorageName << " with call from \"" << origin<< "\" origin.";throw NonExistentComponentException(err.str().c_str());}}bool const {const auto covarianceKey=GenCovarianceKey(param1, param2);const auto it=fParameterCovarianceMap.find(covarianceKey);return it-> second	second

Private Member Functions
std::pair< IndexEnum, IndexEnum >	GenCovarianceKey (const IndexEnum param1, const IndexEnum param2) const
	helper function to create the key for the covariance map from the parameters using sorting More...

Private Attributes
ParameterCovarianceMap	fParameterCovarianceMap
	the map containing the stored parameter covariances of type ParameterCovarianceType More...
ParameterMap	fParameterMap
	the map containing the stored parameters of type ParameterType More...
std::string	fParameterStorageName

Detailed Description

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>
class utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >

Template class allowing to store parameters and their covariances using enums to address them with a general interface.

Parameters

IndexEnum	The enum class defining the list of allowed parameters.
ParameterType	The data type of the parameters to be stored, usually double.
ParameterCovarianceType	The data type of the covariances to be stored, usually double.

Author

Tim Huege

Date

03 Mar 2011

Definition at line 30 of file ParameterStorage.h.

Member Typedef Documentation

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

typedef std::vector<IndexEnum> utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::EnumVector

Definition at line 35 of file ParameterStorage.h.

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

typedef std::map<std::pair<IndexEnum, IndexEnum>, std::pair<ParameterCovarianceType, bool> > utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::ParameterCovarianceMap

Definition at line 34 of file ParameterStorage.h.

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

typedef std::map<IndexEnum, std::pair<ParameterType, bool> > utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::ParameterMap

Definition at line 33 of file ParameterStorage.h.

Constructor & Destructor Documentation

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::ParameterStorage ( const std::string &  storagename = "Unnamed" )

inline

Constructor that sets a name for the storage, helpful to get useful exception messages.

Definition at line 38 of file ParameterStorage.h.

Member Function Documentation

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

std::pair<IndexEnum, IndexEnum> utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::GenCovarianceKey ( const IndexEnum  param1, const IndexEnum  param2  ) const

inlineprivate

helper function to create the key for the covariance map from the parameters using sorting

Definition at line 231 of file ParameterStorage.h.

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

bool utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::HasParameter ( const IndexEnum  param ) const

inline

determine whether a parameter has been set

Definition at line 41 of file ParameterStorage.h.

Referenced by revt::ChannelRecData::HasParameter(), revt::StationRecData::HasParameter(), revt::StationSimData::HasParameter(), sevt::SdFootprintData::HasParameter(), evt::ShowerRRecData::HasParameter(), and evt::ShowerSRecData::HasParameter().

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

enumVector utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::push_back

(

pv.

first

)

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

enumVector utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::push_back

(

pc.

first

)

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

enumVector utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::reserve

(

fParameterMap.

size()

)

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

enumVector utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::reserve

(

fParameterCovarianceMap.

size()

)

Member Data Documentation

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

const ParameterType& utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::const

Initial value:

{
      const auto it = fParameterMap.find(param)

get the value of a parameter, throw exception if parameter has not been set

Definition at line 48 of file ParameterStorage.h.

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

err<< "Tried to get locking status of unset parameter covariance (" << covarianceKey.first << ", " << covarianceKey.second << ") from ParameterStorage " << fParameterStorageName << " with call from \"" << origin << "\" origin."; throw NonExistentComponentException(err.str().c_str()); } } void SetParameterCovariance(const IndexEnum param1, const IndexEnum param2, const ParameterCovarianceType value, const bool lock, const std::string& origin = "unknown") { const auto covarianceKey = GenCovarianceKey(param1, param2); if (!HasParameter(param1) || !HasParameter(param2)) { std::ostringstream err; err << "Tried to set parameter covariance (" << covarianceKey.first << ", " << covarianceKey.second << ") in ParameterStorage " << fParameterStorageName << " without beforehand setting parameter(s) "; err << '(' << param1 << ") "; err << '(' << param2 << ") "; err << "with call from \"" << origin << "\" origin."; throw InvalidConfigurationException(err.str().c_str()); } const auto it = fParameterCovarianceMap.find(covarianceKey); if (it != fParameterCovarianceMap.end()) { if (it->second.second) { std::ostringstream err; err << "Tried to re-set locked parameter covariance (" << covarianceKey.first << ", " << covarianceKey.second << ") in ParameterStorage " << fParameterStorageName << " with call from \"" << origin << "\" origin."; throw InvalidConfigurationException(err.str().c_str()); } } fParameterCovarianceMap[covarianceKey] = std::make_pair(value, lock); } void DeleteParameterCovariance(const IndexEnum param1, const IndexEnum param2, const std::string& origin = "unknown") { const auto covarianceKey = GenCovarianceKey(param1, param2); if (HasParameterCovariance(param1, param2)) { if (fParameterCovarianceMap[covarianceKey].second) { std::ostringstream err; err << "Tried to delete locked parameter covariance (" << covarianceKey.first << ", " << covarianceKey.second << ") in ParameterStorage " << fParameterStorageName << " with call from \"" << origin << "\" origin."; throw InvalidConfigurationException(err.str().c_str()); } fParameterCovarianceMap.erase(covarianceKey); } } std::vector<IndexEnum> utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::const

Initial value:

{
      std::vector<IndexEnum> enumVector

Definition at line 209 of file ParameterStorage.h.

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

std::vector<std::pair<IndexEnum, IndexEnum> > utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::const

Initial value:

{
      std::vector<std::pair<IndexEnum, IndexEnum>> enumVector

get a std::vector containing the enum-pairs for which covariances have been set

Definition at line 221 of file ParameterStorage.h.

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::else

Initial value:

{
        std::ostringstream err

Definition at line 52 of file ParameterStorage.h.

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

return utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::enumVector

Definition at line 214 of file ParameterStorage.h.

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

return it second utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::first

Definition at line 51 of file ParameterStorage.h.

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

err<< "Tried to get locking status of unset parameter (" << param << ") from ParameterStorage " << fParameterStorageName << " with call from \"" << origin << "\" origin."; throw NonExistentComponentException(err.str().c_str()); } } void SetParameter(const IndexEnum param, const ParameterType value, const bool lock, const std::string& origin = "unknown") { const auto it = fParameterMap.find(param); if (it != fParameterMap.end()) { if (it->second.second) { std::ostringstream err; err << "Tried to re-set locked parameter (" << param << ") in ParameterStorage " << fParameterStorageName << " with call from \"" << origin << "\" origin."; throw InvalidConfigurationException(err.str().c_str()); } } fParameterMap[param] = std::make_pair(value, lock); } void DeleteParameter(const IndexEnum param, const std::string& origin = "unknown") { DeleteParameterCovariance(param, pv.first); const auto it = fParameterMap.find(param); if (it != fParameterMap.end()) { if (it->second.second) { std::ostringstream err; err << "Tried to delete locked parameter (" << param << ") in ParameterStorage " << fParameterStorageName << " with call from \"" << origin << "\" origin."; throw InvalidConfigurationException(err.str().c_str()); } fParameterMap.erase(it); } } bool const { const auto covarianceKey = GenCovarianceKey(param1, param2); return fParameterCovarianceMap.find(covarianceKey) != fParameterCovarianceMap.end(); } const ParameterCovarianceType& const { const auto covarianceKey = GenCovarianceKey(param1, param2); const auto it = fParameterCovarianceMap.find(covarianceKey); return it-> second utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::first

Definition at line 127 of file ParameterStorage.h.

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

ParameterCovarianceMap utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::fParameterCovarianceMap

private

the map containing the stored parameter covariances of type ParameterCovarianceType

Definition at line 238 of file ParameterStorage.h.

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

ParameterMap utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::fParameterMap

private

the map containing the stored parameters of type ParameterType

Definition at line 235 of file ParameterStorage.h.

Referenced by utl::ParameterStorage< Parameter >::HasParameter().

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

std::string utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::fParameterStorageName

private

Definition at line 240 of file ParameterStorage.h.

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

err<< "Tried to get unset parameter (" << param << ") from ParameterStorage " << fParameterStorageName << " with call from \"" << origin << "\" origin."; throw NonExistentComponentException(err.str().c_str()); } } bool const { const auto it = fParameterMap.find(param); return it-> second utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::second

Definition at line 67 of file ParameterStorage.h.

template<typename IndexEnum, typename ParameterType = double, typename ParameterCovarianceType = double>

err<< "Tried to get unset parameter covariance (" << covarianceKey.first << ", " << covarianceKey.second << ") from ParameterStorage " << fParameterStorageName << " with call from \"" << origin << "\" origin."; throw NonExistentComponentException(err.str().c_str()); } } bool const { const auto covarianceKey = GenCovarianceKey(param1, param2); const auto it = fParameterCovarianceMap.find(covarianceKey); return it-> second utl::ParameterStorage< IndexEnum, ParameterType, ParameterCovarianceType >::second

Definition at line 145 of file ParameterStorage.h.

---

The documentation for this class was generated from the following file:

• ParameterStorage.h
