A collection of Trace<T>,which provides methods to access different sources. More...

#include <MultiTrace.h>

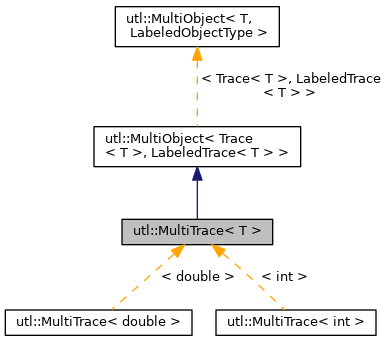

Inheritance diagram for utl::MultiTrace< T >:

Public Types
typedef boost::transform_iterator < LabeledObjectFunctor, typename MultiObjectContainer::const_iterator, LabeledTrace< T > >	ConstIterator

typedef boost::transform_iterator < LabeledObjectFunctor, typename MultiObjectContainer::iterator, LabeledTrace< T > >	Iterator

typedef utl::detail::LabeledObjectFunctor < Trace< T >, LabeledTrace< T > >	LabeledObjectFunctor

typedef std::map< int, Trace < T > * >	MultiObjectContainer

Public Member Functions
void	AddTrace (const int size, const double binSize, const int label)

void	AddTrace (const Trace< T > &trace, const int label)

Iterator	Begin ()

ConstIterator	Begin () const

void	Clear ()

Iterator	End ()

ConstIterator	End () const

unsigned int	GetNLabels () const

Trace< T > &	GetTrace (const int label=0)
	Returns the trace for /par source. More...

const Trace< T > &	GetTrace (const int label=0) const

bool	HasLabel (const int label) const

	operator bool () const

bool	operator!= (const MultiObject &mobj) const

bool	operator== (const MultiObject &mobj) const

void	RemoveTrace (const int label)

Protected Member Functions
void	AddObject (const Trace< T > &obj, const int label)
	add with deep copy of the object More...

void	AddObject (Trace< T > *const obj, const int label)
	add that takes the ownership More...

Trace< T > &	GetObject (const int label=0)

const Trace< T > &	GetObject (const int label=0) const

void	RemoveObject (const int label)

Private Types
typedef MultiObject< Trace< T > , LabeledTrace< T > >	Base

Detailed Description

template<typename T>
class utl::MultiTrace< T >

A collection of Trace<T>,which provides methods to access different sources.

Author: Stefano Argiro', Darko Veberic

Date: Jan 2003; 14 Nov 2005 revision

MultiTrace::GetTrace(sevt::StationConstants::eElectron) gives the electron component,
MultiTrace::GetTrace(sevt::StationConstants::eMuon) gives the muon component
MultiTrace::GetTrace() or
MultiTrace::GetTrace(sevt::StationConstants::eTotal) gives the total

For the FD case examples are:

MultiTrace::GetTrace(fevt::FdConstants::eFluorDirect)
MultiTrace::GetTrace(fevt::FdConstants::eCherRayleighScattered)

Parameters

T	is the type stored in the trace Trace (double, int etc)

Definition at line 64 of file MultiTrace.h.

Member Typedef Documentation

template<typename T>

typedef MultiObject<Trace<T>, LabeledTrace<T> > utl::MultiTrace< T >::Base

private

Definition at line 66 of file MultiTrace.h.

typedef boost::transform_iterator<LabeledObjectFunctor, typename MultiObjectContainer::const_iterator, LabeledTrace< T > > utl::MultiObject< Trace< T > , LabeledTrace< T > >::ConstIterator

inherited

Definition at line 81 of file MultiObject.h.

typedef boost::transform_iterator<LabeledObjectFunctor, typename MultiObjectContainer::iterator, LabeledTrace< T > > utl::MultiObject< Trace< T > , LabeledTrace< T > >::Iterator

inherited

Definition at line 78 of file MultiObject.h.

typedef utl::detail::LabeledObjectFunctor<Trace< T > , LabeledTrace< T > > utl::MultiObject< Trace< T > , LabeledTrace< T > >::LabeledObjectFunctor

inherited

Definition at line 75 of file MultiObject.h.

typedef std::map<int, Trace< T > *> utl::MultiObject< Trace< T > , LabeledTrace< T > >::MultiObjectContainer

inherited

Definition at line 74 of file MultiObject.h.

Member Function Documentation

void utl::MultiObject< Trace< T > , LabeledTrace< T > >::AddObject	(	const Trace< T > &	obj,
		const int	label
	)

inlineprotectedinherited

add with deep copy of the object

Definition at line 128 of file MultiObject.h.

References utl::MultiObject< T, LabeledObjectType >::AddObject().

Referenced by utl::MultiTrace< int >::AddTrace().

void utl::MultiObject< Trace< T > , LabeledTrace< T > >::AddObject	(	Trace< T > *const	obj,
		const int	label
	)

protectedinherited

add that takes the ownership

template<typename T>

void utl::MultiTrace< T >::AddTrace	(	const int	size,
		const double	binSize,
		const int	label
	)

inline

Creates a new Trace of size /par size and binning /par binsize and assign source /par source

Definition at line 76 of file MultiTrace.h.

Referenced by sevt::PMTRecData::MakeVEMTrace(), sevt::Station::MakeVEMTrace(), io::MultiTrace_ROOT< T >::operator>>(), TestOfflineUtils_ROOT_io::testMultiTrace(), and testTraces::testMultiTrace().

template<typename T>

void utl::MultiTrace< T >::AddTrace	(	const Trace< T > &	trace,
		const int	label
	)

inline

Copies trace in the internal list and assign source /par source -The original can be deleted

Definition at line 81 of file MultiTrace.h.

Iterator utl::MultiObject< Trace< T > , LabeledTrace< T > >::Begin ( )

inlineinherited

Definition at line 83 of file MultiObject.h.

References utl::MultiObject< T, LabeledObjectType >::fObjects.

Referenced by TestOfflineUtils_ROOT_io::IsEqual().

ConstIterator utl::MultiObject< Trace< T > , LabeledTrace< T > >::Begin ( ) const

inlineinherited

Definition at line 84 of file MultiObject.h.

References utl::MultiObject< T, LabeledObjectType >::fObjects.

void utl::MultiObject< Trace< T > , LabeledTrace< T > >::Clear ( )

inherited

Iterator utl::MultiObject< Trace< T > , LabeledTrace< T > >::End ( )

inlineinherited

Definition at line 85 of file MultiObject.h.

References utl::MultiObject< T, LabeledObjectType >::fObjects.

Referenced by TestOfflineUtils_ROOT_io::IsEqual().

ConstIterator utl::MultiObject< Trace< T > , LabeledTrace< T > >::End ( ) const

inlineinherited

Definition at line 86 of file MultiObject.h.

References utl::MultiObject< T, LabeledObjectType >::fObjects.

unsigned int utl::MultiObject< Trace< T > , LabeledTrace< T > >::GetNLabels ( ) const

inlineinherited

Definition at line 89 of file MultiObject.h.

References utl::MultiObject< T, LabeledObjectType >::fObjects.

Referenced by TestOfflineUtils_ROOT_io::IsEqual().

Trace< T > & utl::MultiObject< Trace< T > , LabeledTrace< T > >::GetObject ( const int label = 0 )

protectedinherited

Referenced by utl::MultiTrace< int >::GetTrace().

const Trace< T > & utl::MultiObject< Trace< T > , LabeledTrace< T > >::GetObject ( const int label = 0 ) const

protectedinherited

template<typename T>

Trace<T>& utl::MultiTrace< T >::GetTrace ( const int label = 0 )

inline

Returns the trace for /par source.

Definition at line 70 of file MultiTrace.h.

Referenced by sevt::PMT::GetFADCTrace(), sevt::PMTSimData::GetFADCTrace(), sevt::PMT::GetFADCTraceD(), sevt::PMTSimData::GetFADCTraceD(), sevt::Scintillator::GetMIPTrace(), sevt::PMTRecData::GetVEMTrace(), sevt::Station::GetVEMTrace(), TestOfflineUtils_ROOT_io::IsEqual(), and testTraces::testMultiTrace().

template<typename T>

const Trace<T>& utl::MultiTrace< T >::GetTrace ( const int label = 0 ) const

inline

Definition at line 72 of file MultiTrace.h.

bool utl::MultiObject< Trace< T > , LabeledTrace< T > >::HasLabel ( const int label ) const

inlineinherited

Definition at line 91 of file MultiObject.h.

References utl::MultiObject< T, LabeledObjectType >::fObjects.

utl::MultiObject< Trace< T > , LabeledTrace< T > >::operator bool ( ) const

inlineexplicitinherited

Definition at line 99 of file MultiObject.h.

References utl::MultiObject< T, LabeledObjectType >::fObjects.

bool utl::MultiObject< Trace< T > , LabeledTrace< T > >::operator!= ( const MultiObject< Trace< T >, LabeledTrace< T > > & mobj ) const

inlineinherited

Definition at line 96 of file MultiObject.h.

References utl::MultiObject< T, LabeledObjectType >::operator==().

bool utl::MultiObject< Trace< T > , LabeledTrace< T > >::operator== ( const MultiObject< Trace< T >, LabeledTrace< T > > & mobj ) const

inherited

void utl::MultiObject< Trace< T > , LabeledTrace< T > >::RemoveObject ( const int label )

protectedinherited

Referenced by utl::MultiTrace< int >::RemoveTrace().

template<typename T>

void utl::MultiTrace< T >::RemoveTrace ( const int label )

inline

Definition at line 84 of file MultiTrace.h.

The documentation for this class was generated from the following file:

MultiTrace.h
