Bottom part of Coordinate system class. More...

#include <utl/CoordinateSystem.h>

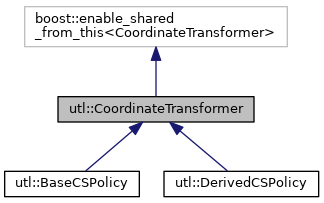

Inheritance diagram for utl::CoordinateTransformer:

Public Types
typedef CoordinateSystemPtr	type
	Type to use to hold objects of this type. More...

Public Member Functions
const TransformationMatrix &	GetInverseTransformationTo (const CoordinateSystemPtr &target) const
	Get the inverse transformation to other coordinate system (w/ caching) More...

virtual CoordinateSystemPtr	GetReferenceForNewCS () const =0
	Get reference system for the creation of new coordinate systems. More...

CoordinateSystemPtr	GetReferenceSystem () const
	Get the reference system for this coordinate system. More...

const TransformationMatrix &	GetTransformation () const
	Get the transformation matrix relative to reference system. More...

virtual TransformationMatrix	GetTransformationForNewCS (const TransformationMatrix &theTransformation) const =0
	Calculate the correct transformation for the new CS. More...

const TransformationMatrix &	GetTransformationTo (const CoordinateSystemPtr &target) const
	Get the transformation to other coordinate system (with caching) More...

Static Public Member Functions
static CoordinateSystemPtr	GetRootCoordinateSystem ()

Protected Types
typedef boost::weak_ptr< const CoordinateTransformer >	WeakCoordinateSystemPtr

Protected Member Functions
	CoordinateTransformer ()

	CoordinateTransformer (const TransformationMatrix &theTransformation, const CoordinateSystemPtr &theReferenceCS)

CoordinateSystemPtr	GetThis () const
	Get a `CoordinateSystemPointer` for `this`. More...

virtual	~CoordinateTransformer ()

Private Member Functions
TransformationMatrix	CollectTransformationFrom (const CoordinateSystemPtr &target) const

	CoordinateTransformer (const CoordinateTransformer &theSystem)

CoordinateSystemPtr	FindCommonBase (const CoordinateSystemPtr &other) const

CoordinateTransformer &	operator= (const CoordinateTransformer &theSystem)

Private Attributes
TransformationMatrix *	fLastInverseTransformation = nullptr

WeakCoordinateSystemPtr	fLastTarget

TransformationMatrix *	fLastTransformation = nullptr

CoordinateSystemPtr	fReferenceSystem
	The base system - 0 for default base. More...

TransformationMatrix	fTransformation
	Transformation of the components of a vector or point. More...

Static Private Attributes
static CoordinateSystemPtr	RootCoordinateSystem = CoordinateSystemPtr()
	The root coordinate system - the unique, ultimate reference system. More...

Detailed Description

Bottom part of Coordinate system class.

Both CoordinateSystem's and other geometry objects contain (a reference to) a coordinates system, relative to which the coordinates representing the objects are defined. To guarantee that a CoordinateSystem object exists as long as some other objects refers to it, and to make sure that it is deleted when no longer needed, all references should be held through a CoordinateSystemPtr smart pointer.

This implies that, under normal cirumstances, all CoordinateSystem's should be allocated on the heap. Creating CoordinateSystem objects on the stack is dangerous - one has to make sure that no geometry object refers to such a CoordinateSystem at the moment when it goes out of scope and is destroyed.

This class provides the common user interface for coordinate systems. Classes layered on top of this class implement the creation of coordinate systems and the policy for dealing with the base system relative to which the coordinate system is defined.

Definition at line 81 of file CoordinateSystem.h.

Member Typedef Documentation

typedef CoordinateSystemPtr utl::CoordinateTransformer::type

Type to use to hold objects of this type.

This is the type returned by the TransformerConstructor factory methods.

Note: This is required by the policy interface of TransformerConstructor.

Definition at line 95 of file CoordinateSystem.h.

typedef boost::weak_ptr<const CoordinateTransformer> utl::CoordinateTransformer::WeakCoordinateSystemPtr

protected

Definition at line 83 of file CoordinateSystem.h.

Constructor & Destructor Documentation

utl::CoordinateTransformer::CoordinateTransformer ( )

inlineprotected

Definition at line 128 of file CoordinateSystem.h.

CoordinateTransformer::CoordinateTransformer	(	const TransformationMatrix &	theTransformation,
		const CoordinateSystemPtr &	theReferenceCS
	)

protected

Definition at line 17 of file CoordinateSystem.cc.

References utl::CoordinateSystemValid().

CoordinateTransformer::~CoordinateTransformer ( )

protectedvirtual

Definition at line 26 of file CoordinateSystem.cc.

References fLastInverseTransformation, and fLastTransformation.

utl::CoordinateTransformer::CoordinateTransformer ( const CoordinateTransformer & theSystem )

private

Member Function Documentation

TransformationMatrix CoordinateTransformer::CollectTransformationFrom ( const CoordinateSystemPtr & target ) const

private

Definition at line 126 of file CoordinateSystem.cc.

References GetReferenceSystem(), GetTransformation(), and result.

Referenced by GetTransformationTo().

CoordinateSystemPtr CoordinateTransformer::FindCommonBase ( const CoordinateSystemPtr & other ) const

private

Definition at line 106 of file CoordinateSystem.cc.

References GetReferenceSystem(), and GetRootCoordinateSystem().

Referenced by GetTransformationTo().

const TransformationMatrix & CoordinateTransformer::GetInverseTransformationTo ( const CoordinateSystemPtr & target ) const

Get the inverse transformation to other coordinate system (w/ caching)

Definition at line 160 of file CoordinateSystem.cc.

References fLastInverseTransformation, fLastTarget, and GetTransformationTo().

virtual CoordinateSystemPtr utl::CoordinateTransformer::GetReferenceForNewCS ( ) const

pure virtual

Get reference system for the creation of new coordinate systems.

Implemented in utl::BaseCSPolicy, and utl::DerivedCSPolicy.

CoordinateSystemPtr utl::CoordinateTransformer::GetReferenceSystem ( ) const

inline

Get the reference system for this coordinate system.

Takes care to keep the ultimate root coordinate system unique.

Definition at line 102 of file CoordinateSystem.h.

References fReferenceSystem, and GetRootCoordinateSystem().

Referenced by CollectTransformationFrom(), FindCommonBase(), and utl::DerivedCSPolicy::GetReferenceForNewCS().

CoordinateSystemPtr CoordinateTransformer::GetRootCoordinateSystem ( )

static

Definition at line 49 of file CoordinateSystem.cc.

References RootCoordinateSystem.

Referenced by FindCommonBase(), GetReferenceSystem(), and TestProbability::setUp().

CoordinateSystemPtr CoordinateTransformer::GetThis ( ) const

protected

Get a CoordinateSystemPointer for this.

Definition at line 34 of file CoordinateSystem.cc.

Referenced by utl::BaseCSPolicy::GetReferenceForNewCS().

const TransformationMatrix& utl::CoordinateTransformer::GetTransformation ( ) const

inline

Get the transformation matrix relative to reference system.

Definition at line 106 of file CoordinateSystem.h.

References fTransformation.

Referenced by CollectTransformationFrom(), and utl::DerivedCSPolicy::GetTransformationForNewCS().

virtual TransformationMatrix utl::CoordinateTransformer::GetTransformationForNewCS ( const TransformationMatrix & theTransformation ) const

pure virtual

Calculate the correct transformation for the new CS.

Implemented in utl::BaseCSPolicy, and utl::DerivedCSPolicy.

const TransformationMatrix & CoordinateTransformer::GetTransformationTo ( const CoordinateSystemPtr & target ) const

Get the transformation to other coordinate system (with caching)

Definition at line 139 of file CoordinateSystem.cc.

References CollectTransformationFrom(), FindCommonBase(), fLastTarget, fLastTransformation, and utl::TransformationMatrix::Inverse().

Referenced by GetInverseTransformationTo().

CoordinateTransformer& utl::CoordinateTransformer::operator= ( const CoordinateTransformer & theSystem )

private

Member Data Documentation

TransformationMatrix* utl::CoordinateTransformer::fLastInverseTransformation = nullptr

mutableprivate

Definition at line 166 of file CoordinateSystem.h.

Referenced by GetInverseTransformationTo(), and ~CoordinateTransformer().

WeakCoordinateSystemPtr utl::CoordinateTransformer::fLastTarget

mutableprivate

Definition at line 164 of file CoordinateSystem.h.

Referenced by GetInverseTransformationTo(), and GetTransformationTo().

TransformationMatrix* utl::CoordinateTransformer::fLastTransformation = nullptr

mutableprivate

Definition at line 165 of file CoordinateSystem.h.

Referenced by GetTransformationTo(), and ~CoordinateTransformer().

CoordinateSystemPtr utl::CoordinateTransformer::fReferenceSystem

private

The base system - 0 for default base.

Definition at line 161 of file CoordinateSystem.h.

Referenced by GetReferenceSystem().

TransformationMatrix utl::CoordinateTransformer::fTransformation

private

Transformation of the components of a vector or point.

This is the transformation of the components of the vector represented in the reference system into this coordinate system.

Definition at line 158 of file CoordinateSystem.h.

Referenced by GetTransformation().

CoordinateSystemPtr CoordinateTransformer::RootCoordinateSystem = CoordinateSystemPtr()

staticprivate

The root coordinate system - the unique, ultimate reference system.

Global to hold the Root coordinate system. It has no further reference system.

Definition at line 169 of file CoordinateSystem.h.

Referenced by GetRootCoordinateSystem().

The documentation for this class was generated from the following files:
