tls::VTankResponse Class Reference

Interface class for coupling different tank response calculations into the reconstruction code. Common arguments are "theta" for the zenith angle of incoming muons and "r" the radial distance of the station to the shower axis. More...

#include <VTankResponse.h>

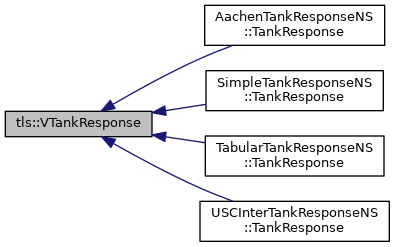

Inheritance diagram for tls::VTankResponse:

Public Types
typedef unsigned long	ulong

Public Member Functions
virtual double	CDF (const double smax, const double theta, const double r, const ulong muons) const =0
	Probability of signal begin smaller than smax, given a fixed number of muons. More...
virtual double	GetRadiusMax () const =0
	Largest radial distance at which the tank response is defined. More...
virtual double	GetRadiusMin () const =0
	Smallest radial distance at which the tank response is defined. More...
virtual double	GetThetaMax () const =0
	Largest zenith angle at which the tank response is defined. More...
virtual double	GetThetaMin () const =0
	Smallest zenith angle at which the tank response is defined. More...
virtual double	Mean (const double theta, const double r, const ulong muons) const =0
	Average signal, given fixed number of muons. More...
virtual double	PDF (const double signal, const double theta, const double r, const ulong muons) const =0
	PDF of signal, given a fixed number of muons. More...
double	PoissonConvolvedCDF (const double sThreshold, const double theta, const double r, const double muons, const bool complement) const
void	PoissonConvolvedMeanAndStDev (double &mean, double &stDev, const double theta, const double r, const double muons) const
	Mean and standard deviation of signal, given an average number of muons (Poisson convolved). More...
double	PoissonConvolvedPDF (const double signal, const double theta, const double r, const double muons) const
	PDF of signal, given an average number of muons (Poisson convolved). More...
virtual double	StDev (const double theta, const double r, const ulong muons) const =0
	Standard deviation of signal, given fixed number of muons. More...
	VTankResponse ()
virtual	~VTankResponse ()

Detailed Description

Interface class for coupling different tank response calculations into the reconstruction code. Common arguments are "theta" for the zenith angle of incoming muons and "r" the radial distance of the station to the shower axis.

Author

Javier Gonzalez

Hans Dembinski

Date

17 Nov 2011

Definition at line 26 of file VTankResponse.h.

Member Typedef Documentation

typedef unsigned long tls::VTankResponse::ulong

Definition at line 28 of file VTankResponse.h.

Constructor & Destructor Documentation

tls::VTankResponse::VTankResponse ( )

inline

Definition at line 30 of file VTankResponse.h.

virtual tls::VTankResponse::~VTankResponse ( )

inlinevirtual

Definition at line 31 of file VTankResponse.h.

Member Function Documentation

virtual double tls::VTankResponse::CDF ( const double  smax, const double  theta, const double  r, const ulong  muons  ) const

pure virtual

Probability of signal begin smaller than smax, given a fixed number of muons.

Implemented in TabularTankResponseNS::TankResponse, SimpleTankResponseNS::TankResponse, AachenTankResponseNS::TankResponse, and USCInterTankResponseNS::TankResponse.

Referenced by main().

virtual double tls::VTankResponse::GetRadiusMax ( ) const

pure virtual

Largest radial distance at which the tank response is defined.

Implemented in TabularTankResponseNS::TankResponse, SimpleTankResponseNS::TankResponse, AachenTankResponseNS::TankResponse, and USCInterTankResponseNS::TankResponse.

virtual double tls::VTankResponse::GetRadiusMin ( ) const

pure virtual

Smallest radial distance at which the tank response is defined.

Implemented in TabularTankResponseNS::TankResponse, SimpleTankResponseNS::TankResponse, AachenTankResponseNS::TankResponse, and USCInterTankResponseNS::TankResponse.

virtual double tls::VTankResponse::GetThetaMax ( ) const

pure virtual

Largest zenith angle at which the tank response is defined.

Implemented in TabularTankResponseNS::TankResponse, SimpleTankResponseNS::TankResponse, AachenTankResponseNS::TankResponse, and USCInterTankResponseNS::TankResponse.

virtual double tls::VTankResponse::GetThetaMin ( ) const

pure virtual

Smallest zenith angle at which the tank response is defined.

Implemented in TabularTankResponseNS::TankResponse, SimpleTankResponseNS::TankResponse, AachenTankResponseNS::TankResponse, and USCInterTankResponseNS::TankResponse.

virtual double tls::VTankResponse::Mean ( const double  theta, const double  r, const ulong  muons  ) const

pure virtual

Average signal, given fixed number of muons.

Implemented in TabularTankResponseNS::TankResponse, SimpleTankResponseNS::TankResponse, AachenTankResponseNS::TankResponse, and USCInterTankResponseNS::TankResponse.

Referenced by main().

virtual double tls::VTankResponse::PDF ( const double  signal, const double  theta, const double  r, const ulong  muons  ) const

pure virtual

PDF of signal, given a fixed number of muons.

Implemented in TabularTankResponseNS::TankResponse, SimpleTankResponseNS::TankResponse, USCInterTankResponseNS::TankResponse, and AachenTankResponseNS::TankResponse.

Referenced by main().

double VTankResponse::PoissonConvolvedCDF	(	const double	sThreshold,
		const double	theta,
		const double	r,
		const double	muons,
		const bool	complement
	)		const

Probability of signal begin smaller [complement = false] or greater than [complement = true] than sThreshold, given an average number of muons (Poisson convolved).

Definition at line 52 of file VTankResponse.cc.

References G4StationSimulatorOG::p, utl::PoissonPDF(), and precision.

Referenced by SdHorizontalReconstructionNS::ShowerSizeFunction::operator()().

void VTankResponse::PoissonConvolvedMeanAndStDev	(	double &	mean,
		double &	stDev,
		const double	theta,
		const double	r,
		const double	muons
	)		const

Mean and standard deviation of signal, given an average number of muons (Poisson convolved).

Definition at line 106 of file VTankResponse.cc.

References un2::Mean(), G4StationSimulatorOG::p, utl::PoissonPDF(), precision, and sqrt().

Referenced by SdHorizontalReconstructionNS::ShowerSizeFunction::Predict().

double VTankResponse::PoissonConvolvedPDF	(	const double	signal,
		const double	theta,
		const double	r,
		const double	muons
	)		const

PDF of signal, given an average number of muons (Poisson convolved).

Definition at line 16 of file VTankResponse.cc.

References G4StationSimulatorOG::p, utl::PoissonPDF(), and precision.

Referenced by SdHorizontalReconstructionNS::ShowerSizeFunction::operator()().

virtual double tls::VTankResponse::StDev ( const double  theta, const double  r, const ulong  muons  ) const

pure virtual

Standard deviation of signal, given fixed number of muons.

Implemented in TabularTankResponseNS::TankResponse, SimpleTankResponseNS::TankResponse, AachenTankResponseNS::TankResponse, and USCInterTankResponseNS::TankResponse.

---

The documentation for this class was generated from the following files:

• VTankResponse.h
• VTankResponse.cc
