evt::ComponentGroup< Component > Class Template Reference

Common class for groups of components of the Event hierarchy. More...

#include "evt/ComponentGroup.h"

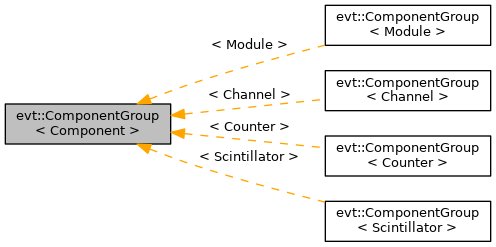

Inheritance diagram for evt::ComponentGroup< Component >:

Classes
struct	SecondResolver

Public Types
typedef boost::transform_iterator < ConstComponentResolver, PairConstIterator >	ComponentConstIterator
	Alias for constant iterator over contained components. More...
typedef boost::transform_iterator < ComponentResolver, PairIterator >	ComponentIterator
	Alias for non-constant iterator over contained components. More...

Public Member Functions
ComponentIterator	Begin ()
ComponentConstIterator	Begin () const
	Check (i, e, id)
ComponentIterator	End ()
ComponentConstIterator	End () const
Component &	Get (const int id)
	Retrieve by id. More...
int	GetNumberOf () const
	Query quantity. More...
bool	Has (const int id) const
	Query existence. More...
void	Make (int id)
	Construct by id. More...

Public Attributes
const Component &	const
	Retrieve by id. More...
const PairConstIterator	e = fComponents.end()
return *i	second

Private Types
typedef SecondResolver < MappedReference, Reference >	ComponentResolver
typedef SecondResolver < ConstMappedReference, ConstReference >	ConstComponentResolver
typedef InternalComponentCollection::const_mapped_reference	ConstMappedReference
typedef const Component *	ConstMappedType
typedef InternalComponentCollection::const_reference	ConstReference
typedef boost::ptr_map< int, Component >	InternalComponentCollection
typedef InternalComponentCollection::key_type	KeyType
typedef InternalComponentCollection::mapped_reference	MappedReference
typedef InternalComponentCollection::mapped_type	MappedType
typedef InternalComponentCollection::const_iterator	PairConstIterator
typedef InternalComponentCollection::iterator	PairIterator
typedef InternalComponentCollection::reference	Reference

Private Attributes
InternalComponentCollection	fComponents

Static Private Attributes
static constexpr const ConstComponentResolver	kConstResolver = ConstComponentResolver()
	Instance of the (stateless) helper class (stored on a class for the containing class) for const component resolving. More...
static constexpr const ComponentResolver	kResolver = ComponentResolver()
	Non-const resolving. More...

Detailed Description

template<class Component>
class evt::ComponentGroup< Component >

Common class for groups of components of the Event hierarchy.

Groups elements of the event hierarchy and responds to the has/make/get interface.

Parameters

Component

The actual type of the component. Its instances are constructed here with the following expression Component* c = new Component(id); where id is of const int type.

Since the objects will be owned, they must be feasible to be destructed. In particular, given the innards of this class the destruction is perfomed, at last, by

template<class T> void boost::checked_delete(T*);

so the destructor must be accesible at least by that function.

Todo:

The friend declation that may be needed to be granted to checked_delete reveals the implementation of this class. It's somewhat the same that happens in this Event hierarchy with utl::LameShadowPtr in the sense that the class that will be buried inside the ShadowPtr gives friendship to ShadowPtr because it happens that ShadowPtr it's used to contain that class' instances in the parent object within the hierarchy. Another possibility is to leave the destructors public (but, of course, keeping restricted the means of construction), it doesn't seem likely that, by chance, the destructor is called from client code. Another last possibility (in the case of having to grant friendship to a type) would have been to allow typedef-names in friend declaration, so that an appropiate alias is declared and then friendship is declared using that alias: so that the real underlying type is hidden. Unfortunately up to now it isn't allowed, see http://www.open-std.org/jtc1/sc22/wg21/docs/papers/2005/n1791.pdf

Author

Rodolfo Federico Gamarra

Date

03 Mar 2009

Definition at line 80 of file Event/ComponentGroup.h.

Member Typedef Documentation

template<class Component>

typedef boost::transform_iterator<ConstComponentResolver, PairConstIterator> evt::ComponentGroup< Component >::ComponentConstIterator

Alias for constant iterator over contained components.

See Also

ComponentIterator

Definition at line 140 of file Event/ComponentGroup.h.

template<class Component>

typedef boost::transform_iterator<ComponentResolver, PairIterator> evt::ComponentGroup< Component >::ComponentIterator

Alias for non-constant iterator over contained components.

See Also

ComponentConstIterator

Definition at line 146 of file Event/ComponentGroup.h.

template<class Component>

typedef SecondResolver<MappedReference, Reference> evt::ComponentGroup< Component >::ComponentResolver

private

Definition at line 122 of file Event/ComponentGroup.h.

template<class Component>

typedef SecondResolver<ConstMappedReference, ConstReference> evt::ComponentGroup< Component >::ConstComponentResolver

private

Definition at line 121 of file Event/ComponentGroup.h.

template<class Component>

typedef InternalComponentCollection::const_mapped_reference evt::ComponentGroup< Component >::ConstMappedReference

private

Definition at line 114 of file Event/ComponentGroup.h.

template<class Component>

typedef const Component* evt::ComponentGroup< Component >::ConstMappedType

private

Definition at line 112 of file Event/ComponentGroup.h.

template<class Component>

typedef InternalComponentCollection::const_reference evt::ComponentGroup< Component >::ConstReference

private

Definition at line 115 of file Event/ComponentGroup.h.

template<class Component>

typedef boost::ptr_map<int, Component> evt::ComponentGroup< Component >::InternalComponentCollection

private

Given the usage context where id-lookup is performed then seems better to introduce a map instead of a vector and using linear-search. On the other hand the iteration over the map should be still equally performing than the one over the vector. Then the map holds the relation id->Component.

Since the objects will be heap-allocated (and owned) favor Boost's ptr container instead a home-cooked raw * container.

Definition at line 108 of file Event/ComponentGroup.h.

template<class Component>

typedef InternalComponentCollection::key_type evt::ComponentGroup< Component >::KeyType

private

Definition at line 110 of file Event/ComponentGroup.h.

template<class Component>

typedef InternalComponentCollection::mapped_reference evt::ComponentGroup< Component >::MappedReference

private

Definition at line 113 of file Event/ComponentGroup.h.

template<class Component>

typedef InternalComponentCollection::mapped_type evt::ComponentGroup< Component >::MappedType

private

Definition at line 111 of file Event/ComponentGroup.h.

template<class Component>

typedef InternalComponentCollection::const_iterator evt::ComponentGroup< Component >::PairConstIterator

private

Definition at line 117 of file Event/ComponentGroup.h.

template<class Component>

typedef InternalComponentCollection::iterator evt::ComponentGroup< Component >::PairIterator

private

Definition at line 118 of file Event/ComponentGroup.h.

template<class Component>

typedef InternalComponentCollection::reference evt::ComponentGroup< Component >::Reference

private

Definition at line 116 of file Event/ComponentGroup.h.

Member Function Documentation

template<class Component>

ComponentIterator evt::ComponentGroup< Component >::Begin ( )

inline

Definition at line 208 of file Event/ComponentGroup.h.

Referenced by mevt::Module::ChannelsBegin(), mevt::Counter::CountCandidateModules(), mevt::MEvent::CountersBegin(), mevt::Counter::CountRejectedModules(), mevt::Counter::CountSilentModules(), mevt::Counter::GetActiveArea(), mevt::Counter::GetActiveAreaHG(), mevt::Counter::GetActiveAreaLG(), mevt::Counter::GetLDFResidual(), mevt::Counter::GetMeanMuons(), mevt::Counter::GetMeanMuonsErrorHigh(), mevt::Counter::GetMeanMuonsErrorLow(), mevt::Counter::GetMeanMuonsLowLimit(), mevt::Counter::GetNumberOfChannelsOn(), mevt::Counter::GetNumberOfEstimatedMuons(), mevt::Counter::GetNumberOfEstimatedMuonsHG(), mevt::Counter::GetNumberOfEstimatedMuonsLG(), mevt::Counter::GetNumberOfMuonsErrorHigh(), mevt::Counter::GetNumberOfMuonsErrorHighHG(), mevt::Counter::GetNumberOfMuonsErrorHighLG(), mevt::Counter::GetNumberOfMuonsErrorLow(), mevt::Counter::GetNumberOfMuonsErrorLowHG(), mevt::Counter::GetNumberOfMuonsErrorLowLG(), mevt::Counter::GetNumberOfMuonsLowLimit(), mevt::Counter::HasRecData(), mevt::Counter::IsADCCalibratedHG(), mevt::Counter::IsADCCalibratedLG(), mevt::Counter::IsSaturated(), mevt::Counter::ModulesBegin(), mevt::Module::ScintillatorsBegin(), mevt::Counter::SetRejected(), and mevt::Counter::SetSilent().

template<class Component>

ComponentConstIterator evt::ComponentGroup< Component >::Begin ( ) const

inline

Definition at line 214 of file Event/ComponentGroup.h.

template<class Component>

evt::ComponentGroup< Component >::Check	(	i	,
		e	,
		id
	)

Referenced by evt::ComponentGroup< Scintillator >::Get().

template<class Component>

ComponentIterator evt::ComponentGroup< Component >::End ( )

inline

Definition at line 211 of file Event/ComponentGroup.h.

Referenced by mevt::Module::ChannelsEnd(), mevt::Counter::CountCandidateModules(), mevt::MEvent::CountersEnd(), mevt::Counter::CountRejectedModules(), mevt::Counter::CountSilentModules(), mevt::Counter::GetActiveArea(), mevt::Counter::GetActiveAreaHG(), mevt::Counter::GetActiveAreaLG(), mevt::Counter::GetLDFResidual(), mevt::Counter::GetMeanMuons(), mevt::Counter::GetMeanMuonsErrorHigh(), mevt::Counter::GetMeanMuonsErrorLow(), mevt::Counter::GetMeanMuonsLowLimit(), mevt::Counter::GetNumberOfChannelsOn(), mevt::Counter::GetNumberOfEstimatedMuons(), mevt::Counter::GetNumberOfEstimatedMuonsHG(), mevt::Counter::GetNumberOfEstimatedMuonsLG(), mevt::Counter::GetNumberOfMuonsErrorHigh(), mevt::Counter::GetNumberOfMuonsErrorHighHG(), mevt::Counter::GetNumberOfMuonsErrorHighLG(), mevt::Counter::GetNumberOfMuonsErrorLow(), mevt::Counter::GetNumberOfMuonsErrorLowHG(), mevt::Counter::GetNumberOfMuonsErrorLowLG(), mevt::Counter::GetNumberOfMuonsLowLimit(), mevt::Counter::HasRecData(), mevt::Counter::IsADCCalibratedHG(), mevt::Counter::IsADCCalibratedLG(), mevt::Counter::IsSaturated(), mevt::Counter::ModulesEnd(), mevt::Module::ScintillatorsEnd(), mevt::Counter::SetRejected(), and mevt::Counter::SetSilent().

template<class Component>

ComponentConstIterator evt::ComponentGroup< Component >::End ( ) const

inline

Definition at line 217 of file Event/ComponentGroup.h.

template<class Component>

Component& evt::ComponentGroup< Component >::Get ( const int  id )

inline

Retrieve by id.

Definition at line 163 of file Event/ComponentGroup.h.

Referenced by mevt::Module::GetChannel(), mevt::MEvent::GetCounter(), mevt::Counter::GetModule(), and mevt::Module::GetScintillator().

template<class Component>

int evt::ComponentGroup< Component >::GetNumberOf ( ) const

inline

Query quantity.

Definition at line 206 of file Event/ComponentGroup.h.

Referenced by mevt::Module::GetNumberOfChannels(), mevt::MEvent::GetNumberOfCounters(), mevt::Counter::GetNumberOfModules(), mevt::Module::GetNumberOfScintillators(), and mevt::Counter::HasRecData().

template<class Component>

bool evt::ComponentGroup< Component >::Has ( const int  id ) const

inline

Query existence.

Definition at line 200 of file Event/ComponentGroup.h.

Referenced by mevt::Module::HasChannel(), mevt::MEvent::HasCounter(), mevt::Counter::HasModule(), and mevt::Module::HasScintillator().

template<class Component>

void evt::ComponentGroup< Component >::Make ( int  id )

inline

Construct by id.

Definition at line 174 of file Event/ComponentGroup.h.

Referenced by mevt::Module::MakeChannel(), mevt::MEvent::MakeCounter(), mevt::Counter::MakeModule(), and mevt::Module::MakeScintillator().

Member Data Documentation

template<class Component>

const Component& evt::ComponentGroup< Component >::const

Initial value:

{
      const PairConstIterator i = fComponents.find(id)

Retrieve by id.

Definition at line 153 of file Event/ComponentGroup.h.

template<class Component>

const PairConstIterator evt::ComponentGroup< Component >::e = fComponents.end()

Definition at line 155 of file Event/ComponentGroup.h.

template<class Component>

InternalComponentCollection evt::ComponentGroup< Component >::fComponents

private

Definition at line 221 of file Event/ComponentGroup.h.

Referenced by evt::ComponentGroup< Scintillator >::Begin(), evt::ComponentGroup< Scintillator >::End(), evt::ComponentGroup< Scintillator >::Get(), evt::ComponentGroup< Scintillator >::GetNumberOf(), evt::ComponentGroup< Scintillator >::Has(), and evt::ComponentGroup< Scintillator >::Make().

template<class Component>

constexpr const ConstComponentResolver evt::ComponentGroup< Component >::kConstResolver = ConstComponentResolver()

staticprivate

Instance of the (stateless) helper class (stored on a class for the containing class) for const component resolving.

Definition at line 128 of file Event/ComponentGroup.h.

Referenced by evt::ComponentGroup< Scintillator >::Begin(), and evt::ComponentGroup< Scintillator >::End().

template<class Component>

constexpr const ComponentResolver evt::ComponentGroup< Component >::kResolver = ComponentResolver()

staticprivate

Non-const resolving.

See Also

fConstResolver

Definition at line 133 of file Event/ComponentGroup.h.

Referenced by evt::ComponentGroup< Scintillator >::Begin(), and evt::ComponentGroup< Scintillator >::End().

template<class Component>

return* i evt::ComponentGroup< Component >::second

Definition at line 157 of file Event/ComponentGroup.h.

---

The documentation for this class was generated from the following file:

• Event/ComponentGroup.h
