General Manager for reading detectors descriptions in XML files. More...

#include "det/XXMLManager.h"

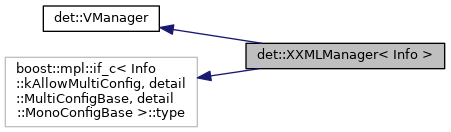

Inheritance diagram for det::XXMLManager< Info >:

Classes
class	AccumulatorMatcher
	Matcher for accumulation. More...

struct	ConfigHandler
	Helper struct to handle MultiConfig & MonoConfig cases. More...

struct	ConfigHandler< false, dummy >
	Partial specialization for MonoConfiguration. More...

class	IdMatcher
	Matcher for specific identificator. More...

Public Types
typedef std::map< std::string, std::string >	IndexMap

enum	Status { eFound, eNotFound }
	Specifies success or (eventually) various possible failure modes. More...

Public Member Functions
virtual Status	GetData (double &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (int &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (bool &, const std::string &componentProperty, const std::string &componentName, const VManager::IndexMap &) const

virtual Status	GetData (std::string &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (std::vector< double > &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (std::vector< int > &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (std::vector< std::string > &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (std::vector< bool > &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (std::list< double > &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (std::list< int > &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (std::list< std::string > &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (std::list< std::pair< int, int >> &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (utl::TabulatedFunction &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (std::map< int, utl::TabulatedFunction > &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (utl::TabulatedFunctionComplexLgAmpPhase &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (std::map< std::string, double > &returnData, const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex) const =0

virtual Status	GetData (std::vector< std::vector< int >> &, const std::string &componentProperty, const std::string &componentName, const VManager::IndexMap &) const

virtual Status	GetData (std::map< unsigned int, int > &, const std::string &componentProperty, const std::string &componentName, const VManager::IndexMap &) const

Status	GetData (Handle &returnData, const std::string &component, const std::string &property, const IndexMap &index=IndexMap()) const
	new data accessor More...

const std::string &	GetName () const

virtual void	Init (const std::string &configLink)
	Manager Initialization. configLink is the CentralConfig hook for the configuration file. More...

bool	IsInitialized () const

void	SetName (const std::string &name)

void	SetReportingErrors (const bool flag=true)
	Generic data accessors. More...

	VMANAGER_GETDATA_CALL (GetDataInternal, double)

	VMANAGER_GETDATA_CALL (GetDataInternal, int)

	VMANAGER_GETDATA_CALL (GetDataInternal, std::string)

	VMANAGER_GETDATA_CALL (GetDataInternal, std::list< int >)

	VMANAGER_GETDATA_CALL (GetDataInternal, std::vector< double >)

	VMANAGER_GETDATA_CALL (GetDataInternal, std::vector< int >)

	VMANAGER_GETDATA_CALL (GetDataInternal, utl::TabulatedFunction)

	VMANAGER_GETDATA_DENIED (std::vector< std::string >)

	VMANAGER_GETDATA_DENIED (std::list< double >)

	VMANAGER_GETDATA_DENIED (std::list< std::string >)

	VMANAGER_GETDATA_DENIED (std::list< std::pair< int, int > >)

	VMANAGER_GETDATA_DENIED (std::map< int, utl::TabulatedFunction >)

	VMANAGER_GETDATA_DENIED (std::map< std::string, double >)

	VMANAGER_GETDATA_DENIED (std::vector< std::vector< int > >)

	VMANAGER_GETDATA_DENIED (std::vector< bool >)

	XXMLManager ()

virtual	~XXMLManager ()

Static Public Member Functions
template<typename T >
static T	FindComponent (const std::string &componentName, const IndexMap &componentIndex)

template<typename T , typename U >
static T	FindComponent (const std::string &componentName, const U &defaultValue, const IndexMap &componentIndex)

static std::string	QueryInfoMessage (const Handle &returnData, const std::string &component)

static std::string	QueryInfoMessage (const Handle &returnData, const std::string &component, const std::string &property, const IndexMap &index)

static std::string	QueryInfoMessage (const std::string &componentProperty, const std::string &componentName)

static std::string	QueryInfoMessage (const std::string &componentProperty, const std::string &componentName, const IndexMap &componentIndex)

Protected Member Functions
template<typename T >
void	AddAvailability (const std::string &component)

void	FindConfig (const std::string &configLink)
	Locate the configuration file in CentralConfig and make a Reader for it. More...

bool	IsReportingErrors () const

std::string	NotImplementedMessage (const std::string &type, const std::string &componentProperty, const std::string &componentName) const

Protected Attributes
std::set< std::string >	fAvailableComponents

utl::Branch	fBranch

bool	fIsInitialized = false

bool	fReportingErrors = false

Private Member Functions
utl::Branch	FindModelBranch (const utl::Branch &componentModels, const utl::Branch &compBranch, const std::string &name) const
	Helper function which retrieves the data branch that corresponds to the models specified in `componentModels`. More...

template<typename T , std::size_t N>
utl::Branch	FindRoot (const T(&path)[N]) const
	Helper function from transversal from the configured branch until the desired roots. More...

template<typename T >
det::VManager::Status	GetDataInternal (T &t, const std::string &prop, const std::string &name, const det::VManager::IndexMap &m) const
	Common template method for all types. More...

template<typename T >
det::VManager::Status	GetDataInternal (const utl::Branch &topB, T &t, const std::string &prop, const std::string &name) const
	Overloaded version for the case when data is required without attribute information in the index map. More...

template<typename T >
det::VManager::Status	GetDataInternal (const utl::Branch &topB, std::list< T > &t, const std::string &componentName, const std::string &name) const
	Overloaded version for the case when data is required without attribute information in the index map. More...

	if (b &&i==N)

void	Initialize ()
	Some inits for the objects of this class, apart from those from VManager. More...

Static Private Member Functions
template<class Matcher >
static utl::Branch	FindMatchingBranch (const utl::Branch &parent, const std::string &compName, Matcher &matcher, bool isReportingErrors)
	Finds the matching branch among `parent` according to `id`. More...

Private Attributes
	b = b.GetChild(path[i])

return	false

unsigned int	i = 1

Static Private Attributes
template<typename T , std::size_t N>
static	bool
	Helper to complete the full-path look-up. More...

Detailed Description

template<class Info>
class det::XXMLManager< Info >

General Manager for reading detectors descriptions in XML files.

The template argument is supposed to have the following static fields:

kIdAtt Attribute tag used to identify a component within the XML files. Usually 'id'.
kManagerName This manager name. For instance, 'MCounterListXMLManager'.
kComponentIds Array of labels with which the ids from the each component are specified within the attribute map.
kComponentNames Array of names of the components with which the component are indicated within XMLs files in its nodes.
kDataRootPath Array of names of the elements to transverse for reaching where the actual data resides, starting from the root of the branch configured for this manager. It must be of length at least one (see below).
kModelsTag. Tag used for model description; if an empty string is constructed from this, no models are used.
kAllowMultiConfig. boolean value. When true multiple main branches are allowed, so as to have multiple configurations (the one being loaded depending on current configuration number). That's, the root tag (first element in kDataRootPath or kModelsRootPath) is looked-up twice:

First without attributes (so as to be the single root element).
Then, inside, with an attribute map having kIdAtt equals to the current configuration number. If none is found, then the look-up falls back to look for the one with a previous id (this gives some flexibility, and allows avoiding some repetitions). This may happen for data or model configuration.

When false, no attributes are taken into account and the root tag is assumed to be directly the branch configured for this manager (be it data or model).

Note that typically (due to XML constraints) the first element in both path is the same.

The configuration identifiers are whole numbers, which start in 1 and are incremented with the NextConfiguration method.

For example, say kDataRootPath[0] is "Config" and kIdAtt is "id", when true you'll have something like:

* <Config>
* <Config id="1">
*   <!-- 1st full Detector configuration underneath. -->
* </Config>
* <Config id="2">
*   <!-- 2nd full Detector configuration underneath. -->
* </Config>
* </Config>
*

and when false something like

* <Config>
*   <!-- Unique full Detector configuration underneath. -->
* </Config>
*

At last, when kAllowMultiConfig is true this class will derive publicly from det::detail::MultiConfigBase and when false from det::detail::MonoConfigBase.

The arrays define a 'partial order' indicating the hierarchy of components that this manager is intended to configure. That means that the attribute map is scanned in the order specified by these arrays, if for some kComponentIds[i] the is no value in the map that component is ignored. If there's one, then the current (being transversed) XML branch is scanned for a node named kComponentNames[i] with an attribute kIdAtt having the value as defined within the attribute map.

This class could be used to derive from it or as a simply typedef, after proper template-argument instantiation.

In all cases the length of the arrays is calculated with a template function that introspects the length of the array. As of the requirements to have at least one element in the arrays, it's ISO-C++ illegal to have zero-sized arrays. With the -pedantic option in g++ you can get (depending the particular usage): error: zero-size array ‘empty’ error: ISO C++ forbids zero-size array See ISO/IEC 14882 8.3.4(1) "Arrays": "In the declaration T D where D has the form D1 [constant-expresion_{opt}] ... If the constant-expresion is present, it shall be an integral constant expresion and its value shall be greater than zero."

Regarding the workings associated to the flag kAllowMultiConfig some alternatives had been considered:

Just avoid the flag, and simply add the functionality for every deriving class.
Put the flag, but create the fields & methods necessary in this class; which wouldn't be used in the case of mono configuration, tough they will be available for call (something that could be misleading) and increasing the footprint of those cases innecesarily (yeah, it's an unsigned int so far).
Use virtual functions and bury the "true" behaviour in a deriving class, refactoring the flag-depedant logic in a virtual method to be overriden (that's the gang-of-four template design pattern). At last, the choice made seems consistent with the previous rationale of working with template parameters; and doesn't need a subclass just to flag one of the desired behaviours; and doesn't provide some methods and fields which would be meaningless in some circumstances.

Regarding the initialization of templates and what can be used as argument see C++ Templates: The Complete Guide By David Vandevoorde, Nicolai M. Josuttis In particular the sections: 8.3.3 Nontype Arguments 4.3 Restrictions for Nontype Template Parameters

Author: Rodolfo Federico Gamarra

Date: 17 Dec 2008

Definition at line 182 of file XXMLManager.h.

Member Typedef Documentation

typedef std::map<std::string, std::string> det::VManager::IndexMap

inherited

Definition at line 133 of file VManager.h.

Member Enumeration Documentation

enum det::VManager::Status

inherited

Specifies success or (eventually) various possible failure modes.

Various failure modes to be specified (for example, failure to connect to db, faiure to find db record, failure to find table name, etc

Enumerator
eFound
eNotFound

Definition at line 127 of file VManager.h.

Constructor & Destructor Documentation

template<class Info >

det::XXMLManager< Info >::XXMLManager ( )

inline

Definition at line 190 of file XXMLManager.h.

References det::XXMLManager< Info >::Initialize().

template<class Info >

virtual det::XXMLManager< Info >::~XXMLManager ( )

inlinevirtual

Definition at line 191 of file XXMLManager.h.

Member Function Documentation

template<typename T >

void det::VManager::AddAvailability ( const std::string & component )

inlineprotectedinherited

Definition at line 347 of file VManager.h.

template<typename T >

static T det::VManager::FindComponent	(	const std::string &	componentName,
		const IndexMap &	componentIndex
	)

inlinestaticinherited

Definition at line 307 of file VManager.h.

References ERROR.

template<typename T , typename U >

static T det::VManager::FindComponent	(	const std::string &	componentName,
		const U &	defaultValue,
		const IndexMap &	componentIndex
	)

inlinestaticinherited

Definition at line 322 of file VManager.h.

void det::VManager::FindConfig ( const std::string & configLink )

protectedinherited

Locate the configuration file in CentralConfig and make a Reader for it.

Definition at line 25 of file VManager.cc.

References ERROR, and WARNING.

template<class Info >

template<class Matcher >

utl::Branch det::XXMLManager< Info >::FindMatchingBranch	(	const utl::Branch &	parent,
		const std::string &	compName,
		Matcher &	matcher,
		bool	isReportingErrors
	)

staticprivate

Finds the matching branch among parent according to id.

Returns: The matching one of the null-branch.

Todo:: This can be policied away. The double functionality should be polished a little to be refactor a function.

Definition at line 626 of file XXMLManager.h.

References utl::Branch::GetFirstChild(), utl::Branch::GetNextSibling(), det::XXMLManager< Info >::i, is(), and WARNING.

Referenced by det::XXMLManager< Info >::GetDataInternal(), and det::if().

template<class Info >

utl::Branch det::XXMLManager< Info >::FindModelBranch	(	const utl::Branch &	componentModels,
		const utl::Branch &	compBranch,
		const std::string &	name
	)		const

private

Helper function which retrieves the data branch that corresponds to the models specified in componentModels.

Parameters

componentModels	The branch with all the models that apply to the component.
compBranch	The branch for the specific component.
name	The name of the component.

Todo:: This may be put in a policy.

Definition at line 785 of file XXMLManager.h.

References RdGeoCeLDFFitter::a, det::XXMLManager< Info >::FindRoot(), utl::Branch::GetAttributes(), utl::Branch::GetChild(), utl::Branch::GetData(), utl::Branch::GetFirstChild(), utl::Branch::GetNextSibling(), det::VManager::IsReportingErrors(), and WARNING.

Referenced by det::if().

template<class Info >

template<typename T , std::size_t N>

utl::Branch det::XXMLManager< Info >::FindRoot ( const T(&) path[N] ) const

private

Helper function from transversal from the configured branch until the desired roots.

Parameters

path	The path of tags to be searched.

XXX Of course the path could be given as a template parameter instead.

Definition at line 579 of file XXMLManager.h.

References det::XXMLManager< Info >::b, det::VManager::fBranch, utl::Branch::GetName(), result, and WARNING.

Referenced by det::XXMLManager< Info >::FindModelBranch().

virtual Status det::VManager::GetData	(	double &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

Implemented in det::ManagerRegister, fdet::FdUpTimeFileManager, fdet::FdUpTimeSQLManager, and fwk::TestSQLManager.

Referenced by atm::AerosolDB::AerosolDB(), atm::MolecularZone::CacheLayers(), fdet::Telescope::CachePixelCloudData(), atm::VZone::CacheSlices(), atm::AerosolDB::CacheZones(), atm::LidarDB::CacheZones(), atm::MolecularDB::CacheZones(), cdet::CDetector::FetchStationGroups(), atm::GOESDB::GetAllCloudProbabilities(), rdet::AntennaType::GetAntennaData(), fdet::Camera::GetCameraChannelData(), fdet::Camera::GetCameraData(), fdet::Camera::GetCameraDataDiaphragm(), fdet::Camera::GetCameraPixelData(), fdet::Channel::GetChannelData(), rdet::Channel::GetChannelData(), atm::LidarZone::GetCloudData(), fdet::Corrector::GetCorrectorData(), rdet::RDetector::GetDetectorData(), fdet::Diaphragm::GetDiaphragmData(), fdet::Eye::GetEyeData(), fdet::FDetector::GetFDetectorData(), fdet::Filter::GetFilterData(), fdet::FDetector::GetFullEyeList(), rdet::RDetector::GetFullStationList(), cdet::CDetector::GetFullStationList(), atm::VZoneSlice::GetLambdaSliceData(), atm::MolecularLayer::GetLayerData(), fdet::Mirror::GetMirrorData(), fdet::MirrorSegment::GetMirrorSegmentData(), fdet::Pixel::GetPixelData(), fdet::Pixel::GetPixelDataDiaphragm(), cdet::Station::GetRPCData(), sdet::Scintillator::GetScintillatorData(), atm::VZoneSlice::GetSliceData(), rdet::RSimulationStationListManager::GetSourceType(), cdet::CDetector::GetStation(), rdet::Station::GetStationData(), cdet::Station::GetStationData(), fdet::Telescope::GetTelescopeData(), atm::GOESDB::HasData(), atm::LidarDB::LidarDB(), atm::LidarZone::LidarZone(), atm::MolecularDB::MolecularDB(), atm::MolecularZone::MolecularZone(), rdet::Station::SetListOfChannelIds(), and det::ComponentGroup< P, C, Creator, ManagerProvider >::Update().

virtual Status det::VManager::GetData	(	int &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

Implemented in det::ManagerRegister, fdet::FdUpTimeFileManager, and fwk::TestSQLManager.

virtual Status det::VManager::GetData	(	bool &	,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const VManager::IndexMap &
	)		const

inlinevirtualinherited

Definition at line 241 of file VManager.h.

virtual Status det::VManager::GetData	(	std::string &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

Implemented in det::ManagerRegister, and fwk::TestSQLManager.

virtual Status det::VManager::GetData	(	std::vector< double > &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

Implemented in det::ManagerRegister, and fwk::TestSQLManager.

virtual Status det::VManager::GetData	(	std::vector< int > &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

Implemented in det::ManagerRegister, and fwk::TestSQLManager.

virtual Status det::VManager::GetData	(	std::vector< std::string > &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

Implemented in det::ManagerRegister, and fwk::TestSQLManager.

virtual Status det::VManager::GetData	(	std::vector< bool > &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

Implemented in det::ManagerRegister, and fwk::TestSQLManager.

virtual Status det::VManager::GetData	(	std::list< double > &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

Implemented in det::ManagerRegister, and fwk::TestSQLManager.

virtual Status det::VManager::GetData	(	std::list< int > &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

Implemented in det::ManagerRegister, and fwk::TestSQLManager.

virtual Status det::VManager::GetData	(	std::list< std::string > &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

Implemented in det::ManagerRegister, and fwk::TestSQLManager.

virtual Status det::VManager::GetData	(	std::list< std::pair< int, int >> &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

virtual Status det::VManager::GetData	(	utl::TabulatedFunction &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

Implemented in det::ManagerRegister, sdet::SModelsXMLManager, cdet::CModelsXMLManager, cdet::COverrideXMLManager, fdet::FTelescopeListXMLManager, and fwk::TestSQLManager.

virtual Status det::VManager::GetData	(	std::map< int, utl::TabulatedFunction > &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

Implemented in det::ManagerRegister, and fwk::TestSQLManager.

virtual Status det::VManager::GetData	(	utl::TabulatedFunctionComplexLgAmpPhase &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

Implemented in det::ManagerRegister, and fwk::TestSQLManager.

virtual Status det::VManager::GetData	(	std::map< std::string, double > &	returnData,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)		const

pure virtualinherited

Implemented in det::ManagerRegister, and fwk::TestSQLManager.

virtual Status det::VManager::GetData	(	std::vector< std::vector< int >> &	,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const VManager::IndexMap &
	)		const

inlinevirtualinherited

Definition at line 255 of file VManager.h.

virtual Status det::VManager::GetData	(	std::map< unsigned int, int > &	,
		const std::string &	componentProperty,
		const std::string &	componentName,
		const VManager::IndexMap &
	)		const

inlinevirtualinherited

Definition at line 256 of file VManager.h.

Status det::VManager::GetData	(	Handle &	returnData,
		const std::string &	component,
		const std::string &	property,
		const IndexMap &	index = `IndexMap()`
	)		const

inlineinherited

new data accessor

Any property of the detector is supposed to be accessible through this interface. Interface specifies the name of the property and the component to which it belongs, together with a map of (index name, index value) identifying the specific instance of the component. For example, to request the quantum efficiency of PMT 3 in station 57, one would have

component = "PMT"
property = "quantumEfficiency"
index["stationId"] = "57"
index["PMT"] = "3"

Definition at line 275 of file VManager.h.

References det::VManager::CheckedGetData().

template<class Info >

template<typename T >

det::VManager::Status det::XXMLManager< Info >::GetDataInternal	(	T &	t,
		const std::string &	prop,
		const std::string &	name,
		const det::VManager::IndexMap &	m
	)		const

private

Common template method for all types.

Referenced by det::if().

template<class Info >

template<typename T >

det::VManager::Status det::XXMLManager< Info >::GetDataInternal	(	const utl::Branch &	topB,
		T &	t,
		const std::string &	prop,
		const std::string &	name
	)		const

private

Overloaded version for the case when data is required without attribute information in the index map.

In this case the datum is assumed to be a single value of the template argument type.

Definition at line 896 of file XXMLManager.h.

References det::VManager::eNotFound, and ERROR.

template<class Info >

template<typename T >

det::VManager::Status det::XXMLManager< Info >::GetDataInternal	(	const utl::Branch &	topB,
		std::list< T > &	t,
		const std::string &	componentName,
		const std::string &	name
	)		const

private

Overloaded version for the case when data is required without attribute information in the index map.

In this case the datum is assumed to be a std::list wrapping the template argument type. In this case the "property name" is in fact the name of a componet in the hierarchy; whose lists is desired to be retrieved.

Definition at line 912 of file XXMLManager.h.

References det::VManager::eFound, det::VManager::eNotFound, det::XXMLManager< Info >::FindMatchingBranch(), utl::Branch::GetAttributes(), det::XXMLManager< Info >::AccumulatorMatcher< Container >::IsModified(), det::VManager::IsReportingErrors(), and WARNING.

const std::string& det::VManager::GetName ( ) const

inlineinherited

Definition at line 330 of file VManager.h.

References det::VManager::fName.

Referenced by det::VManager::CheckedGetData(), det::ManagerRegister::GenericGetData(), det::ManagerRegister::GetManagerData(), and det::ManagerBuilderRegisterEntry::ManagerBuilderRegisterEntry().

template<class Info >

det::XXMLManager< Info >::if ( b && i = = N )

inlineprivate

Definition at line 262 of file XXMLManager.h.

References det::XXMLManager< Info >::b.

void det::VManager::Init ( const std::string & configLink )

virtualinherited

Manager Initialization. configLink is the CentralConfig hook for the configuration file.

This method instructs the manager to initialize itself. In the case of a manager which fetches data from an XML file, configuration involves getting the link to the appropriate configuration file from the CentralConfig and parsing the file to create a DOM or some other representation of the data in memory. For a manager which uses a MySQL database, configuration involves getting the link to the appropriate configuration file from the CentralConfig, then using the instructions in that file to establish a connection to the relevant database.

Note that one might initially think it makes more sense to just initialize managers automatically in their constructors so that developers don't need to remember to explicitly invoke the Init() method. (In fact it worked like this in an earlier version.) The rationale for not having automatic configuration via the constructors is that the configuration can now be delayed until the time that the user specifically requests a particular manager, rather than doing it at the time that the Detector object constructs the Managers. For example, when the user declares his set of desired managers in the ManagerRegister configuration, only those particular Managers will get initialized (though all available Managers will be constructed!). Consider someone who wants to test only the Fluorescence portion of the detector. By requiring explicit invocation of Init() one avoids providing hooks to all the SD related configuration files and databases which aren't even going to be used. Though the SD Managers will be constructed, no attempt will be made to Initialize them until the user specifically requests them by, for example, specifying them in the configuration file for the appropriate ManagerRegister.

Reimplemented in fdet::FdUpTimeFileManager, sdet::T2LifeROOTFileManager, sdet::T2LifeFileManager, rdet::RChannelSQLManager, fdet::FdUpTimeSQLManager, rdet::RBadStationSQLManager, fdet::FdChannelMappingManager, det::ManagerRegister, det::VSQLManager, det::VSQLManager, rdet::RBeaconSQLManager, sdet::SDenseStationListXMLManager, rdet::RModelsXMLManager, rdet::RSimulationStationListManager, sdet::T2StatFileManager, fdet::EventPointingManager, fdet::FCalibSQLManager, rdet::RAntennaTypeXMLManager, rdet::RHardwareProfileXMLManager, rdet::MonitoringSQLManager, sdet::SModelsXMLManager, fdet::FModelsXMLManager, cdet::CModelsXMLManager, rdet::RStationListSQLManager, fdet::FOpticalEfficiencyLossSQLManager, cdet::CStationListXMLManager, rdet::RStationListXMLManager, fdet::FFixCalibManager, fdet::FSimulationCalibManager, sdet::EventStationPositionsManager, sdet::SStationListSQLManager, sdet::SStationListXMLManager, fdet::FFixOpticalEfficiencyLossManager, fdet::FParametricOpticalEfficiencyLossManager, and fdet::FdAlwaysUpManager.

Definition at line 16 of file VManager.cc.

Referenced by sdet::T2LifeFileManager::Init(), and det::ManagerRegister::InterpretXML().

template<class Info >

void det::XXMLManager< Info >::Initialize ( )

private

Some inits for the objects of this class, apart from those from VManager.

Todo:: Fill a set a configurable property tags, so as to have a quick 'not found' if the query goes to a non-sensical property name, or to do some prefetching (these two conditions can be, of course, be treated as two differebt issues).

Definition at line 559 of file XXMLManager.h.

Referenced by det::XXMLManager< Info >::XXMLManager().

bool det::VManager::IsInitialized ( ) const

inlineinherited

Definition at line 214 of file VManager.h.

References det::VManager::fIsInitialized.

Referenced by det::ManagerRegister::InterpretXML().

bool det::VManager::IsReportingErrors ( ) const

inlineprotectedinherited

Definition at line 338 of file VManager.h.

References det::VManager::fReportingErrors.

Referenced by det::VManager::CheckedGetData(), det::XXMLManager< Info >::FindModelBranch(), det::XXMLManager< Info >::GetDataInternal(), and det::if().

string det::VManager::NotImplementedMessage	(	const std::string &	type,
		const std::string &	componentProperty,
		const std::string &	componentName
	)		const

protectedinherited

Definition at line 47 of file VManager.cc.

string det::VManager::QueryInfoMessage	(	const Handle &	returnData,
		const std::string &	component
	)

staticinherited

Definition at line 108 of file VManager.cc.

References det::VManager::Handle::GetTypeIdName().

Referenced by det::VManager::CheckedGetData(), det::ManagerRegister::GenericGetData(), atm::AAerosolSQLManager::GetDBResFundamental(), atm::AAerosolSQLManager::GetDBResVector(), det::ManagerRegister::GetManagerData(), fdet::Pixel::GetPixelData(), fdet::Pixel::GetPixelDataDiaphragm(), and det::if().

string det::VManager::QueryInfoMessage	(	const Handle &	returnData,
		const std::string &	component,
		const std::string &	property,
		const IndexMap &	index
	)

staticinherited

Definition at line 119 of file VManager.cc.

static std::string det::VManager::QueryInfoMessage	(	const std::string &	componentProperty,
		const std::string &	componentName
	)

inlinestaticinherited

Definition at line 294 of file VManager.h.

string det::VManager::QueryInfoMessage	(	const std::string &	componentProperty,
		const std::string &	componentName,
		const IndexMap &	componentIndex
	)

staticinherited

Definition at line 58 of file VManager.cc.

void det::VManager::SetName ( const std::string & name )

inlineinherited

Definition at line 332 of file VManager.h.

References det::VManager::fName.

Referenced by det::ManagerRegister::InterpretXML().

void det::VManager::SetReportingErrors ( const bool flag = true )

inlineinherited

Generic data accessors.

Any property of the detector is supposed to be accessible through this interface. Interface specifies the name of the property and the component to which it belongs, together with a map of (index name, index value) identifying the specific instance of the component. For example, to request the quantum efficiency of PMT 3 in station 57, one would have

componentProperty = "quantumEfficiency"
componentName = "PMT"
componentIndex["stationId"] = "57"
componentIndex["PMT"] = "3"

Definition at line 231 of file VManager.h.

References det::VManager::fReportingErrors.

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_CALL	(	GetDataInternal	,
		double
	)

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_CALL	(	GetDataInternal	,
		int
	)

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_CALL	(	GetDataInternal	,
		std::string
	)

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_CALL	(	GetDataInternal	,
		std::list< int >
	)

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_CALL	(	GetDataInternal	,
		std::vector< double >
	)

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_CALL	(	GetDataInternal	,
		std::vector< int >
	)

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_CALL	(	GetDataInternal	,
		utl::TabulatedFunction
	)

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_DENIED ( std::vector< std::string > )

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_DENIED ( std::list< double > )

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_DENIED ( std::list< std::string > )

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_DENIED ( std::list< std::pair< int, int > > )

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_DENIED ( std::map< int, utl::TabulatedFunction > )

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_DENIED ( std::map< std::string, double > )

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_DENIED ( std::vector< std::vector< int > > )

template<class Info >

det::XXMLManager< Info >::VMANAGER_GETDATA_DENIED ( std::vector< bool > )

Member Data Documentation

template<class Info >

det::XXMLManager< Info >::b = b.GetChild(path[i])

private

Definition at line 257 of file XXMLManager.h.

Referenced by det::XXMLManager< Info >::FindRoot(), det::XXMLManager< Info >::if(), and det::XXMLManager< Info >::IdMatcher::operator()().

template<class Info >

template<typename T , std::size_t N>

det::XXMLManager< Info >::bool

staticprivate

Initial value:

{

utl::Branch b = src

Helper to complete the full-path look-up.

It's used from within the helper struct ConfigHandler.

Parameters

dest	Output parameter.
src	Where to start looking (assumed to already match path[0]).
path	The path to check.

Returns: true if there was a match, and so dest was modified.

Definition at line 251 of file XXMLManager.h.

template<class Info >

return det::XXMLManager< Info >::false

private

Definition at line 266 of file XXMLManager.h.

std::set<std::string> det::VManager::fAvailableComponents

protectedinherited

Definition at line 362 of file VManager.h.

Referenced by atm::AAerosolSQLManager::AAerosolSQLManager(), atm::ACloudSQLManager::ACloudSQLManager(), atm::ALidarSQLManager::ALidarSQLManager(), atm::ACloudSQLManager::GetDBResFundamental(), atm::ALidarSQLManager::GetDBResFundamental(), atm::AAerosolSQLManager::GetDBResFundamental(), atm::ALidarSQLManager::GetDBResVector(), and atm::AAerosolSQLManager::GetDBResVector().

utl::Branch det::VManager::fBranch

protectedinherited

Definition at line 360 of file VManager.h.

Referenced by det::XXMLManager< Info >::FindRoot(), det::XXMLManager< Info >::ConfigHandler< AllowMultiConfig, dummy >::for(), and det::XXMLManager< Info >::ConfigHandler< false, dummy >::Handle().

bool det::VManager::fIsInitialized = false

mutableprotectedinherited

Definition at line 354 of file VManager.h.

Referenced by det::VManager::IsInitialized().

bool det::VManager::fReportingErrors = false

protectedinherited

Definition at line 356 of file VManager.h.

Referenced by det::VManager::IsReportingErrors(), and det::VManager::SetReportingErrors().

template<class Info >

unsigned int det::XXMLManager< Info >::i = 1

private

Definition at line 254 of file XXMLManager.h.

Referenced by det::XXMLManager< Info >::FindMatchingBranch(), det::if(), and det::XXMLManager< Info >::AccumulatorMatcher< Container >::operator()().

The documentation for this class was generated from the following file:

XXMLManager.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

template<class Info> class det::XXMLManager< Info >

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Info>
class det::XXMLManager< Info >
