RdBeamFormer::RdWaveModel Class Reference

This is the supporting utility to calculate time delays relative to the origin according to the chosen model of the wavefront. Plane, spherical, conical and hyperbolic wavefront models are available. More...

#include <RdWaveModel.h>

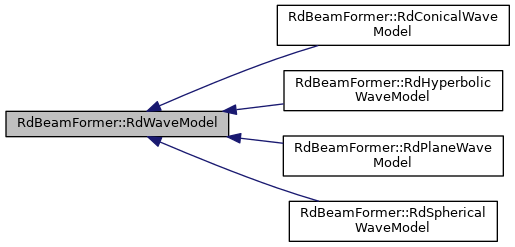

Inheritance diagram for RdBeamFormer::RdWaveModel:

Inheritance graph

Public Member Functions
virtual double	delay (const utl::Point antennaPos, const evt::ShowerRRecData &rrec) const =0

	RdWaveModel ()

void	setOrigin (utl::Point origin)

void	setSkyPos (utl::Point skyPos)

	~RdWaveModel ()

Protected Attributes
utl::Point	origin

utl::Point	skyPos

Detailed Description

This is the supporting utility to calculate time delays relative to the origin according to the chosen model of the wavefront. Plane, spherical, conical and hyperbolic wavefront models are available.

Definition at line 32 of file RdBeamFormer/RdWaveModel.h.

Constructor & Destructor Documentation

RdBeamFormer::RdWaveModel::RdWaveModel ( )

Definition at line 31 of file RdBeamFormer/RdWaveModel.cc.

RdBeamFormer::RdWaveModel::~RdWaveModel ( )

Definition at line 35 of file RdBeamFormer/RdWaveModel.cc.

Member Function Documentation

virtual double RdBeamFormer::RdWaveModel::delay	(	const utl::Point	antennaPos,
		const evt::ShowerRRecData &	rrec
	)		const

pure virtual

Implemented in RdBeamFormer::RdHyperbolicWaveModel, RdBeamFormer::RdConicalWaveModel, RdBeamFormer::RdSphericalWaveModel, and RdBeamFormer::RdPlaneWaveModel.

Referenced by RdBeamFormer::RdBeamFormer::shiftTraces().

void RdBeamFormer::RdWaveModel::setOrigin ( utl::Point origin )

Definition at line 43 of file RdBeamFormer/RdWaveModel.cc.

Referenced by RdBeamFormer::RdBeamFormer::shiftTraces().

void RdBeamFormer::RdWaveModel::setSkyPos ( utl::Point skyPos )

Definition at line 47 of file RdBeamFormer/RdWaveModel.cc.

Referenced by RdBeamFormer::RdBeamFormer::shiftTraces().

Member Data Documentation

utl::Point RdBeamFormer::RdWaveModel::origin

protected

Definition at line 46 of file RdBeamFormer/RdWaveModel.h.

utl::Point RdBeamFormer::RdWaveModel::skyPos

protected

Definition at line 47 of file RdBeamFormer/RdWaveModel.h.

The documentation for this class was generated from the following files:
