Common interface for functors performing the muon LDF fitting. More...

#include <MdLDFFinderAG/VMinMethodFunctor.h>

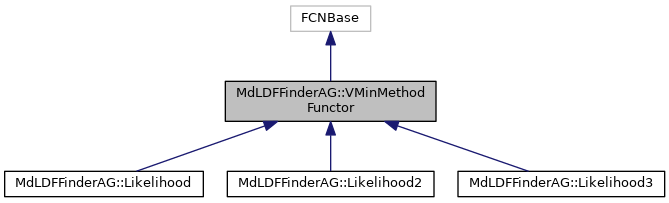

Inheritance diagram for MdLDFFinderAG::VMinMethodFunctor:

Public Types
enum	FitParameter { eShowerSize = 0, eBeta = 1, eCoreX = 2, eCoreY = 3 }

Public Member Functions
double	DistanceInShowerPlane (const utl::Vector v) const

utl::Vector	GetAxis () const

double	GetZcore () const

ROOT::Minuit2::FunctionMinimum	Minimize (std::vector< double > &par, std::vector< double > &epar, const std::vector< bool > &fpar) const

virtual double	operator() (const std::vector< double > &par) const =0
	Perform the actual count. More...

void	SetAxis (utl::Vector axis)

void	SetCandidateCounterList (CounterList cl)

void	SetSilentCounterList (CounterList cl)

void	SetZcore (double z)

virtual double	Up () const =0

virtual	~VMinMethodFunctor ()
	Meant to be used as base class: virtual destructor. More...

Protected Member Functions
double	CalculateSilentLikelihood (const std::vector< double > &par) const
	Likelihood of silent counters. More...

Protected Attributes
double	cosTheta

CounterList	fCandidateCounters

const VLDFFunctor *	fLDFunction

CounterList	fSilentCounters

unsigned int	fSilentLimit

bool	fUseSilent

utl::Vector	rAxis

utl::CoordinateSystemPtr	siteCS

double	zcore

Detailed Description

Common interface for functors performing the muon LDF fitting.

Author: Rodolfo Federico Gamarra; F. Sanchez

Date: 12 Sep 2009; 27 Oct 2011

Definition at line 53 of file VMinMethodFunctor.h.

Member Enumeration Documentation

enum MdLDFFinderAG::VMinMethodFunctor::FitParameter

Enumerator
eShowerSize
eBeta
eCoreX
eCoreY

Definition at line 57 of file VMinMethodFunctor.h.

Constructor & Destructor Documentation

MdLDFFinderAG::VMinMethodFunctor::~VMinMethodFunctor ( )

virtual

Meant to be used as base class: virtual destructor.

Definition at line 12 of file VMinMethodFunctor.cc.

Member Function Documentation

double MdLDFFinderAG::VMinMethodFunctor::CalculateSilentLikelihood ( const std::vector< double > & par ) const

protected

Likelihood of silent counters.

Counters are triggered by a partner SD station. A counter is then silent because the signal in the SD station is "weak". We model this "weakness" as few muons.

Definition at line 130 of file VMinMethodFunctor.cc.

References DistanceInShowerPlane(), fSilentCounters, fSilentLimit, mdet::MDetector::GetCounter(), mevt::Counter::GetId(), det::MPositionable< Config >::GetPosition(), siteCS, and zcore.

Referenced by MdLDFFinderAG::Likelihood2::operator()(), MdLDFFinderAG::Likelihood3::operator()(), and MdLDFFinderAG::Likelihood::operator()().

double MdLDFFinderAG::VMinMethodFunctor::DistanceInShowerPlane ( const utl::Vector v ) const

inline

Definition at line 86 of file VMinMethodFunctor.h.

References utl::cross(), utl::AxialVector::GetMag(), and rAxis.

Referenced by MdLDFFinderAG::Likelihood2::CalculateCandidateLikelihood(), MdLDFFinderAG::Likelihood3::CalculateCandidateLikelihood(), MdLDFFinderAG::Likelihood::CalculateCandidateLikelihood(), and CalculateSilentLikelihood().

utl::Vector MdLDFFinderAG::VMinMethodFunctor::GetAxis ( ) const

inline

Definition at line 84 of file VMinMethodFunctor.h.

References rAxis.

double MdLDFFinderAG::VMinMethodFunctor::GetZcore ( ) const

inline

Definition at line 81 of file VMinMethodFunctor.h.

References zcore.

ROOT::Minuit2::FunctionMinimum MdLDFFinderAG::VMinMethodFunctor::Minimize	(	std::vector< double > &	par,
		std::vector< double > &	epar,
		const std::vector< bool > &	fpar
	)		const
