A collection of TimeDistribution<T>,which provides methods to access different sources. More...

#include <MultiTimeDistribution.h>

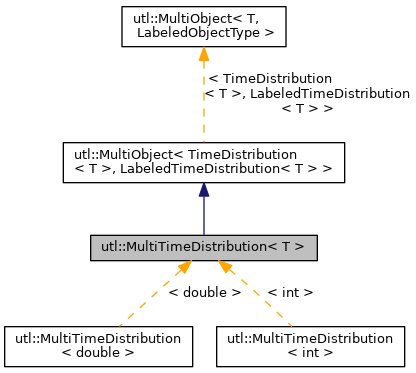

Inheritance diagram for utl::MultiTimeDistribution< T >:

Public Types
typedef boost::transform_iterator < LabeledObjectFunctor, typename MultiObjectContainer::const_iterator, LabeledTimeDistribution< T > >	ConstIterator

typedef boost::transform_iterator < LabeledObjectFunctor, typename MultiObjectContainer::iterator, LabeledTimeDistribution< T > >	Iterator

typedef utl::detail::LabeledObjectFunctor < TimeDistribution< T > , LabeledTimeDistribution< T > >	LabeledObjectFunctor

typedef std::map< int, TimeDistribution< T > * >	MultiObjectContainer

Public Member Functions
void	AddTimeDistribution (const double binSize, const int label)

void	AddTimeDistribution (const TimeDistribution< T > &td, const int label)

Iterator	Begin ()

ConstIterator	Begin () const

void	Clear ()

Iterator	End ()

ConstIterator	End () const

unsigned int	GetNLabels () const

TimeDistribution< T > &	GetTimeDistribution (const int label=0)
	Returns the trace for /par source. More...

const TimeDistribution< T > &	GetTimeDistribution (const int label=0) const

bool	HasLabel (const int label) const

	operator bool () const

bool	operator!= (const MultiObject &mobj) const

bool	operator== (const MultiObject &mobj) const

Protected Member Functions
void	AddObject (const TimeDistribution< T > &obj, const int label)
	add with deep copy of the object More...

void	AddObject (TimeDistribution< T > *const obj, const int label)
	add that takes the ownership More...

TimeDistribution< T > &	GetObject (const int label=0)

const TimeDistribution< T > &	GetObject (const int label=0) const

void	RemoveObject (const int label)

Detailed Description

template<typename T>
class utl::MultiTimeDistribution< T >

A collection of TimeDistribution<T>,which provides methods to access different sources.

Author: Stefano Argiro', Darko Veberic

Date: Jan 2003; 14 Nov 2005 revision

MultiTimeDistribution::GetTimeDistribution(sevt::StationConstants::eElectron) gives the electron component,
MultiTimeDistribution::GetTimeDistribution(sevt::StationConstants::eMuon) gives the muon component
MultiTimeDistribution::GetTimeDistribution() or
MultiTimeDistribution::GetTimeDistribution(sevt::StationConstants::eTotal) gives the total

For the FD case examples are:

MultiTimeDistribution::GetTimeDistribution(fevt::FdConstants::eFluorDirect)
MultiTimeDistribution::GetTimeDistribution(fevt::FdConstants::eCherRayleighScattered)

Parameters

T	is the type stored in the TimeDistribution (double, int etc)

Warning: : this class is for developer convenience, not meant for the average user

Definition at line 54 of file MultiTimeDistribution.h.

Member Typedef Documentation

typedef boost::transform_iterator<LabeledObjectFunctor, typename MultiObjectContainer::const_iterator, LabeledTimeDistribution< T > > utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::ConstIterator

inherited

Definition at line 81 of file MultiObject.h.

typedef boost::transform_iterator<LabeledObjectFunctor, typename MultiObjectContainer::iterator, LabeledTimeDistribution< T > > utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::Iterator

inherited

Definition at line 78 of file MultiObject.h.

typedef utl::detail::LabeledObjectFunctor<TimeDistribution< T > , LabeledTimeDistribution< T > > utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::LabeledObjectFunctor

inherited

Definition at line 75 of file MultiObject.h.

typedef std::map<int, TimeDistribution< T > *> utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::MultiObjectContainer

inherited

Definition at line 74 of file MultiObject.h.

Member Function Documentation

void utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::AddObject	(	const TimeDistribution< T > &	obj,
		const int	label
	)

inlineprotectedinherited

add with deep copy of the object

Definition at line 128 of file MultiObject.h.

Referenced by utl::MultiTimeDistribution< int >::AddTimeDistribution().

void utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::AddObject	(	TimeDistribution< T > *const	obj,
		const int	label
	)

protectedinherited

add that takes the ownership

template<typename T>

void utl::MultiTimeDistribution< T >::AddTimeDistribution	(	const double	binSize,
		const int	label
	)

inline

Creates a new TimeDistribution of size /par size and binning /par binsize and assign source /par source

Definition at line 66 of file MultiTimeDistribution.h.

Referenced by io::MultiTimeDistribution_ROOT< T >::operator>>(), and testTimeDistribution::testMultiTimeDistribution().

template<typename T>

void utl::MultiTimeDistribution< T >::AddTimeDistribution	(	const TimeDistribution< T > &	td,
		const int	label
	)

inline

Copies trace in the internal list and assign source /par source -The original can be deleted

Definition at line 71 of file MultiTimeDistribution.h.

Iterator utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::Begin ( )

inlineinherited

Definition at line 83 of file MultiObject.h.

ConstIterator utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::Begin ( ) const

inlineinherited

Definition at line 84 of file MultiObject.h.

void utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::Clear ( )

inherited

Iterator utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::End ( )

inlineinherited

Definition at line 85 of file MultiObject.h.

ConstIterator utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::End ( ) const

inlineinherited

Definition at line 86 of file MultiObject.h.

unsigned int utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::GetNLabels ( ) const

inlineinherited

Definition at line 89 of file MultiObject.h.

TimeDistribution< T > & utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::GetObject ( const int label = 0 )

protectedinherited

Referenced by utl::MultiTimeDistribution< int >::GetTimeDistribution().

const TimeDistribution< T > & utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::GetObject ( const int label = 0 ) const

protectedinherited

template<typename T>

TimeDistribution<T>& utl::MultiTimeDistribution< T >::GetTimeDistribution ( const int label = 0 )

inline

Returns the trace for /par source.

Definition at line 59 of file MultiTimeDistribution.h.

Referenced by sevt::PMTSimData::GetBaseSignal(), sevt::PMTSimData::GetFADCTrace(), sevt::PMTSimData::GetFADCTraceD(), sevt::PMTSimData::GetFilterSignal(), sevt::PMTSimData::GetPETimeDistribution(), and testTimeDistribution::testMultiTimeDistribution().

template<typename T>

const TimeDistribution<T>& utl::MultiTimeDistribution< T >::GetTimeDistribution ( const int label = 0 ) const

inline

Definition at line 61 of file MultiTimeDistribution.h.

bool utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::HasLabel ( const int label ) const

inlineinherited

Definition at line 91 of file MultiObject.h.

utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::operator bool ( ) const

inlineexplicitinherited

Definition at line 99 of file MultiObject.h.

bool utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::operator!= ( const MultiObject< TimeDistribution< T >, LabeledTimeDistribution< T > > & mobj ) const

inlineinherited

Definition at line 96 of file MultiObject.h.

bool utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::operator== ( const MultiObject< TimeDistribution< T >, LabeledTimeDistribution< T > > & mobj ) const

inherited

void utl::MultiObject< TimeDistribution< T > , LabeledTimeDistribution< T > >::RemoveObject ( const int label )

protectedinherited

The documentation for this class was generated from the following file:

MultiTimeDistribution.h
